- 24 -

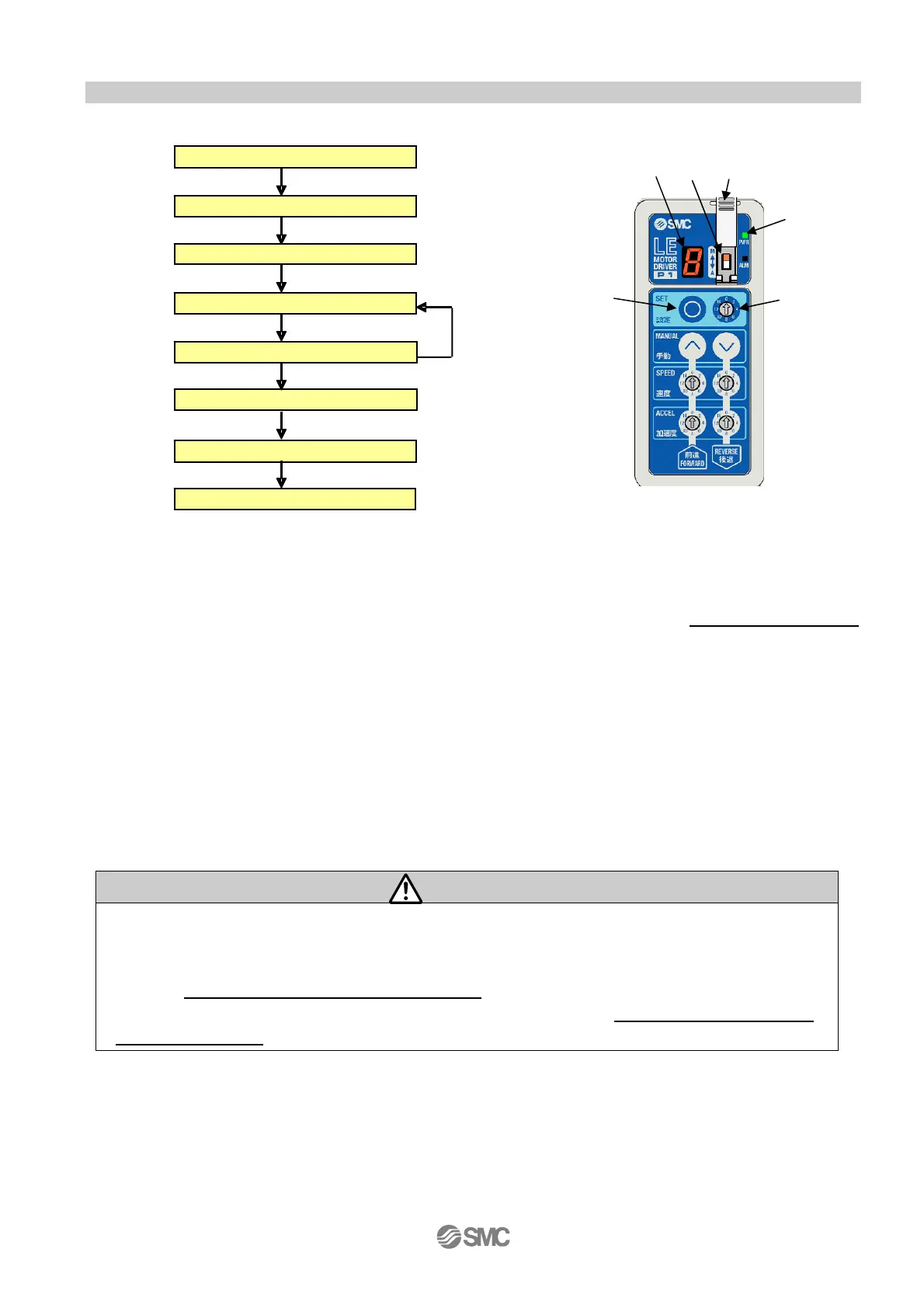

7.1 Setting procedure
Follow the procedure below for setting.
(1)Supply of power
Apply 24VDC to the power supply for the power line and the signal line. After applying the power,
confirm that the power supply LED
○
a lights green (=Servo ON). Refer to 8.5 Servo ON (P.43)
if the power supply LED
○
a flashes green.
(2) Changes to Manual mode
Switch the controller mode switch
○
e to manual mode (M). In manual mode, the 7-segment LED
○
f indicates the value of the position switch
○
h with high speed flashing.
(3) Return to origin position
Confirm that the 7-segment LED
○
f display is changed to "F" by setting the position switch
○
h
to "15", then press the set button
○
g to start the return to origin. When the return to origin is
completed, the display of the 7-segment LED
○
f changes changes from flashing to solid.
Caution
● If you perform return to origin before the servo is turned on (Power supply LED
○
a lights up in
green) an alarm will be generated. Perform the return to origin after confirming that the servo is
turned on.
● Refer to 8.1 Returning to origin position(P.
39) for details.
● The direction of return to home depends on the actuator. Refer to 10. I
nitial setting value
per actuator (P.48).
(1)Supply of power
(
2
)
Chan
g
es to Manual mode
(4)Setting of position
(5)Setting of operation method
(6)Test run
(7)Setting speed / acceleration
(8)Setting completed
(3)Return to origin position
Repeat the
same
procedure
for all points
you would
like to set.
○
f
○
g
○
h
○
e
○
c
○
a
