SMC Networks LECP1 Series User Manual

- 36 -

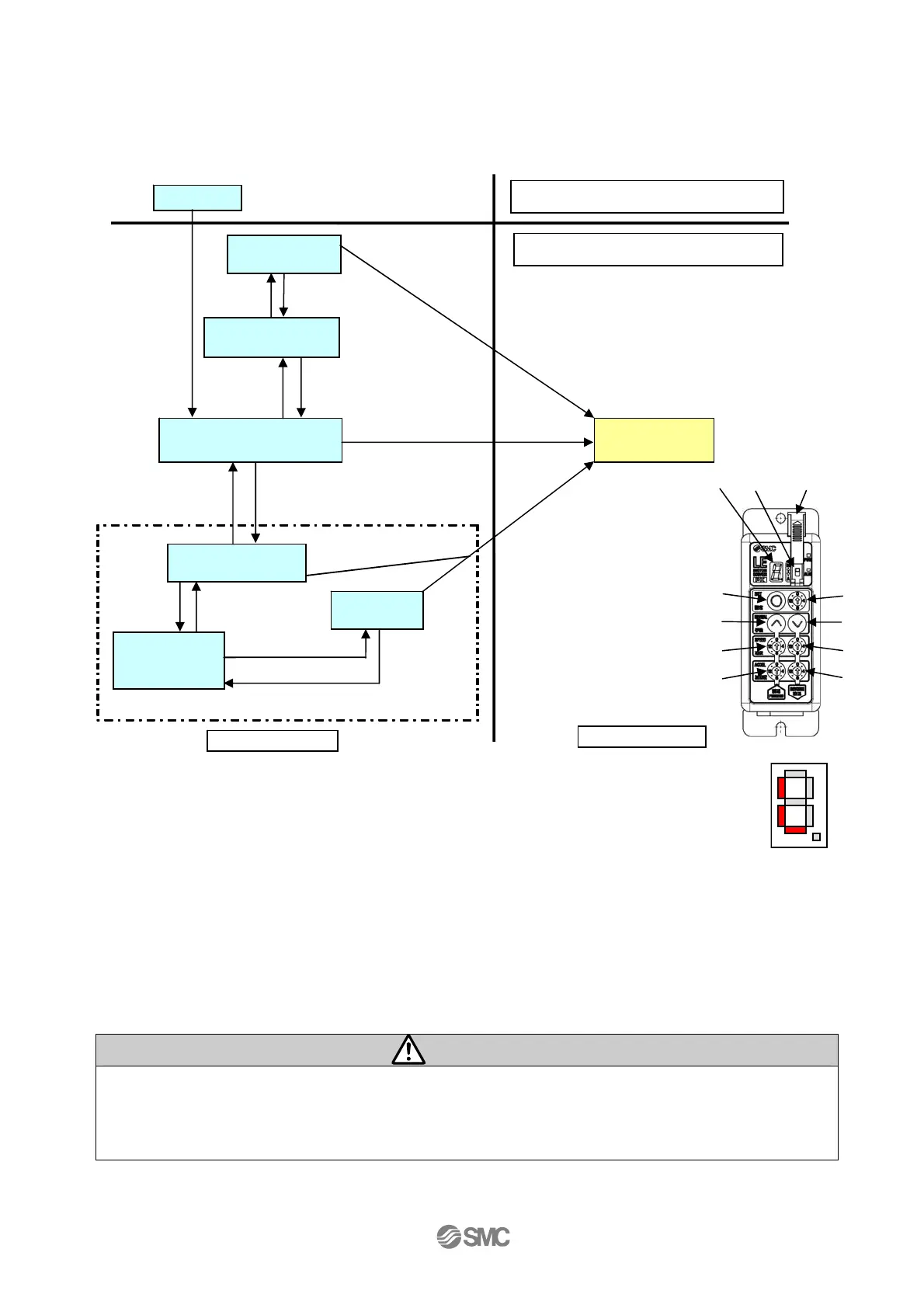

(B) Auto mode after return to origin position
The status of the auto mode after return to origin position is shown below. At auto mode, only the
operation command such as I/O from PLC is accepted. Basically, position, operation method, speed
and acceleration cannot be adjusted in auto mode.
Auto mode is presuming the operation by I/O from PLC. If you use buttons or
switches other than set button
○
g for releasing the alarm, 7-segment LED
○
f
indicates "L".
When the status is moved to speed adjustment, followings items are become
different from normal operation.
(1)More dots of 7-segment LED
○
f indication than normal operation.
(2)Speed and acceleration adjustment become available temporarily.
(3)When no operation is made for 3 min. for all buttons and switches, operation reverts back to
normal mode.
Caution
●In auto mode, changing the speed, acceleration switch values which are set by
○
k to
○
n do
not take effect except during the speed adjustment status. If returning to auto mode after
changing to manual mode, the value of the switch affects the operation.
●Close the cover c after the switching of the mode to avoid unexpected mode change.
Waiting
Auto mode
Stops at set
position
Waiting for
speed adjustment
Press forward and backward
button of manual button
simultaneously for 3sec.
PLC
commands
to actuate
PLC
commands
to actuate
Positioning or
pushing
operation.
PLC
Commands
to actuate
PLC commands
to actuate
Operation completed
Operation
com
p
leted
PLC commands
to stop
PLC commands
to stop
Manual mode
Mode switch
○
e
is switched
Waiting
Speed adjustment
Mode switch
○
e is
switched
Waiting
Before returning to origin position
Positioning or
pushing operation.
PLC
commands to
return to origin.
No operation is
made for 3 min.
for all button switch.
Mode switch
○
e is
switched
After returning to origin position
Stops at
set position
○
e
○
j
○
i
○
c
○
k
○
m
○
l
○
n
○
g
○
h
○
f
L display
