7.3 Controller modes

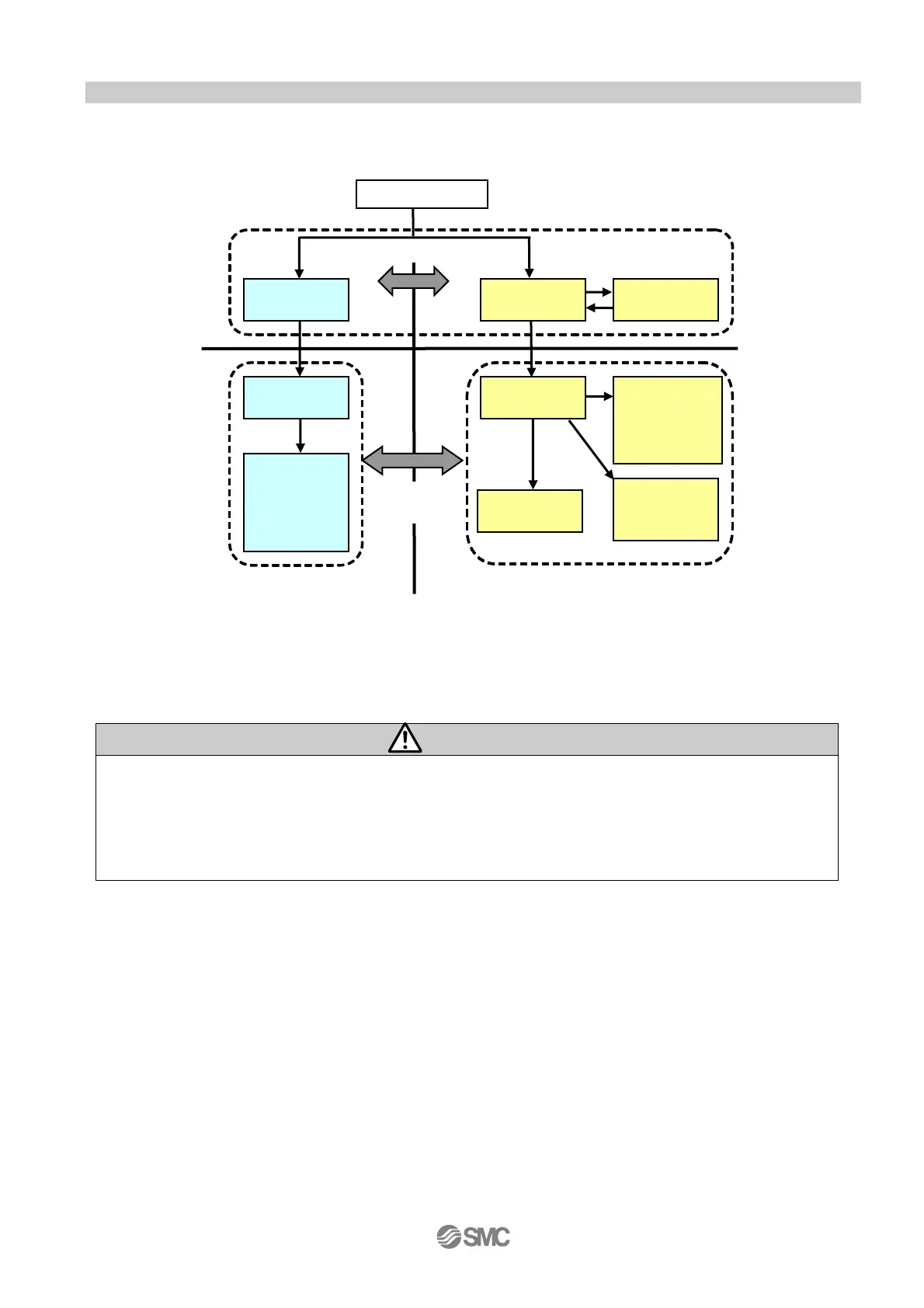

Controller modes are divided into two types, auto mode and manual mode. There are several status
types in one mode. The figure below shows how the status changes.
Followings are the explanation of (A)(B)(C) circled with dashed line.
(A) Before returning to origin position
(B) Auto mode after returning to origin position
(C) Manual mode after retuning to origin position
Caution
Precaution
●Signal is not output from I/O right after switching from manual mode to auto mode. Output from
I/O is made after the next input of operation command.
●Output from I/O is not made if switching from auto mode to manual mode. (Except test function)
Supply power
Auto mode
Manual mode
Waiting
condition
Waiting
condition
Waiting
condition
Waiting
condition
Jog /
inching
Positioning
using
buttons
Setting of
position,
speed and
acceleration
Positioning
or pushing
operation by
PLC.
Auto mode
Manual mode
A
C
B
Switching of
mode SW
Jog /
inching
Before retuning to ori
g
in
p
osition
After retunin
g
to ori
g
in
p
osition
Switching of mode SW
