- 16 -

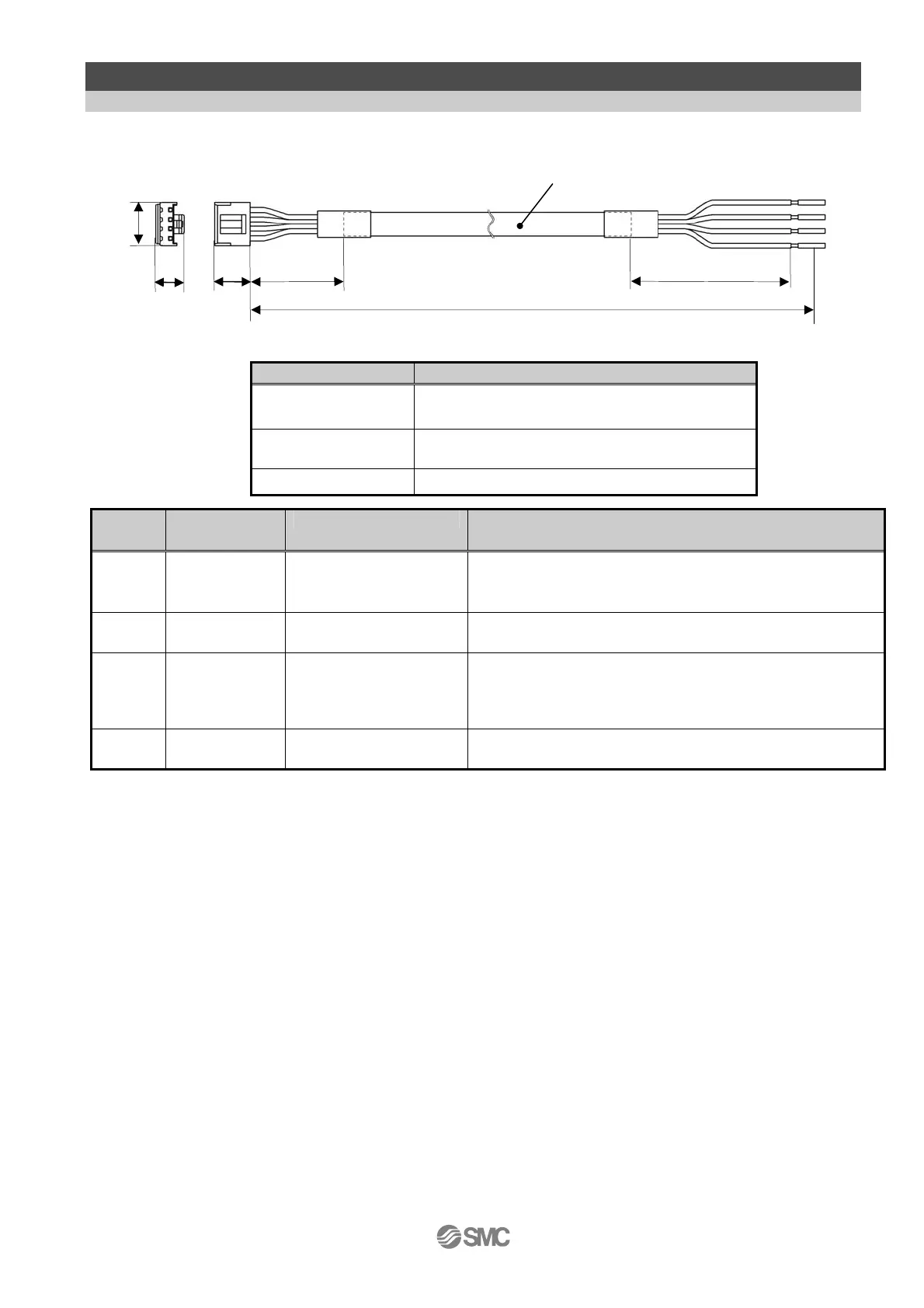

5. CN1: Power supply cable
5. 1 Power supply cable specification
Included power supply cable specification is shown below.
Item Specifications
Connector Manufacturer: J.S.T. Mfg. Co.,Ltd.
Product number ：VHR-4N
Cross sectional
area of the cable
AWG20
Length (L)
LEC-CK1-1：1.5m only
Termin
al
Color of
covered wire
Function Functional explanation
0V Blue
Common power
supply (-)
Common for motor supply, controller supply, and
brake release.
M24V White
Power supply of
motor (+)
Power for the motor supplied through the controller
C24V Brown
Power supply (+) for
the controller
Power supply for the controller
BK
RLS
Black Unlocking (+) Unlocks the brake for maintenance
Power supply cable (LEC-CK1-1)

6.0)
(L)
(60)
(35)
(13.3)
(
10.5
)
(15.8)
