- 29 -

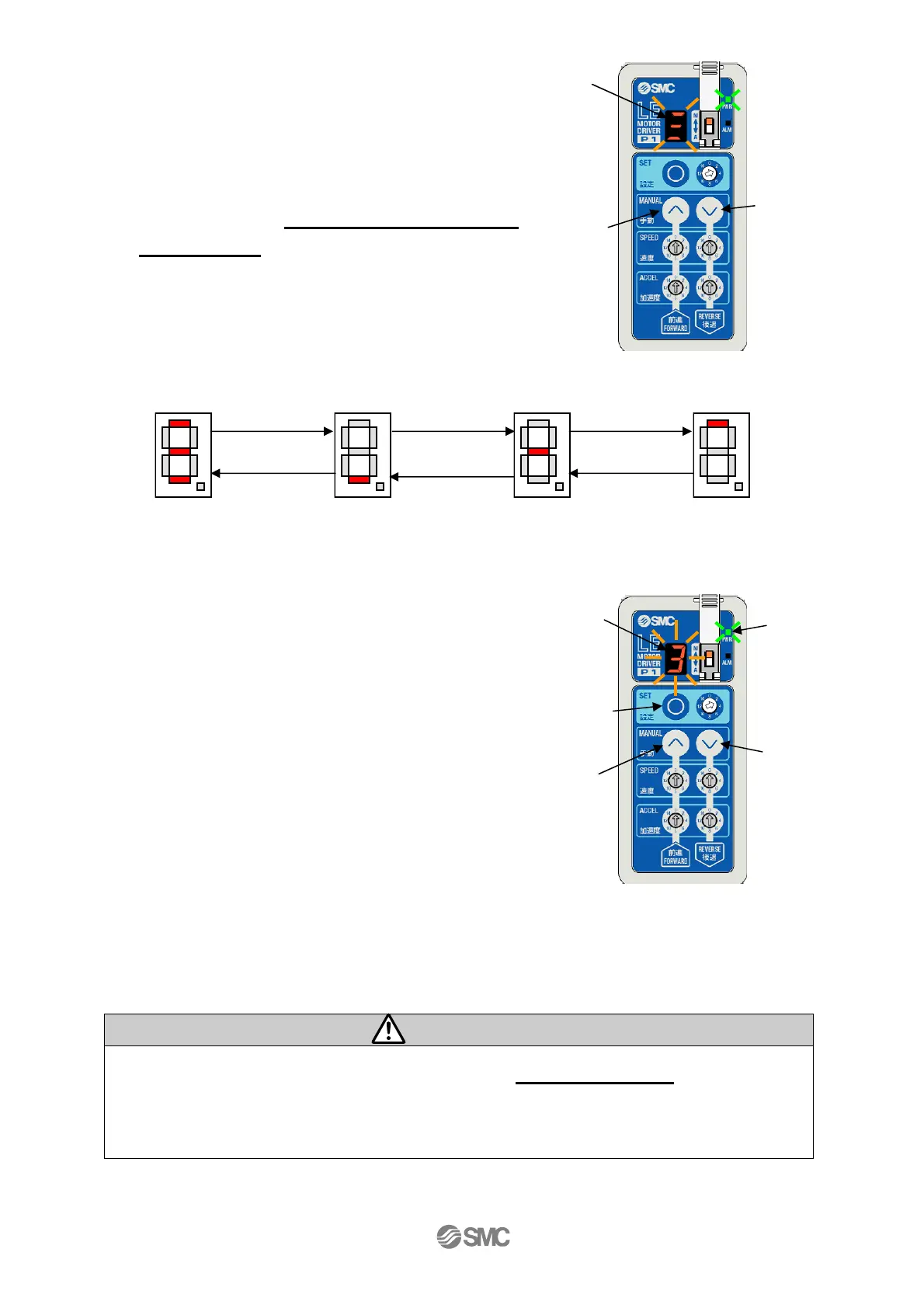

[5] 7-segment LED
○
f , Set the operation method of
this position by pressing the Forward button
○
i
or Reverse button
○
j while monitoring
7-segment LED
○
f.
* Actual force of pushing force depends on the
actuator. Refer to 10. I
nitial setting value per
actuator (P.
48) Pushing operation may not be
possible depending on the actuator.
7-segment LED display (Set operation method)
[6] Press set button
○
g for 2 sec. to set the
operation method. Once this operation is
completed, the position and the operation
method are stored in the controller, and
7-segment LED
○
f display flashes quickly.
That is all for the setting by direct teaching. If you
continue to set other position, start from the
procedure [2]. If you perform setting with Jog /
Inching or test run, press Forward button
○
i and
Reverse button
○
j for 3 sec. simultaneously to
change the power supply LED
○
a from flashing
to lighting.
Caution
●Set operation method per position number. Refer to 8. Operations (P.39).
●The actuators with a smaller lead, it may not be moved by the external force. Perform
positioning by (A) jog / inching in previous page.
Set
button
○
g
7-segment
LED
○
ｆ
7-segment
LED
○
ｆ
Forward
button
○
i
Reverse
button
○
ｊ
Forward
button
○
i
Reverse
button
○
j
Power
supply
LED
○
a
Positioning Pushing
force Low
Pushing
force Middle
Pushing
force High
Forward
button
○
i
Forward
button
○
i
Forward
button
○
i
Reverse
button
○
j
Reverse
button
○
j
Reverse
button
○
j
