- 28 -
[2] Set the position switch
○
h to the position you
desire ("3" in this case). The value of position
switch
○
h flashes quickly on 7-segment LED
○
f.
* Do not set "0" and "F(15)", They are not position
numbers.
[3] Press and hold the set button
○
g until
7-segment LED
○
f changes quick flashing -->
solid lighting --> slow flashing.
[4] Move the actuator to desired position with
external force. Lock in the position by pressing
the set button
○
g.
* At this point, the position is not stored, If the power
supply is cut, it is necessary to started from
procedure [1].
* In case of small lead screws, the actuator may not
be moved by external forced even if the servo is off.
Perform positioning by (A) jog / inching

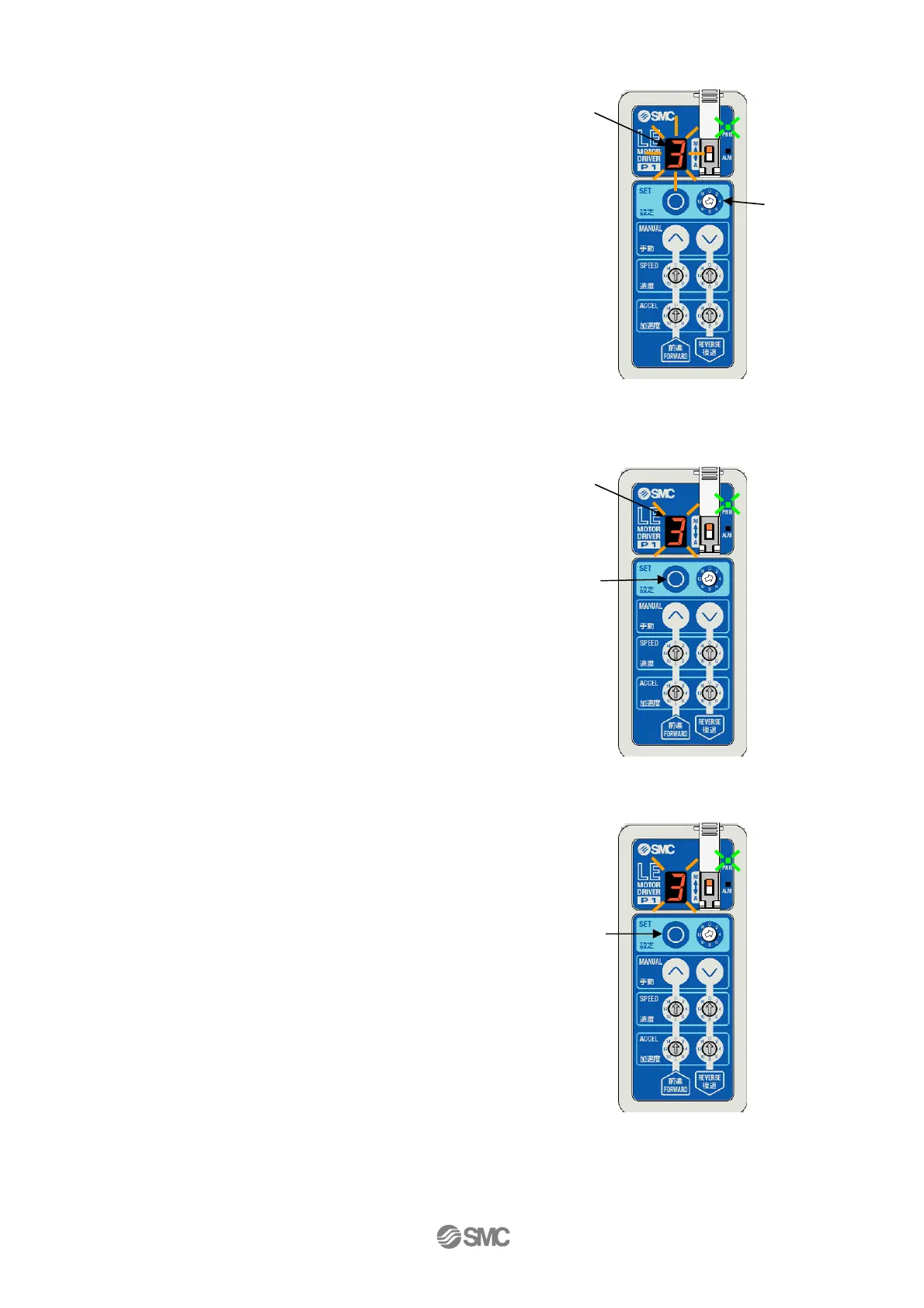

Set
button
○
g
7-segment
LED
○
f
7-segment
LED
○
f
Position
switch
○
h
Set
button
○
g
