socomec ATyS p M User Manual

14
EN
ATySpM - 542935E - SOCOMEC
4. ATYSPM VERSIONS
The ATySpM is available as a 4P product with integrated 230/400 Vac control voltage taken directly off the power
section.
On option it is available with RS485 communication.(Modbus Slave).

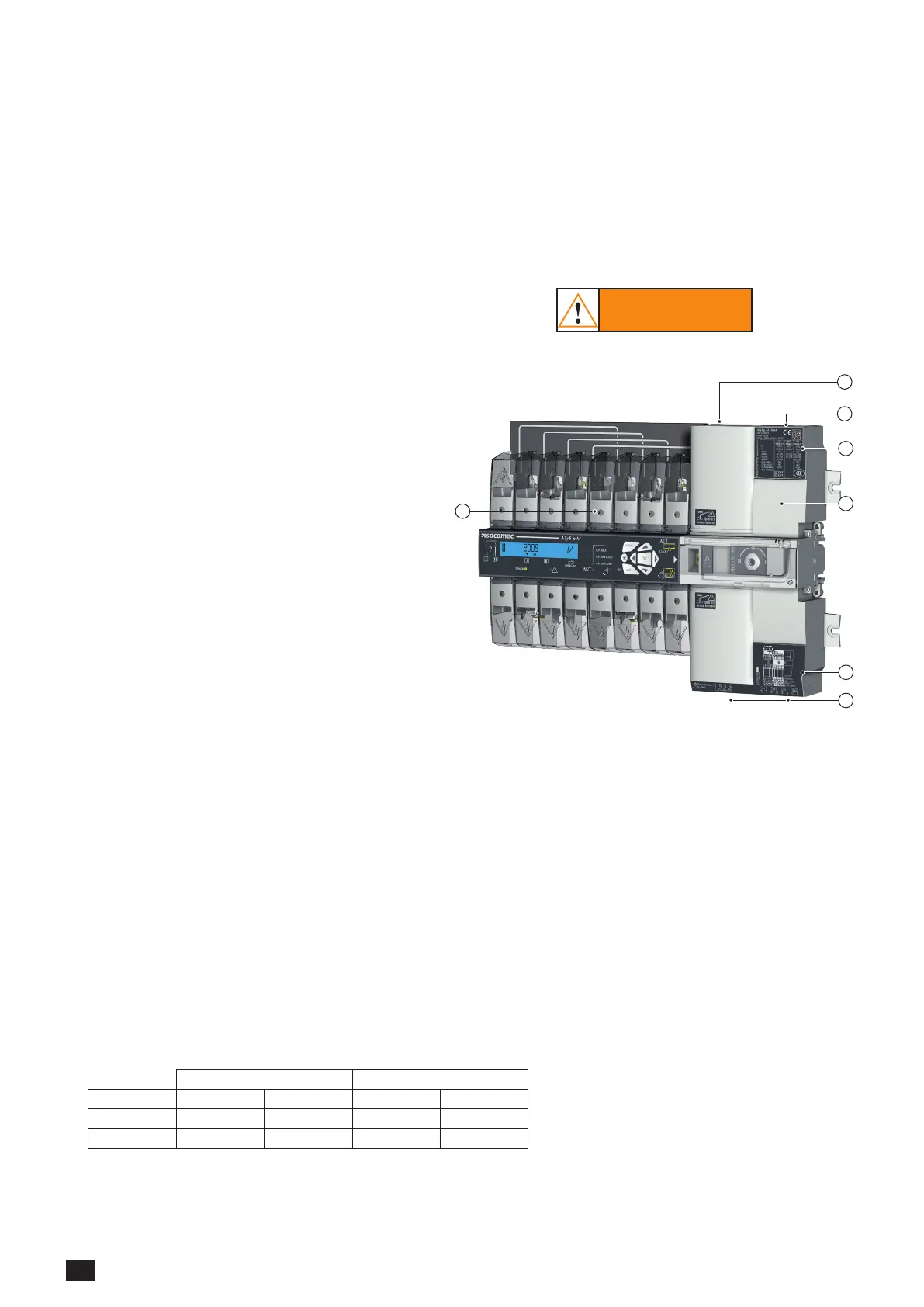

4.1. Product presentation
This quick-acting source transfer switch incorporates:
1. 2 mechanically interlocked switches including an
electronic control-command module.
2. A quick-acting electric control unit enabling
automatic or manual system operation.
3. Electrical specications compliant with product
standards, and a version identication.
4. Changeover switch wiring identication.
5. Control connections.
6. An RJ45 connection for a remote interface
D10/ D20.
7. A connector for RS485 communication (Modbus),
for the version with communication.
CAUTION
Ensure that the load is connected to the top of the switch with the
motorisation on the right hand side as shown.
2
3
7
6
4
5
1
4.2. Specications and advantages
1 - Power section:
A fully integrated and interlocked transfer switch, with high electrical performance offering microprocessor
control and monitoring.
2 - Operation:
A exible operating mechanism enabling quick motorised transfer in automatic mode or locally in manual mode
for emergency operations. Features a locking device to ensure (in position zero) a secured isolation of the load
(padlocked).
4.3. Supply types
The power supply of ATySpM is required to be 230VAC ± 30% at a frequency of 50/60 Hz and has been developed
so as to meet most network congurations.
Product’s working ranges:
Version 230 / 400 VAC Version 127 / 230 VAC
Umin Umax Umin Umax
Ph-N 160 305 160 305
Ph-Ph 277 528 160 305
