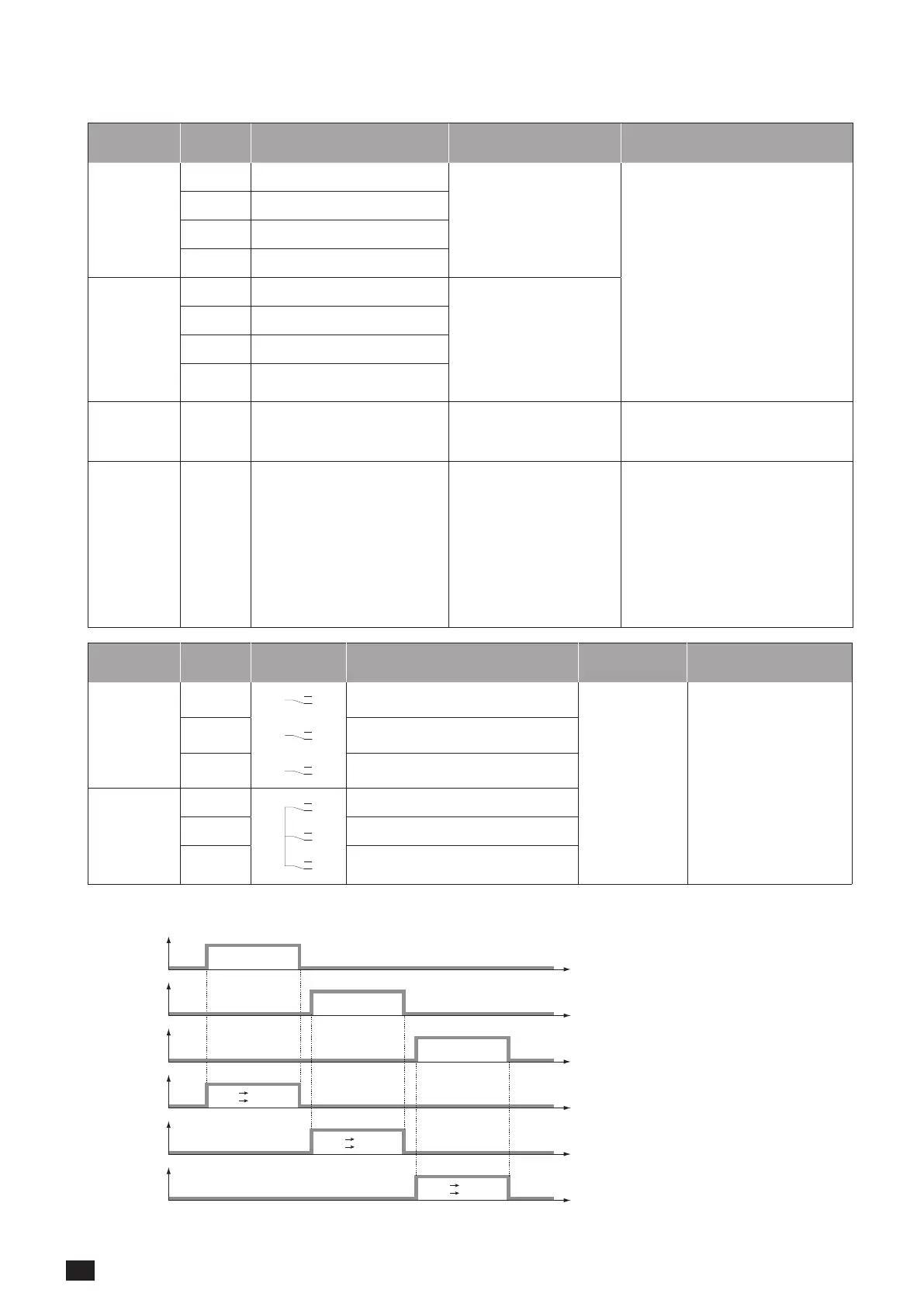

12.1. Terminal connectors designation
Type
Terminal
no.
Description Characteristics
Recommended connection cross-
section
Inputs 207 Common point for inputs
Do not connect to any
power supply
Supply from the product
0.5 to 2.5 mm²
(rigid)
0.5 to 1.5 mm²
(stranded)
208 I1: programmable input
209 I2: programmable input
210 I3: programmable input
Outputs 43/44 O1: programmable output Resistive load
2A 30Vdc
0.5A 230Vac
Pmax : 60W or 115VA
Umax : 30Vdc or
230Vac
53/54 O2: programmable output
63/64 O3: programmable output
73/74 G : generator start signal
Remote
interface
connection
RJ
ATyS D10/D20 human/
machine interface
Maximum distance 3 m RJ45 8/8 straight cable Cat.5
Serial
connection
(specific
version)
RS485
Connection RS485
0 : interconnection of cable
shielding upstream and
downstream of RS485
bus
–: negative terminal of
RS485 bus
+: positive terminal of
RS485 bus
RS485 bus insulated
LiYCY shielded twisted pair, 0.5
to 2.5 mm²
Type
Terminal
no.
Status of the
contact
Description
Output
characteristics
Recommanded
connection cross-section
Auxiliary
contact
block
1309 1001
11/12/14
11
14
12
Changeover switch in position I
250V AC 5A AC1 -
24VDC 2A
AC13 -
250VAC - 2A
0.5 to 2.5 mm²
(rigid)
0.5 to 1.5 mm²
(stranded)
21/22/24
21
24
22
Changeover switch in position II
01/02/04
01
04
02
Changeover switch in position 0
Auxiliary
contact
block
1309 1011
11/12/14
11
14
12
21
24
22
01
04
02
Changeover switch in position I
21/22/24 Changeover switch in position II
01/02/04 Changeover switch in position 0
12.2. Auxiliary contact operating schedule
Position I
Position 0
Position II
C.A. Position I
C.A. Position 0
C.A. Position II
11-14 Closed
11-12 Open
01-04 Closed
01-02 Open
21-24 Closed
21-22 Open
Position I
Position 0
Position II
C.A. Position I
C.A. Position 0
C.A. Position II
