34
EN
ATySpM - 542935E - SOCOMEC

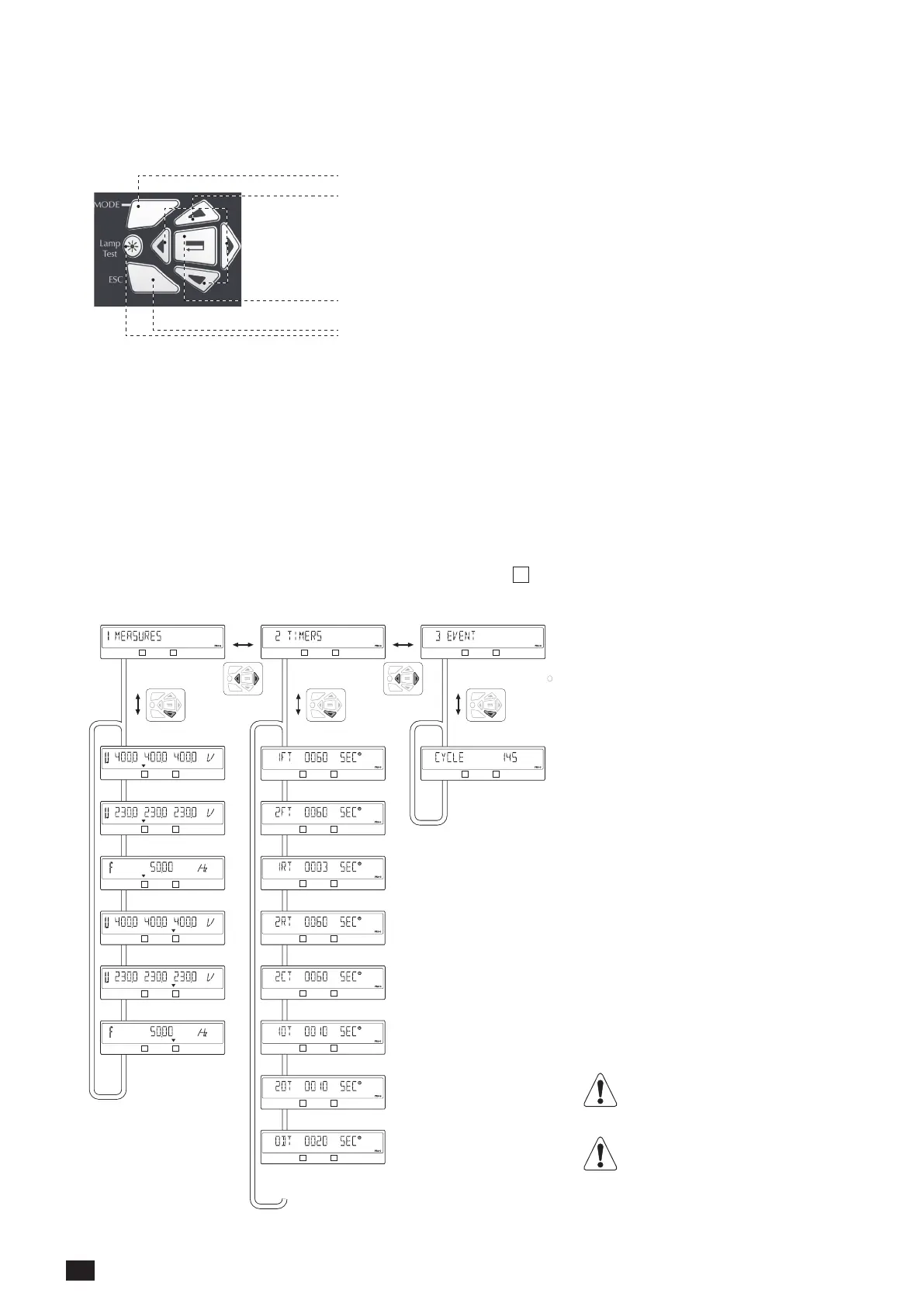

13.4. Front keypad navigation and general information
13.4.1. Keypad
4
3
1
2
5
1. MODE key to shift between operation modes.
2. Navigation Keys to browse through the ATySp menus
without software.
3. Enter Key used to enter Prog Mode (Press and hold for 5
seconds) and to validate the settings programmed through
the keypad.
4. ESC key used to escape from a specific screen up to the
main menu.
5. Lamp test key to check the LED’s and LCD screen.
13.4.2. Software version
The software version is displayed after the product has been switched on for the rst time or when switched on after
if it has been off for several minutes (enabling its capacitors to fully discharge).
13.4.3. Display presentation
Display mode is activated as soon as the device is switched on. It enables parameters visualisation whatever the
functioning mode.
The switchover cycles have priority over display mode, and display the time delay countdowns as soon as they
are activated. Any value available in this mode is kept on the screen once displayed for 5 secs. After this time,
or following a switchover cycle, the screen returns to source
I
phase-phase voltages display (1
st
screen in this
mode).
1 2 1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
Dynamic display of the time
delays has priority.
The alarms and faults status
display also has priority.
