ATySpM - 542935E - SOCOMEC
13.3. Padlocking
Enables locking in the 0 position (factory conguration) or in positions I, 0 or II (user congurable).
It is necessary to congure padlocking to all positions before installation as access to conguration is at the back of
the product. Refer to section «8.1. Changing the padlocking conguration», page 18
Locking is only possible in manual mode (cover open).

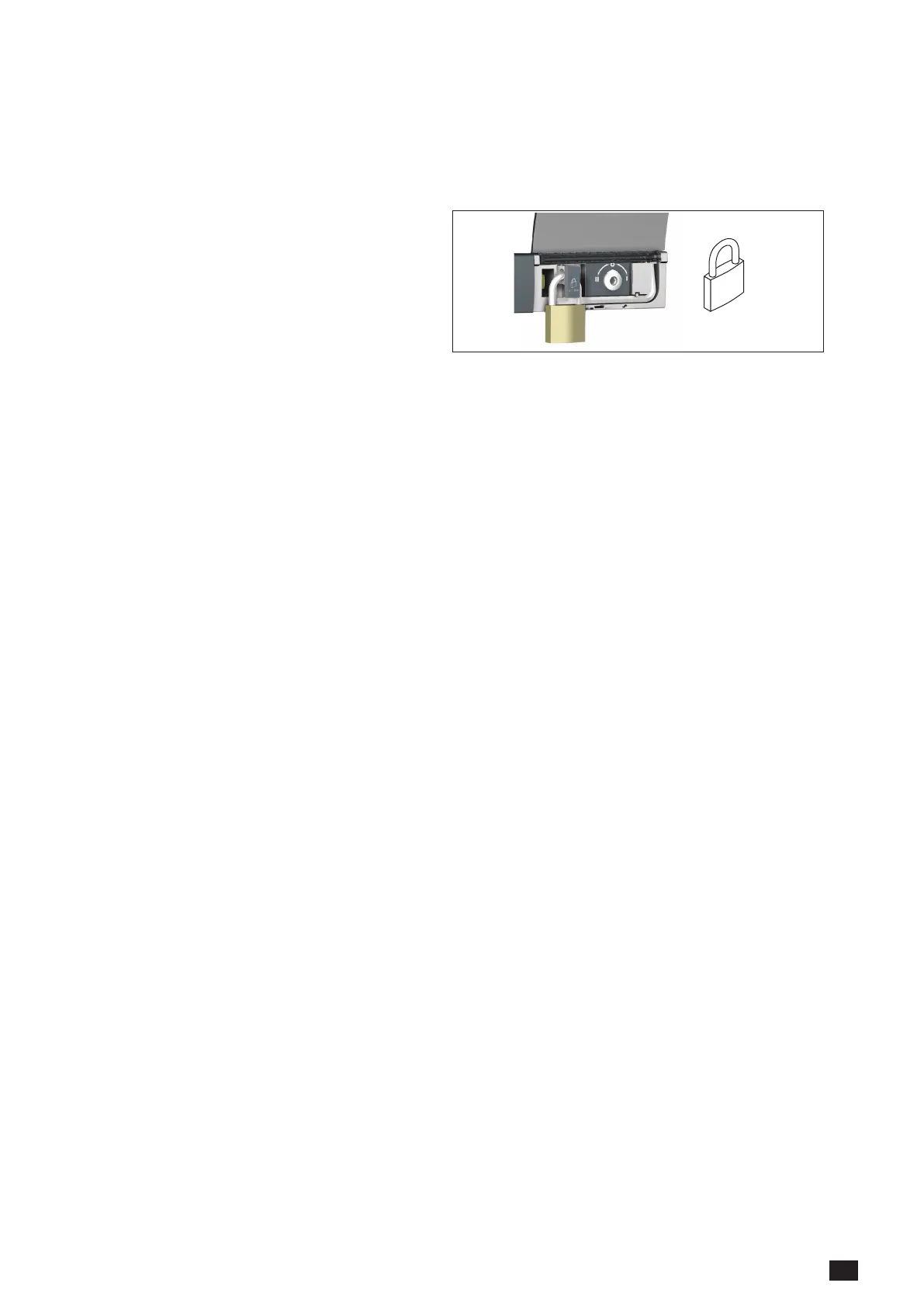

Pull on the locking handle to enable the interlock. Lock
by inserting a padlock into the orice provided for this
purpose.
4 mm min
3/16” min
8 mm min
5/16” min
