2. INTRODUCTION
ATyS p M “Automatic Transfer Switching Equipment” (ATSE) is designed for use in power systems for the safe
transfer of a load supply between a normal and an alternate source. The changeover is done in open transition and
with minimum supply interruption during transfer ensuring full compliance with IEC 60947-6-1, GB 14048-11 and
other international TSE standards as listed.
The ATySpM is a full load break (switch type) derived transfer switching equipment where the main components are
proven technology devices also fullling requirements in IEC 60947-3 standards.
As a Class PC ATSE, the ATyS pM is capable of “making and withstanding short circuit currents” assigned to
IEC 60947-3 utilization categories of up to AC23A, GB 14048-11, IEC 60947-6-1 and equivalent standards with
utilization categories of up to AC33B.
ATySpM transfer switches ensure:
• Power Control and Safety between a normal and an alternate source.
• A complete product delivered as a fully assembled and tested solution.
• Intuitive HMI for emergency / local operation.
• Integrated and robust switch disconnection.
• Window with clearly visible position indication I – 0 - II.
• An inherent failsafe mechanical interlock.
• Stable positions (I – 0 – II) non affected by typical vibration and shocks.
• Constant pressure on the contacts non affected by network voltage.
• Energy Efcient with virtually no consumption whilst on the normal, alternate or off positions.
• Extremely rugged, error free and built in padlocking facility (congurable).
• Straight forward installation with effective ergonomics.
• Programmable secure motorization controls interface.
• User congurable I/O with communication through Modbus
®
(RS485) Optional
• ATS conguration through a keypad as well as through EasyCong programming software.
• Auxiliary contacts for switch positions I – 0 - II (optional).
• “Product availability” output.
• Ample accessories to suit specic requirements.
• Fully integrated ATS controller specically designed for Mains / Mains and Mains / Genset applications.

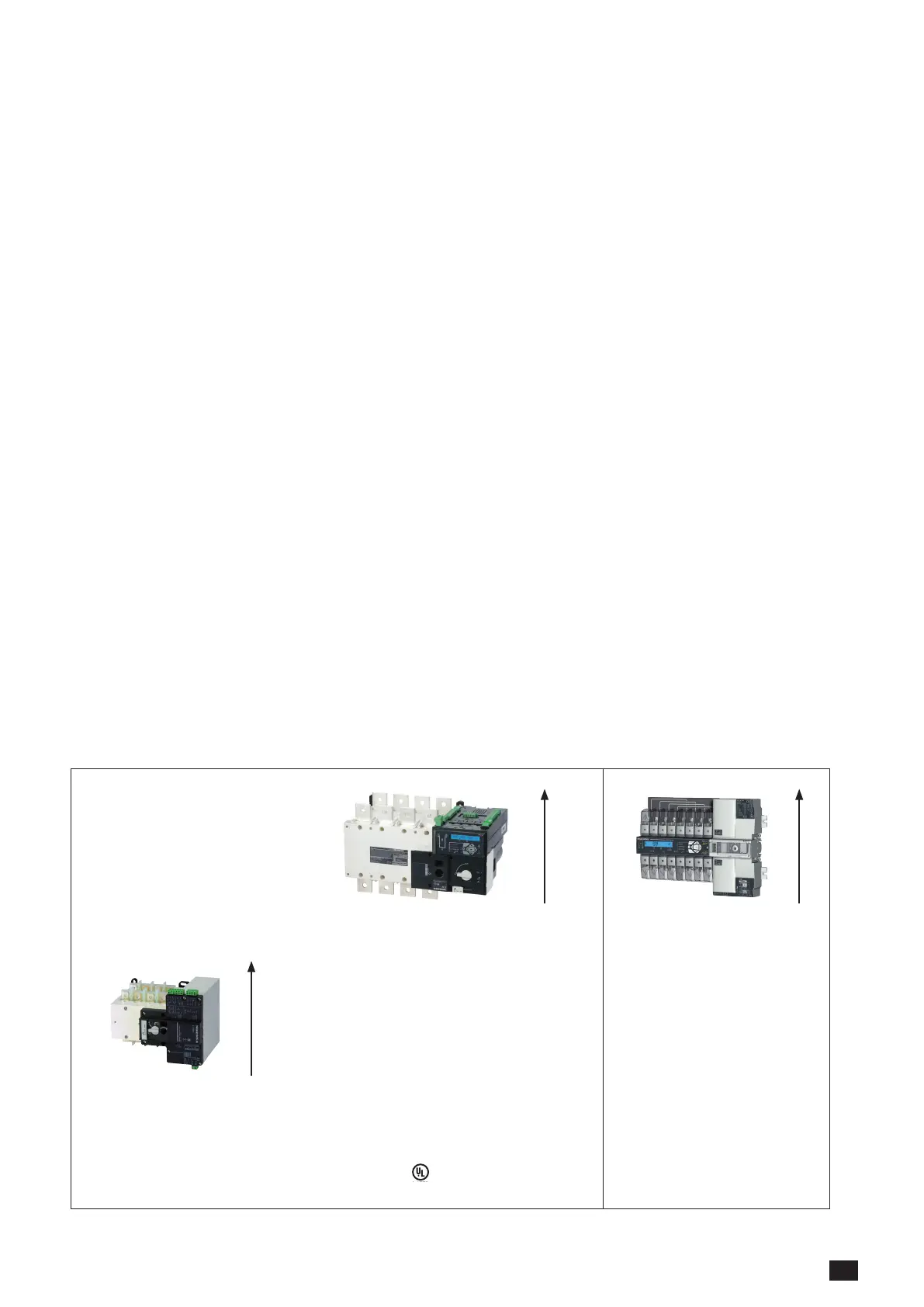

2.1. The ATyS family product range
Just the right ATyS for your application…
ATyS: Small Footprint
Back to Back
Configuration
125A - 3200A
ATyS M: Modular Profile
40A - 160A
40A - 125A
ATySdS
Small Genset
with DPS
ATySS (RTSE)
Small Genset
ATySp
Power / Genset
Management
ATySg
Simple Genset
Management
ATySt
Transformer
Management
ATySd
RTSE (DPS)
ATySr
RTSE
(1)
ATy S
RTSE
ATySpM
Evolved Genset
Management
ATySgM
Simple Genset
Management
ATyStM
Transformer (building)
Management
ATySdM
RTSE (DPS)
Side by Side
Configuration
(1)
The UL version of ATySr is available from 100-400A
