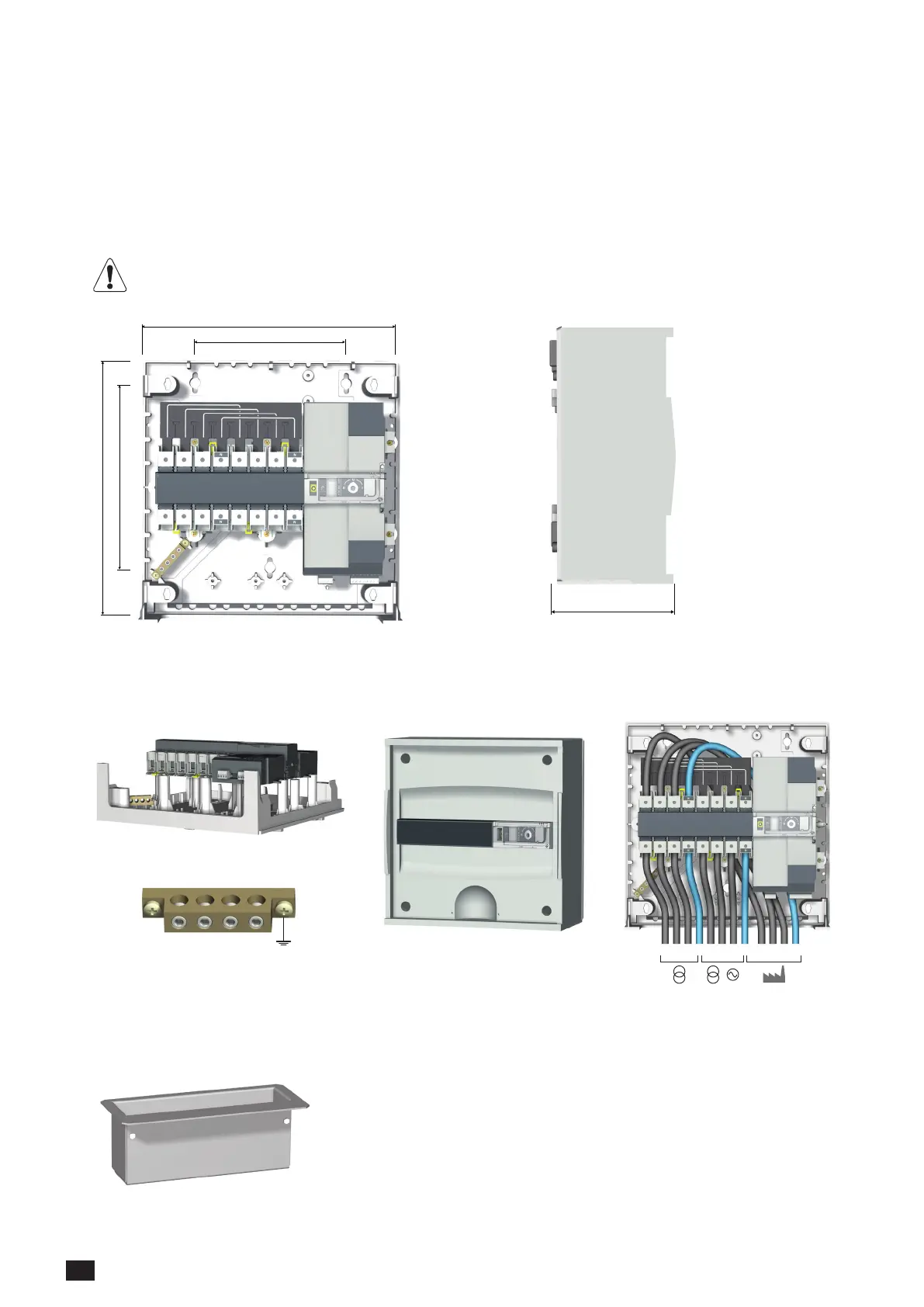

10. INSTALLING WITHIN THE ATYSM ENCLOSURE
10.1. Polycarbonate enclosure
Ref. 13099006
Dimensions and mounting
The enclosure must be wall-mounted using screws (not supplied). Recommended size: M6 50 mm (minimum).
Weight : between 8 and 10 kg, depending on the accessories.
Only 1 aux contact block may be installed when using this enclosure.
193 mm
225 mm (M6)
275 mm (M6)
385 mm
385 mm
10.1.1. Wiring in a polycarbonate enclosure
Example: Neutral on the right
NN N
/
Max cable size 25 mm²
10.1.2. Extension unit
Ref. 13099007
Enables you to allocate additional space to the polycarobonate enclosure (ref. 13099006).
