13.8. Emergency breaking (trip function)
The emergency breaking (trip) function ensures the following:
- on-load breaking,
- breaking across all live conductors.

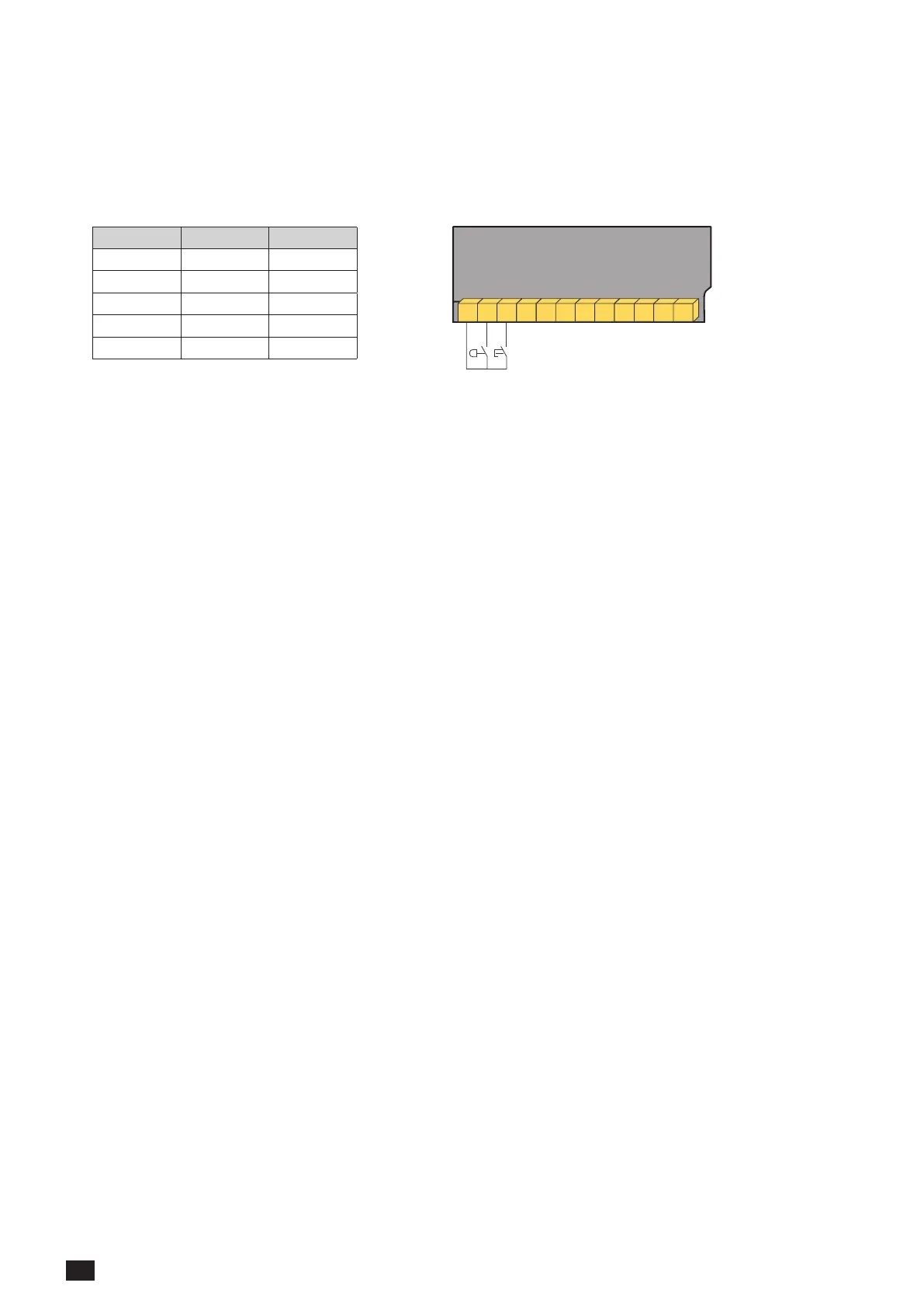

The product must be congured and wired as follows to allow emergency breaking:
207208 209 210
43 44 53 54 63 64 73 74
Menu Parameters Setting
SETUP 2ND TRIP YES
I-O IN1 FT1
I-O IN1 NO
I-O IN2 RST
I-O IN2 NO
Following an emergency trip, the fault must be validated and inhibited to allow the resumption of automatic
operation (by opening then closing the Auto-Man cover, activating the RST input or via the RS485).
The solution shown above enables resetting via activation of the RST input.
