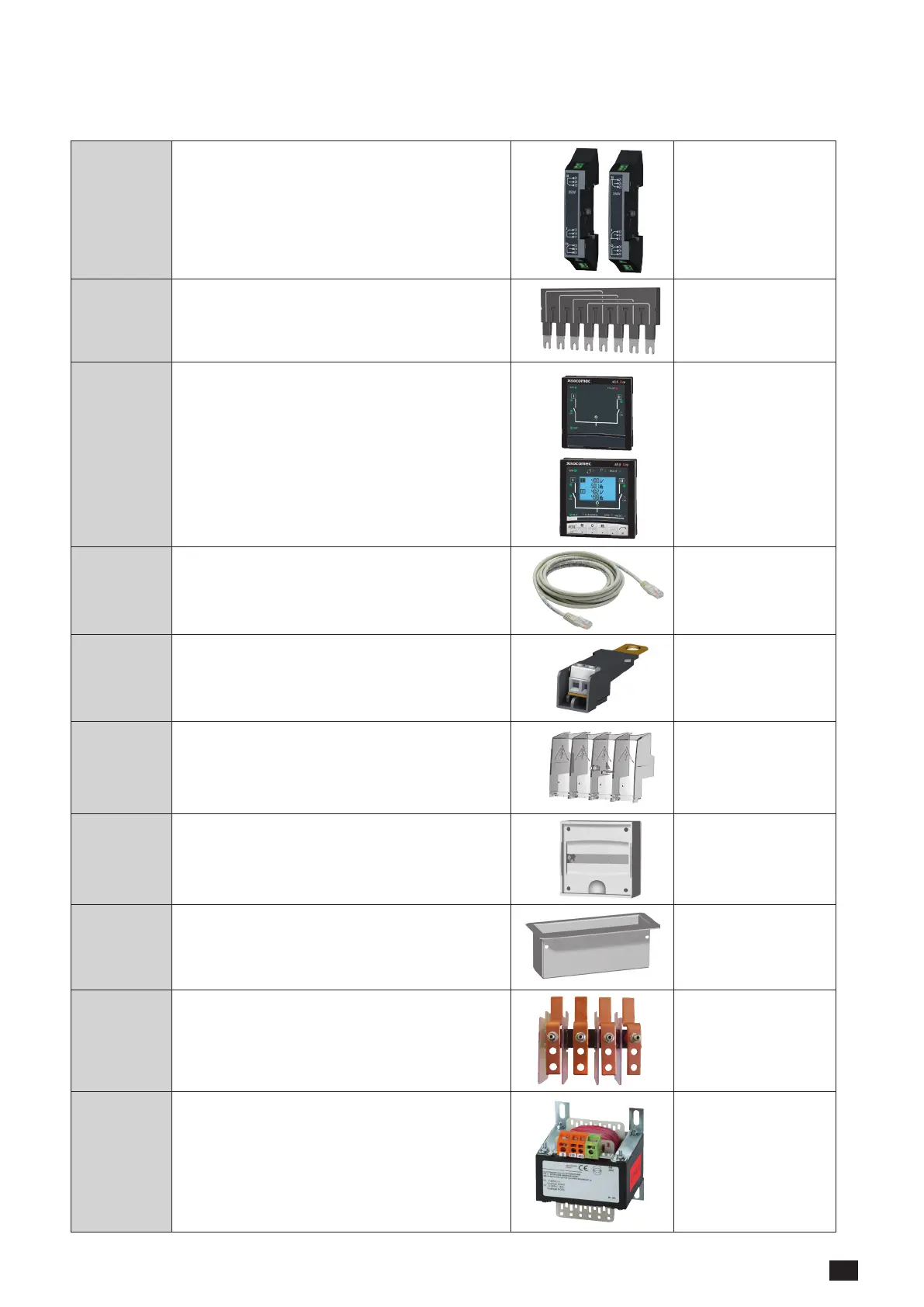

5. OPTIONAL ACCESSORIES
Auxiliary
contacts
Each product can take up to 2 auxiliary contact blocks.
Each accessory integrates 1 NO/NC auxiliary contact
(for each position I, O and II) 13091001 or NO/NC for
13091011.
Characteristics: 250 VAC / 5 A maximum.
Ref. : 1309 1001
Ref. : 1309 1011
Bridging bars
To provide a common point on the outgoing side of the
switch (load side).
ATYSM 025 A
2 Refs are available: Rating
≤125A : 1309 4006 and
rating 160A: 1309 4016
Remote control
interfaces
D10/D20
- Use. Adapted to applications requiring the changeover
switch to be tted inside the cabinet.
Product self-supplied via the RJ45 connection lead
with ATySM. Maximum connection distance: 3m.
- D10. For transferring source and changeover switch
statuses to the cabinet front panel. IP rating: IP21.
- D20. In addition to the D10 interface functions, enables
conguration, checking, tests and measurements
display. IP rating: IP21.
- Door mounted. 2 holes, ø 22.5. Connection to ATyS M
via the Socomec 1599 2009 connection cable.
Ref. D10 : 1599 2010
Ref. D20 : 1599 2020
Connecting
cable for
remote
interfaces
For connecting between a remote interface and a
checking product.
RJ45 3 m straight uninsulated cable.
ACCESS 209 A
Ref. : 1599 2009
Voltage sensing
and power
supply tap
It allows connection of 2 x 1.5 mm
2
voltage sensing
or power cables. The single-pole voltage sensing tap
can be mounted in the terminals without reducing their
connecting capacity. Do not use with the bridging bar.
ATYSM 026 A
Ref. : 1399 4006
2 parts/ref.
Terminal
shrouds
Protection against direct contacts with terminals or
connecting parts. Other features: Perforations allowing
remote thermographic inspection without removal.
Possibility of sealing.
ATYSM 027 A
Ref. : 2294 4016
2 parts/ref.
Enclosure
Fully dedicated to ATyS M use, this polycarbonate
enclosure provides easy access to a compact, enclosed
transfer switch.
ATYSM 036 A
Ref. : 1309 9006
Extension unit
Combined with the polycarbonate enclosure, the
extension box creates extra space for routing cables
with a larger diameter.
ATYSM 044 A
Ref. : 1309 9007
Power
connection
terminals
The power connection terminals allow conversion of the
cage terminals into bolt-on type connection terminals,
enabling connection of up to two 35mm² cables or
one 70mm² cable. Each power connection terminal is
provided with separation screens.
Ref. : 1399 4017
For complete conversion,
order 3 times the
reference.
Auto-
transformer
For use with ATyS M in 400 VAC three-phase
applications without a distributed neutral. As the ATyS
M has integrated measurement and power supply
circuits, a neutral connection is required for 400 VAC
three-phase applications. When no neutral connection
is available this autotransformer (400/230 VAC, 400
VA) provides the 230 VAC required for the ATyS M to
function.
Ref. : 1599 4121
