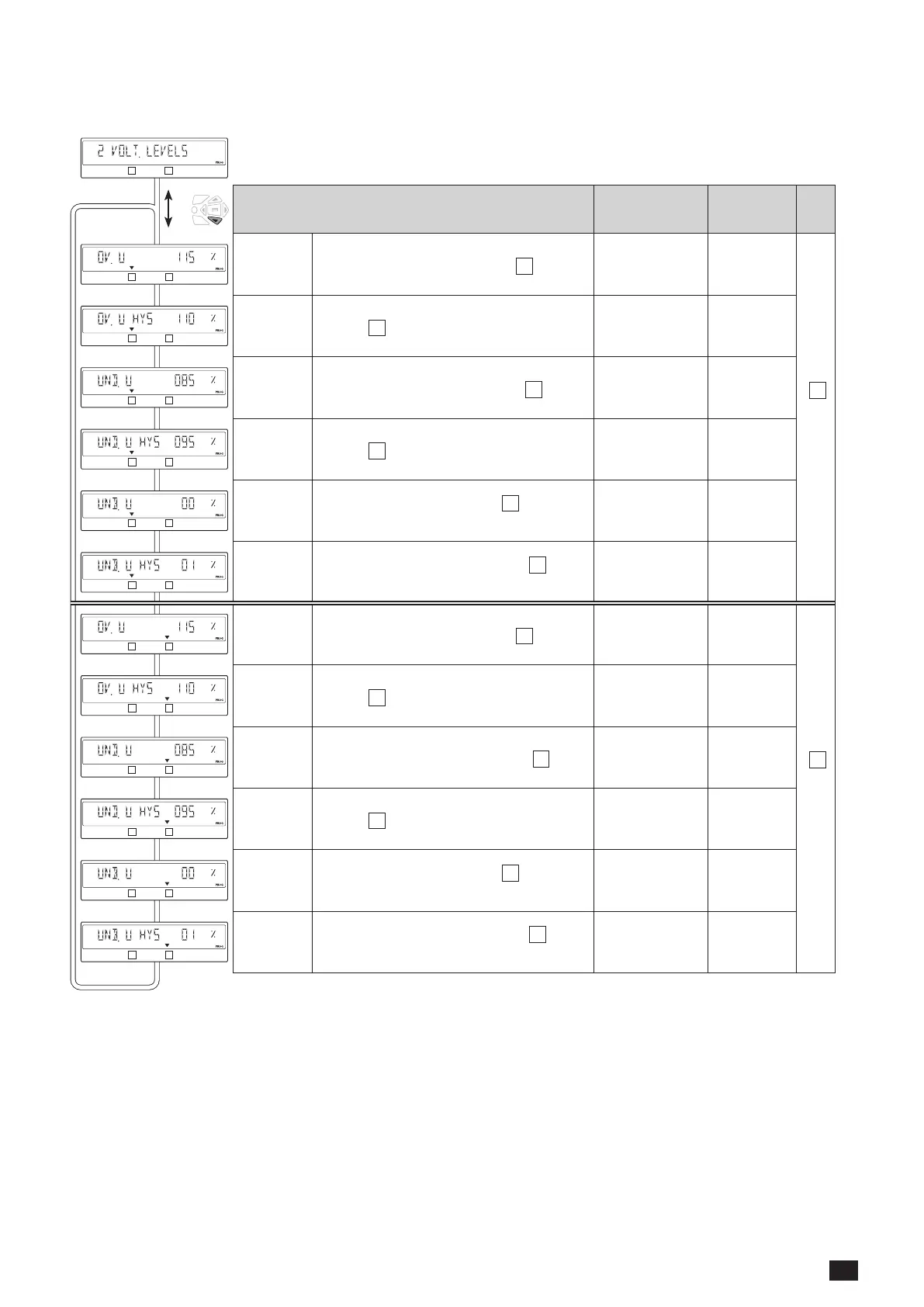

13.5.6. VOLT. LEVELS Menu
12
Definition Adjustment
range*
Default
values *
12
OV U
Overvoltage threshold source
I
102 - 130% 115%
Source
I
12
OV U HYS
Source
I
over-voltage hysteresis
101 - 119% 110%
12
UND.U
Undervoltage threshold source
I
60 - 98% 85%
12
UND.U
HYS
Source
I
under-voltage hysteresis
61 - 99% 95%
12
UNB.U
Phase unbalance threshold
I
(see next paragraph)
00 - 30% 00%
12
UNB. U
HYS
Hysteresis unbalance detection
I
(see next paragraph)
01 - 29% 01%
12
OV U
Overvoltage threshold source
II
102 - 130% 115%
Source
II
12
OV U HYS
Source
II
over-voltage hysteresis
101 - 119% 110%
12
UND.U
Undervoltage thresholds source
II
60 - 98% 85%
12
UND.U
HYS
Source
II
under-voltage hysteresis
61 - 99% 95%
12
UNB.U
Phase unbalance threshold
II
(see next paragraph)
00 - 30% 00%
12
UNB.U
HYS
Hysteresis unbalance detection
II
(see next paragraph)
01 - 29% 01%
* As percentages of Unom in case of over and undervoltage.
As percentages of Uavg in case of unbalances.
Measurement accuracy: Voltage: 1%
