socomec ATyS p M User Manual

47
EN
ATySpM - 542935E - SOCOMEC
M-G* M-M*
12

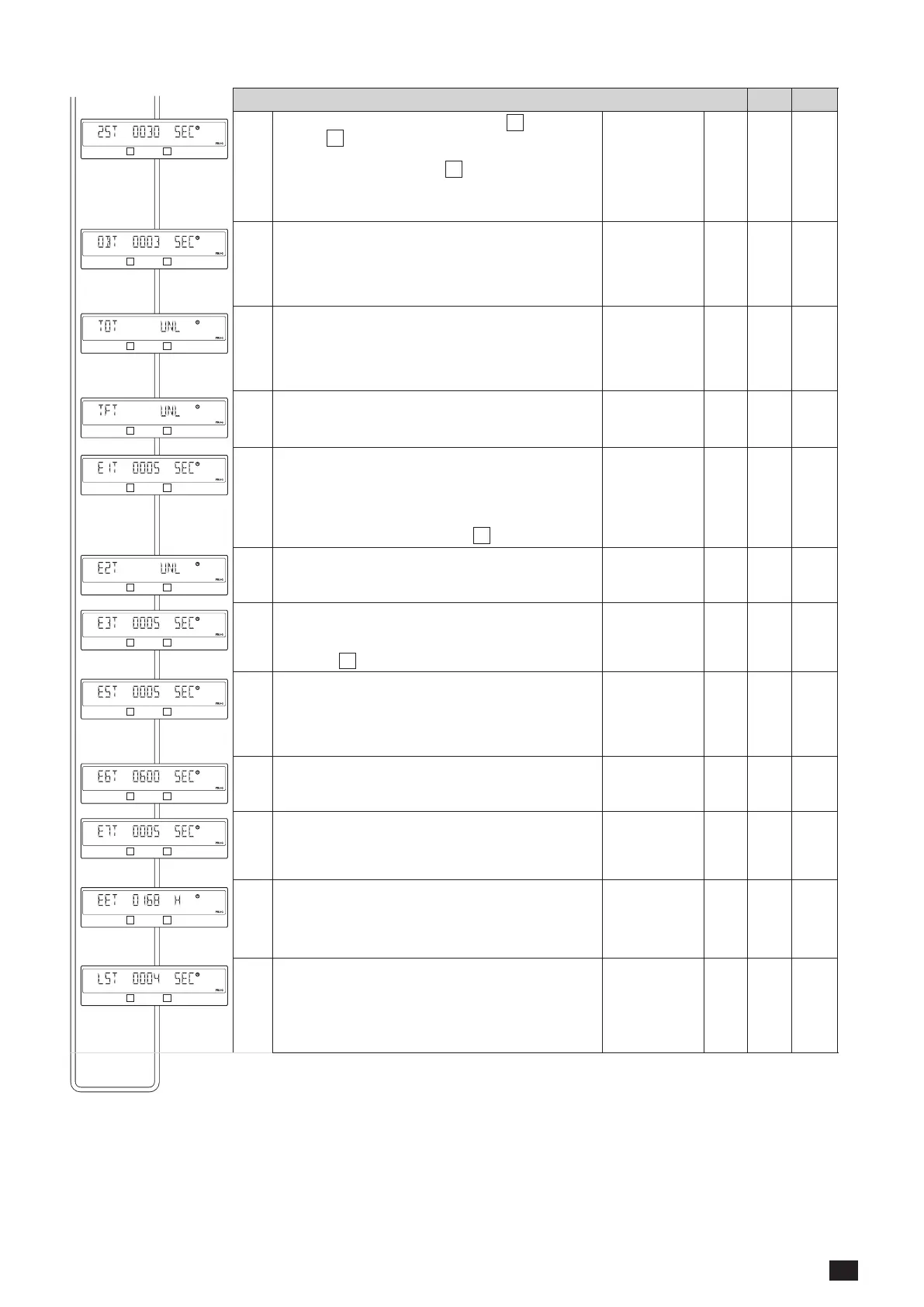

2ST
Genset starting timeout delay (source
II
)
(source
II
Start Timer)
Time delay started at the same time as the starting
request. If after 2ST source
II
(genset) has not
started, an error message is displayed «FAIL
START».
from 0 to 600 s 30 s
•
12
0DT Minimum off time delay (0 Dead Timer)
This is the minimum load supply down time, possibly
with stop in position 0, so as to enable residual
voltages generated by the load (engine type) to
disappear.
from 0 to 20 s 3 s
• •
12
TOT "On Load Test" duration time delay
(Test On Load Timer)
This time delay denes the On Load Test time. It
starts when the Test is initiated. The return to the
network takes place at the end of TOT.
UNL (unlimited)/
LMT (from 10 to
1800 s)
UNL
•
1 2
TFT "Off Load test" time delay (Test off Load Timer)
This time delay denes the Off Load Test duration.
UNL (unlimited) /
LMT (from 10 to
1800s)
UNL
•
12
E1T
(1)
"On Load external operation" request time delay
(start)
This time delay starts at the same time as the EON
order. At the end of this time delay, the genset
starting order is sent. Then when the genset is
available, the transfer on source
II
takes place.
from 0 to 1800 s 5 s
•
12
E2T
(1)
"On Load external operation" request time delay
(duration)
This time delay denes the EON order time.
UNL (unlimited)/
LMT (from 10 to
1800 s)
UNL
•
12
E3T
(1)
"On Load external operation" request time delay (End)
This time delay is counted from the end of the EON
order, and only after this time delay is the switchover
to source
I
is executed.
from 0 to
1800 s
5 s
•
12
E5T
(2)
"Off load external operation" request time delay
(start)
This time delay starts at the same time as the EOF
order. At the end of this time delay, the genset
starting order is sent.
from 0 to
1800 s
5 s
•
12
E6T
(2)
"Off load external operation" request time delay
(duration)
This time delay denes the EOF order time.
UNL (unlimited)/
LMT (from 10 to
1800 s)
LMT
600 s
•
12
E7T
(2)
"Off load external operation" request time delay (end)
This time delay is counted from the end of the EOF
order, and only after this time delay will time delay
2CT start, to stop the genset.
from 0 to 1800 s 5 s
•
1 2
EET Programming genset starting time delay, following its
last stop after an on load functioning.
At its end, the output EES will be activated. (After
160H, derived from ±20s).
from 0 to 1100h 168h
•
12
LST Load shedding time delay Load Shedding Timer
This time delay corresponds to the time available to
perform the load shedding operation.
from 0 to 60 s 4 s
• •
* M-G : Mains - genset application - M-M : Mains - Mains application
• = timer present on M-G and/or M-M applications
(1) : these time delays are only accessible and congurable if at least one programmable input is congured with the variable EON (see I/0 menu)
(2) : these time delays are only accessible and congurable if at least one programmable input is congured with the variable EON (see I/0 menu)
