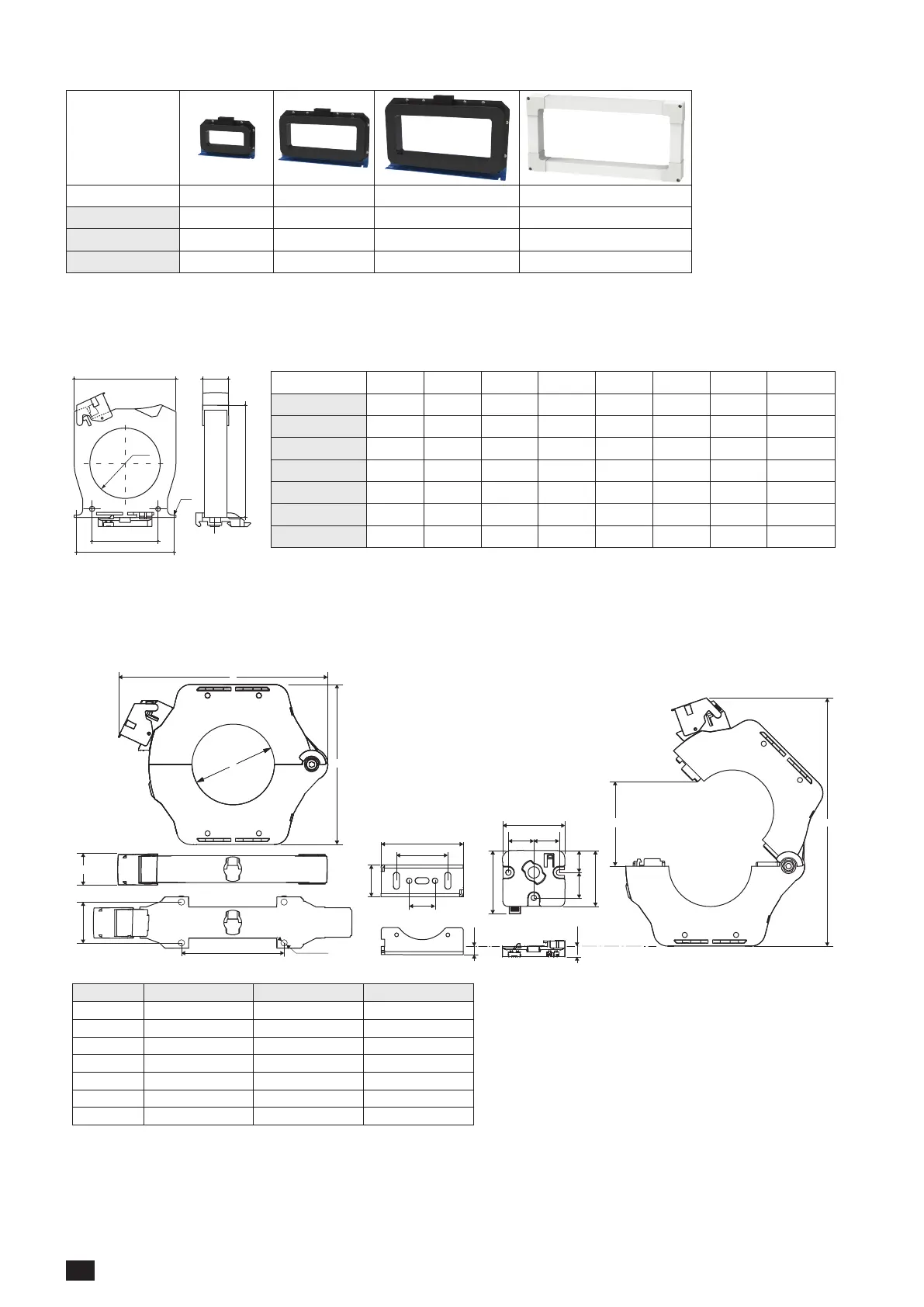

WR/TFR rectangular solid-core balance transformers
WR70x175 WR115x305 WR150x350 TFR200x500
Diameter 70 x 175 mm 115 x 305 mm 150 x 350 mm 200 x 500 mm
I max 500 A 500 A 500 A 500 A
Reference 4795 0717 4795 1130 4795 1535 4795 2050
4.2.1.2. Dimensions
ΔIP circular solid-core balance transformers
A. Width
B. Diameter
C. Spacers
D. Rear bracket spacers
E. Depth
F. Height
G. Diameter of fixing screws
Type A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Weight (kg)
ΔIP diameter 15 53 17.3 25 50 26 81 M4 0.10
ΔIP diameter 30 92 30 50 85 26 103.5 M4 0.15
ΔIP diameter 50 102.5 50 50 90 26 125 M5 0.27
ΔIP diameter 80 116 80 75 105 26 142.5 M5 0.38
ΔIP diameter 120 163 120 100 150 26 182.5 M6 0.72
ΔIP diameter 200 253 200 150 175x41.2 51 274 M6 1.74
ΔIP diameter 300 370 300 200 250x41.5 50 390 M6 3.60
A
Ø B
C
E
F
D
G
ΔIP-R circular split-core balance transformers
ΔIP Ø 50 mm Ø 80 mm Ø 120 mm
A 160 204 252
B 49 79 119
C 30 30 30
D 77 108 149
T 200 260 328
F 116 156 204
Weight (g) 380 850 1500
100
61
80
50
25
25 25
Ø 6,4
40
28
8
10
21
55
25
D
E
F
C
A
B
