6.2. Connecting the current sensors

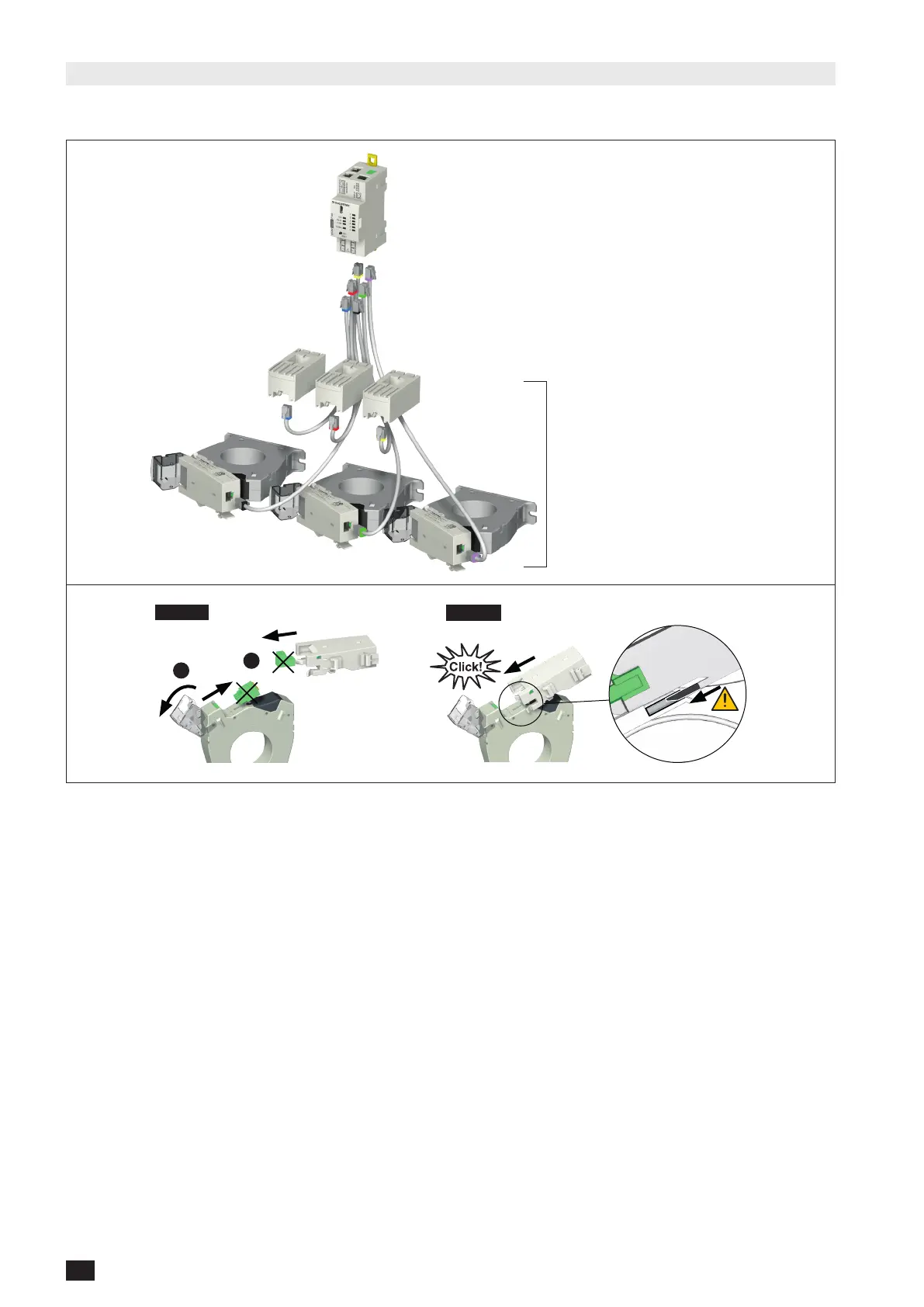

6.2.1. Connection concept
ISOM Digiware F-60
Current sensors TE/TR/TF
or locating core balance
transformers ΔIP
STAGE 2
1
2
STAGE 1
Important:
• To connect the current sensors or locating core balance transformers, use SOCOMEC cables or equivalent only,
RJ12 straight cables, twisted pair, unshielded, 600V-10 degC / +70degC in accordance with IEC 61010-1
version 3.0.
• We recommend that current sensors are installed in the same direction.
• Always connect input I01 rst.
• In the same order as inputs I01 to I06, start by cabling the locating core balance transformers, followed by the
current sensors.
