5.4. Installing TR split-core sensors

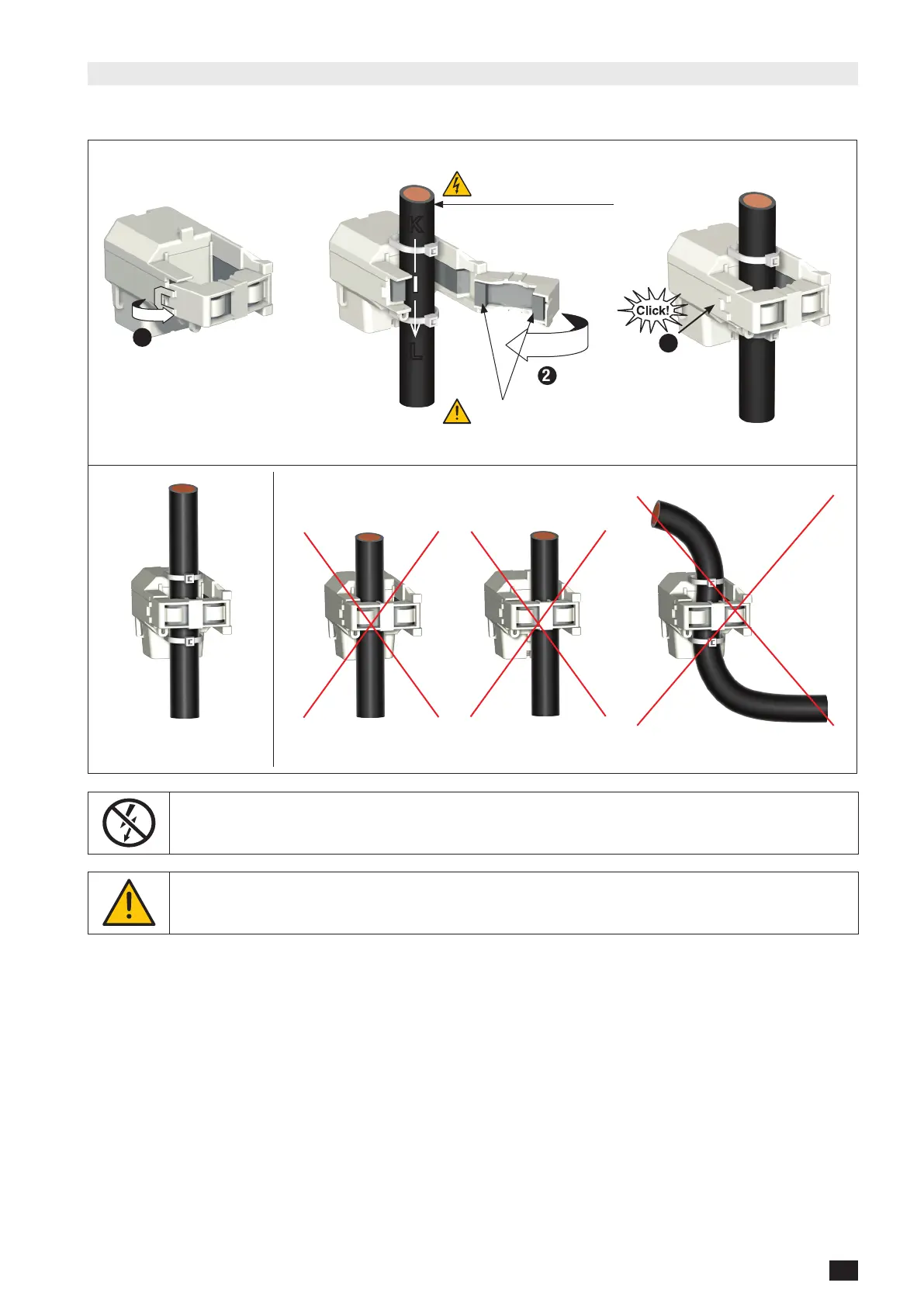

5.4.1. Cable mounting
2
Install on 300V
insulated cables only!
1
K
L
I
3
Sharp edges
recommended
installation
Do NOT clamp or pull out NON-INSULATED conductors carrying DANGEROUS VOLTAGE which could
cause an electric shock, burn or arc ash.
Ref. IEC 61010-2-032
Before closing the TR sensor, check that the air gap is clean (no contamination or corrosion)
