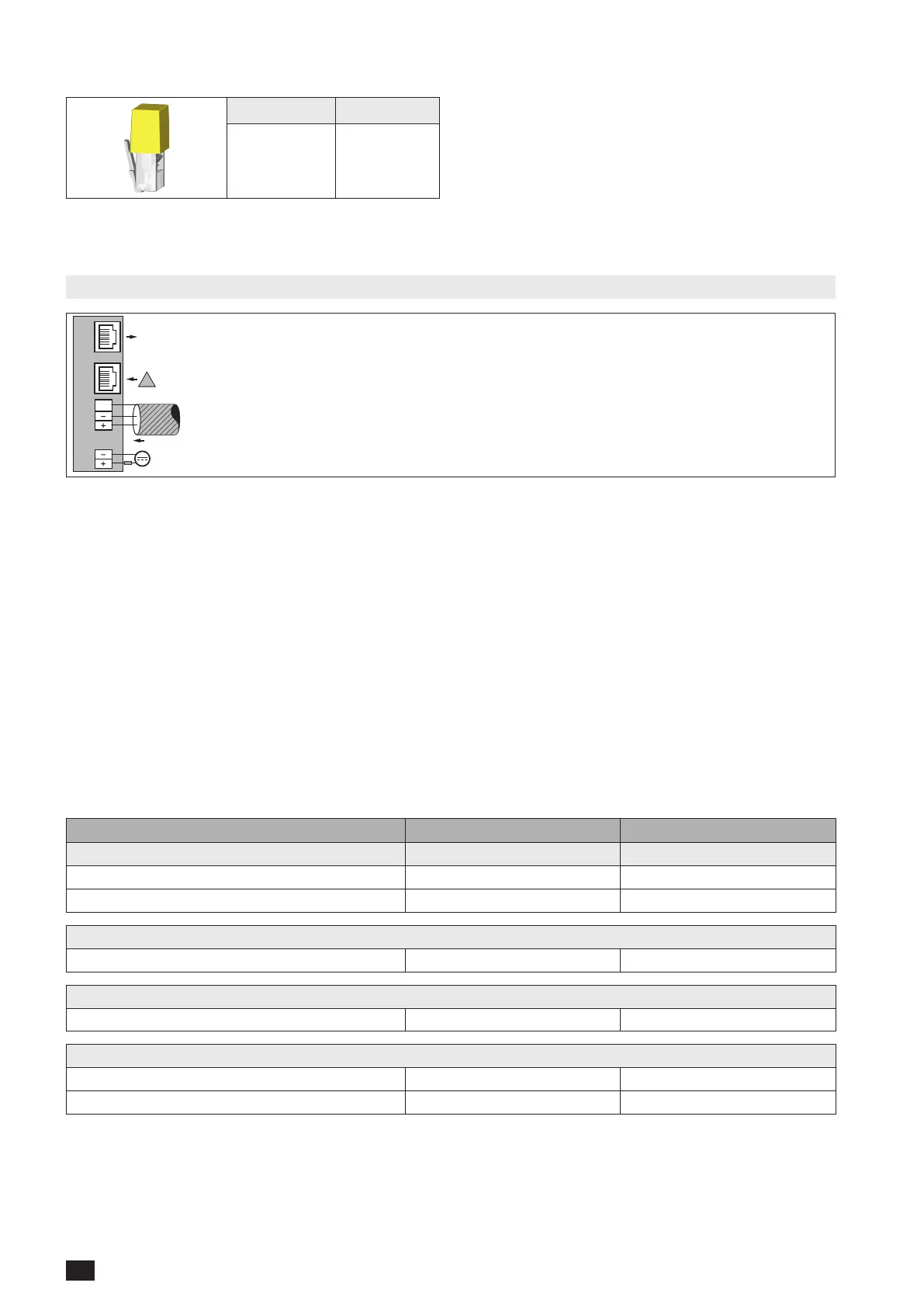

7.1.2. Digiware Bus Termination
Quantity Reference
1 4829 0180
A DIRIS Digiware bus terminal resistor is supplied with every ISOM Digiware D display.
7.2. Sizing of the power supply
NC
RS485
LIYCY-CY
MASTER
Supply 24VDC
(20 W max)
Protection 1A gG
DIGIWARE
ETHERNET
ETHERNET
DIGIWARE
BUS
!
ISOM Digiware units are powered by a single 24 VDC port on the ISOM Digiware D screen.
2 power units are available:
• The P15 24 VDC power unit is available as a 15 W version (ref. 4829 0120):
• 230 VAC / 24 VDC – 0.63 A - 15 W
• Modular format
• Dimensions (H x W): 90 x 36 mm
The P30 24 VDC power unit is available as a 30 W version (ref. 4729 0603):
• 230 VAC / 24 VDC – 1.75 A - 30 W
• Modular format
• Dimensions (H x W): 90 x 54 mm
7.2.1. Equipment consumption
Product Power supplied (W) Power consumed (W)
Power supply
P15 230V / 24V 15
P30 230V / 24V 30 (*)
Cables
25 metre package 0.75
System interface
ISOM Digiware D-x5 2.5
IMD / voltage module
ISOM Digiware L-60 / L-60h 2.3
DIRIS Digiware U-xx 0.72
