78 EN
ISOM DIGIWARE - 546780C - SOCOMEC

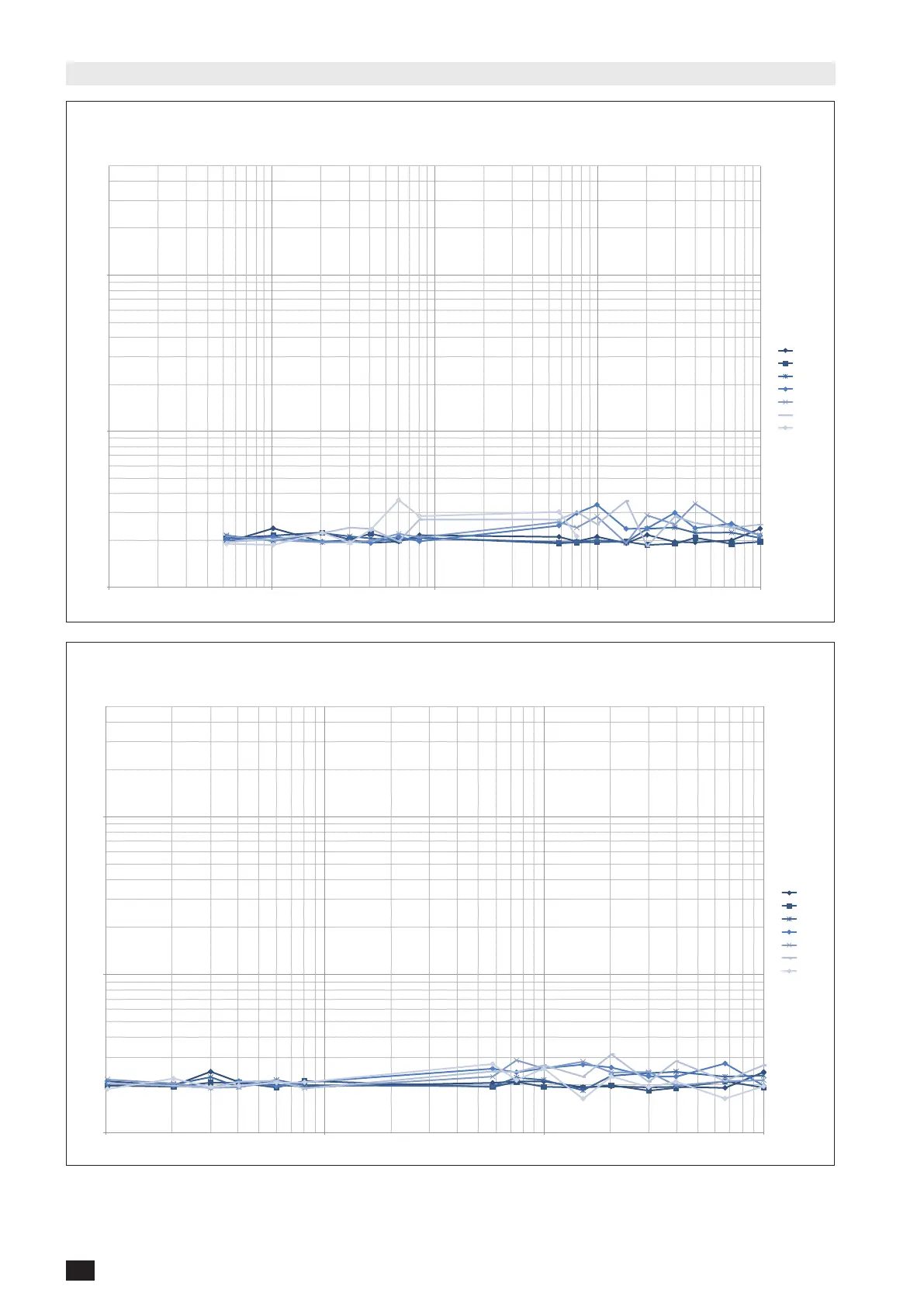

12.3. ISOM Digiware L-60 response curves
1.0
10.0
100.0
0.1 1 10 100 1000
Response Time Tan (s)
Response Value Ran (kOhms)
Response time (Tan) as a function of the response value (Ran)
and system leakage capacitance (Ce) according to EN/IEC 61557-8
(Un = 400 Vac, Fn = 50 Hz, Us = 24 Vdc, Um = 75 V, Injection Period = 1s, Low filtering, Distribution profile)
Ce = None
Ce ≤ 1µF
Ce ≤ 5 µF
Ce ≤ 25 µF
Ce ≤ 50 µF
Ce ≤ 150 µF
Ce ≤ 300 µF
1.0
10.0
100.0
1 10 100 1000
Response Value Ran (kOhms)
Response time (Tan) as a function of the response value (Ran)
and system leakage capacitance (Ce) according to EN/IEC 61557-8
(Un = 230 Vac, Fn = 50 Hz, Us = 24 Vdc, Um = 25 V, Injection Period = 1s, Filtering Low, control/command profile)
Ce = None
Ce ≤ 1µF
Ce ≤ 5 µF
Ce ≤ 25 µF
Ce ≤ 50 µF
