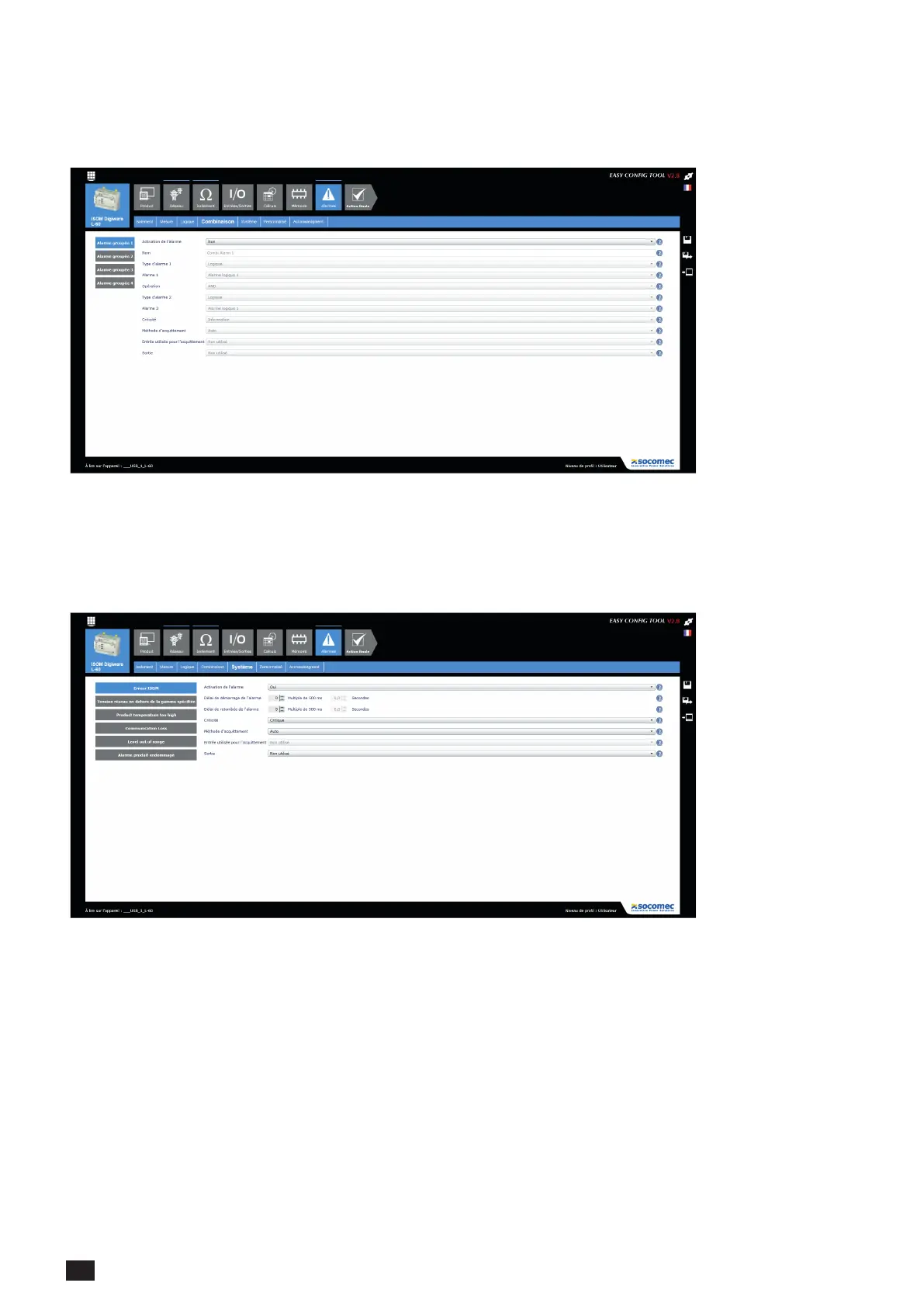

Example of conguring an alarm on a digital input via Easy Cong:
11.1.3. Combination of alarms
• 4 boolean combinations (OR, AND) on the dened alarms (electrical values, energy, inputs, etc.)
Example of conguring an alarm on a digital input via Easy Cong:
11.1.4. System alarms
If an installation error is detected during setup, an alarm will be automatically generated.
• No IMD measuring circuit connection (L-60)
Alarm if there is a connection problem with the measuring circuit of the IMD ISOM Digiware L-60 on the electrical
network you want to monitor:
- L1 and/or L2
- PE (2x)
