ISOM DIGIWARE - 546780C - SOCOMEC

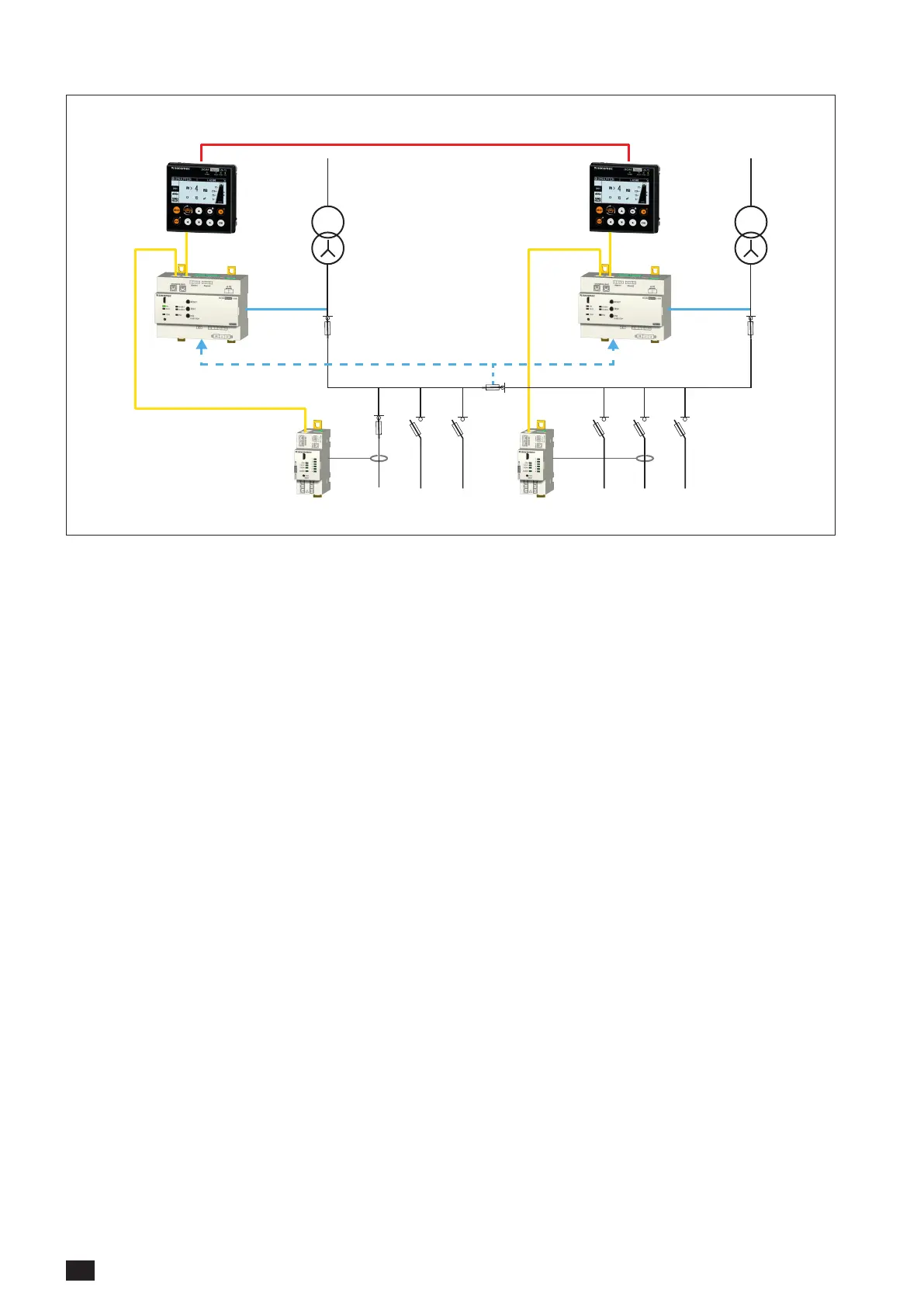

Principle diagram:

Digiware

MASTER DGW

Digiware

Ethernet

Exclusion IMD

+ exclusion DGW

NOTE: Some applications may require you to manage the positions of general cut-off devices of the 2 transformers,

as part of excluding the IMD.

6.3.3.3. Complex coupled networks

In the case of complex coupled networks (transformers > 2 and/or if using multiple general cut-off devices), it must

always be ensured that just one IMD is active on the interconnected network.

NOTE: For more details on the cabling and settings required for managing the network coupling, please see the

technical instructions, "Isom Digiware architecture".
