Inverter Interfaces
Thefollowingfigureshowstheinverterconnectorsandcomponents,locatedatthebottomofthe
inverter.

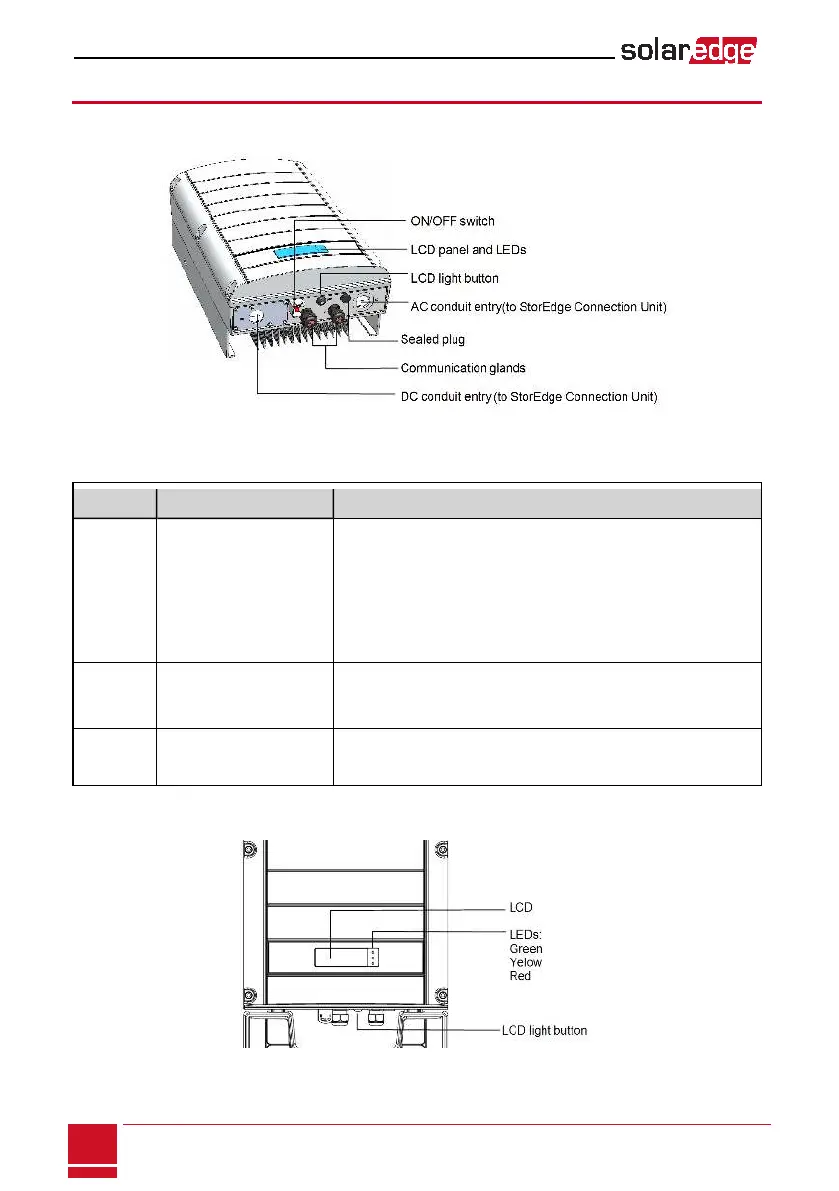

Figure 7: Inverter Interfaces
l LCD panel:displaysinverterinformationandconfigurationparameters
l LCD LEDs:ThreeLEDsindicatethefollowinginverterstatuses:
Color Description Functionality
Green Power production
On - The inverter is producing power.
Blinking - Standby mode. The inverter is in Standby mode until its
working voltage is reached. The inverter then enters Production mode
and produces power.
Off - The inverter is not producing power. This may be during Night
mode, when the inverter ON/OFF switch is OFF or when an error
occurs.
Yellow
Module communication and
inverter shutdown
Blinking:
o
Monitoring information is being received from a power optimizer.
o
The inverter is being shut down.
Red Fault
On - There is an error. Refer to Troubleshooting on page 87 for more
information.
Blinking - The inverter is being shut down.

AllLEDsturnonwhiletheinverterisbeingconfigured.
Figure 8: Inverter front view
