Connecting Communication to the Meter
Ifameterwasinstalled,connectittotheStorEdgeConnectionUnitasdescribedinthefollowingtable.
Fordetailedinformationrefertotheinstallationguidesuppliedwiththemeter.
Recommended cable type
(min-max AWG)
StorEdge Connection
Unit
Meter connection
RS485 24 AWG (16-24 AWG),
shielded twisted pair, 600V
insulated
Ext. Devices 7-pin terminal
block: B, A, G
RS485 4-pin terminal block: B, A, G

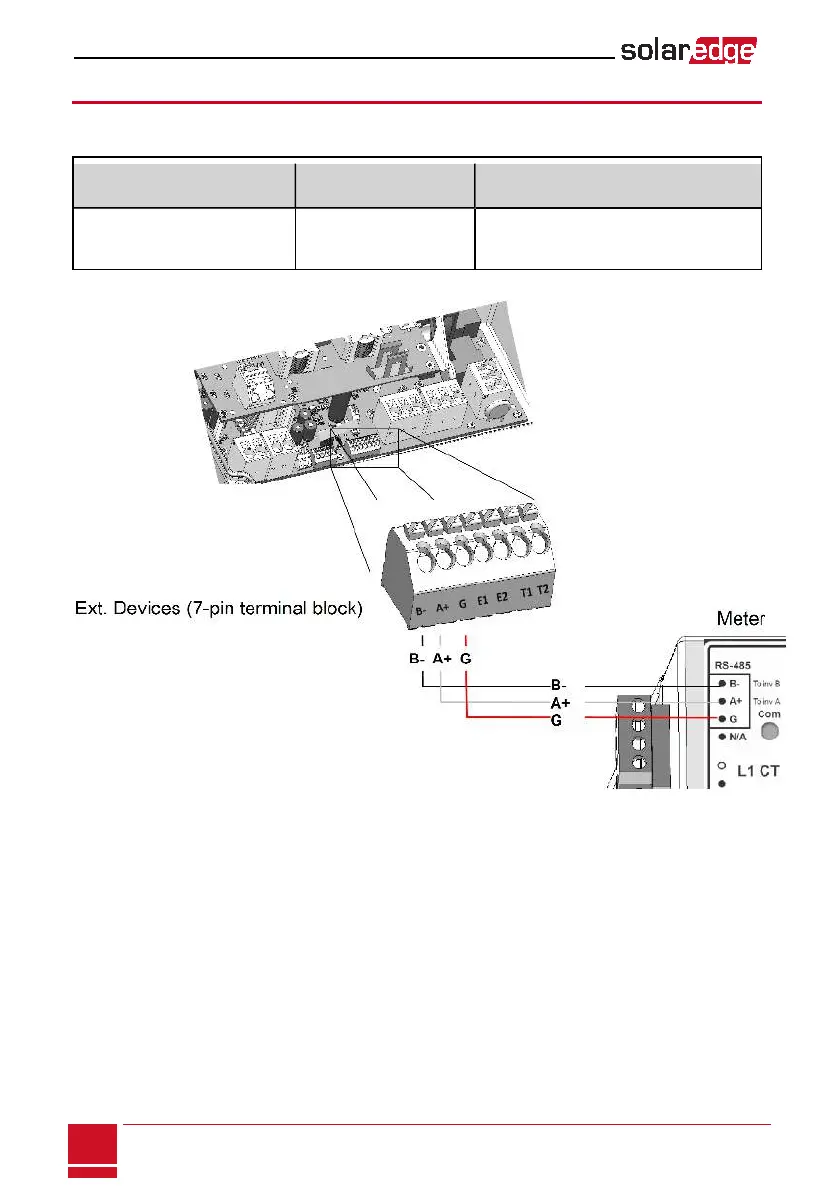

Connectasillustratedbelow:
Figure 24: Connection to a meter
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
40
Connecting Communication to the Meter
