Appendix E: Additional Battery Connections
Thisappendixprovidesadditionaloptionsforconnectingbatteriestotheinverter.
PayattentiontothewirecolorsandDIPswitchsetupofthebatteries(refertoDIPSwitchSetuponpage38).MakesurethefirstandlastdeviceontheRS485bus
isterminated.
Connection with One Battery
LG Chem RESU10H (StorEdge Connection Unit with 2 DIPSwitches)

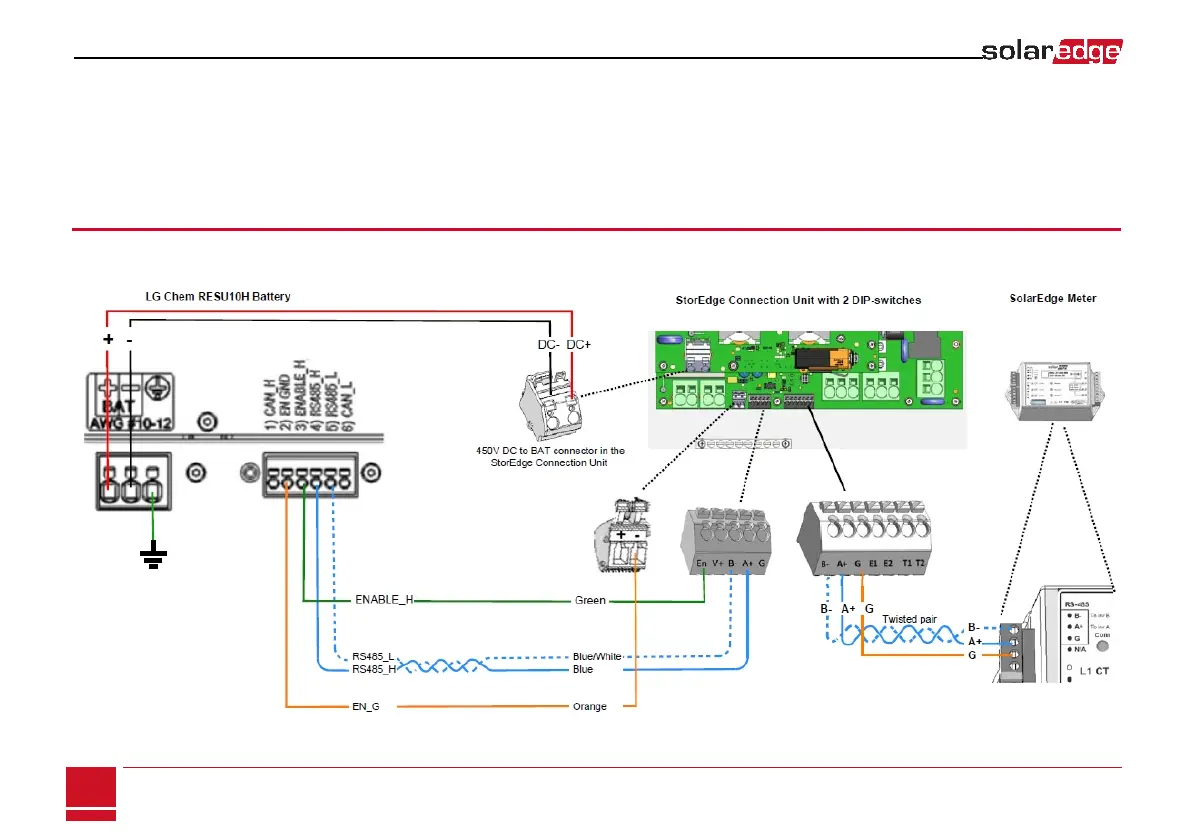

Figure 49: Connections to LG Chem RESU10H battery (StorEdge Connection Unit with two DIP-switches)
Appendix E: Additional Battery Connections
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
104
