ThefollowingfigureshowstheconnectionsintheStorEdgeConnectionUnit:


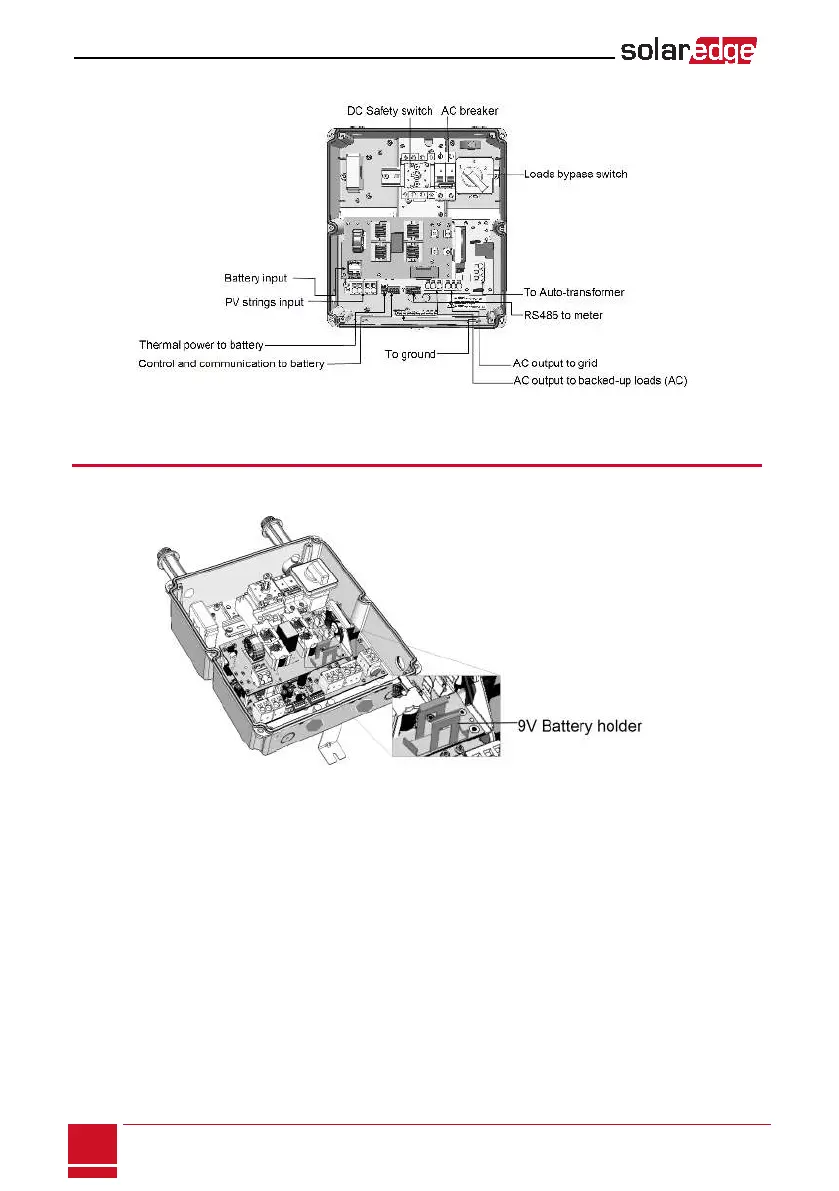

Figure 17: The StorEdge Connection Unit connections
Installing the 9VBattery and Fuses
A9Vbatteryissuppliedwiththeinverteraccessories.Installthe9Vbatteryintheholderonthetopboard
oftheStorEdgeConnectionUnitandconnectittothebatterypad.
Figure 18: The battery holder

SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
32
Installing the 9VBattery and Fuses
