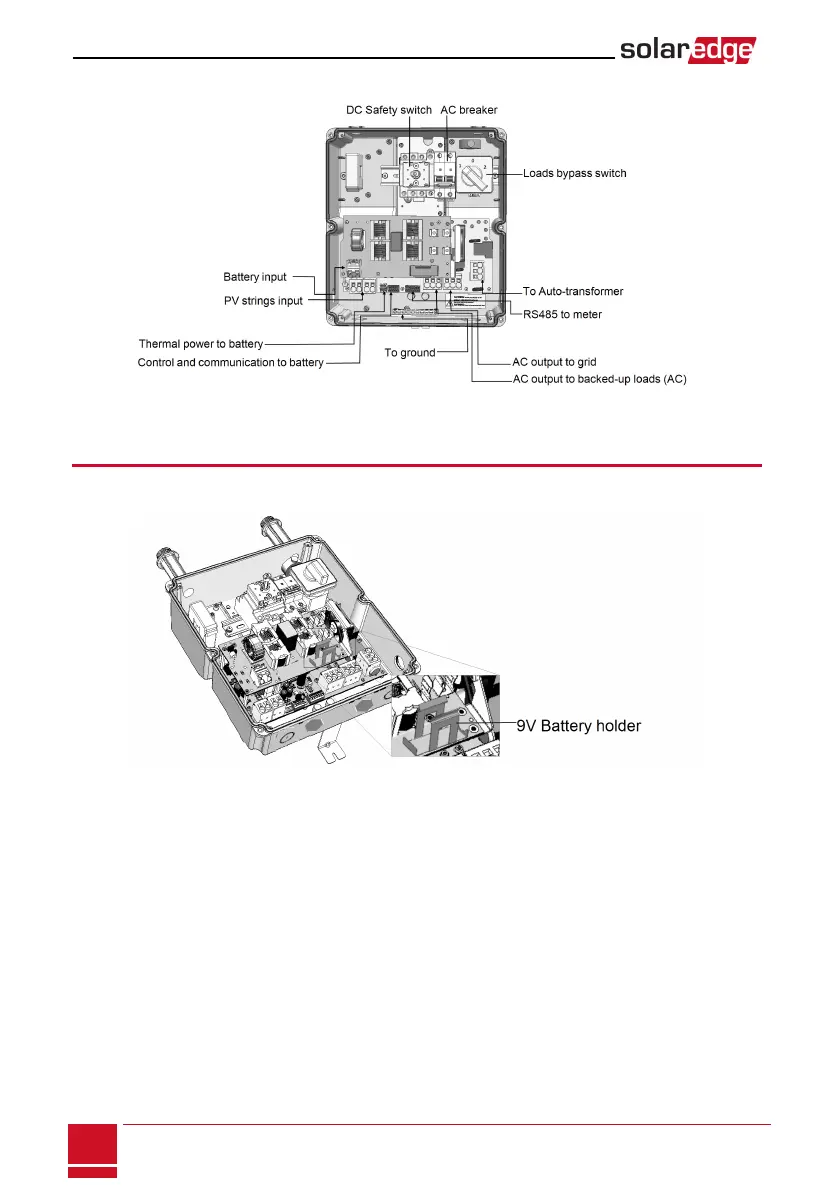

ThefollowingfigureshowstheconnectionsintheStorEdgeConnectionUnit:

Figure 17: The StorEdge Connection Unit connections
Installing the 9VBattery and Fuses
A9Vbatteryissuppliedwiththeinverteraccessories.Installthe9Vbatteryintheholderonthetopboard
oftheStorEdgeConnectionUnitandconnectittothebatterypad.
Figure 18: The battery holder

SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
32
Installing the 9VBattery and Fuses

SolarEdge storedge Specifications

General

Type	Hybrid Inverter
Topology	Transformerless
Battery Compatibility	LG Chem, Tesla Powerwall
Communication Interfaces	RS485, Ethernet
Frequency	50 Hz / 60 Hz
Operating Temperature	-25°C to 60°C
Cooling	Convection cooling
