SolarEdge storedge - Connecting PV Strings to the Inverter

Two25Afusesaresuppliedwithaccessoriesofthehighpowerinverters.Installthefusesintheholderson
thetopboardoftheStorEdgeConnectionUnit

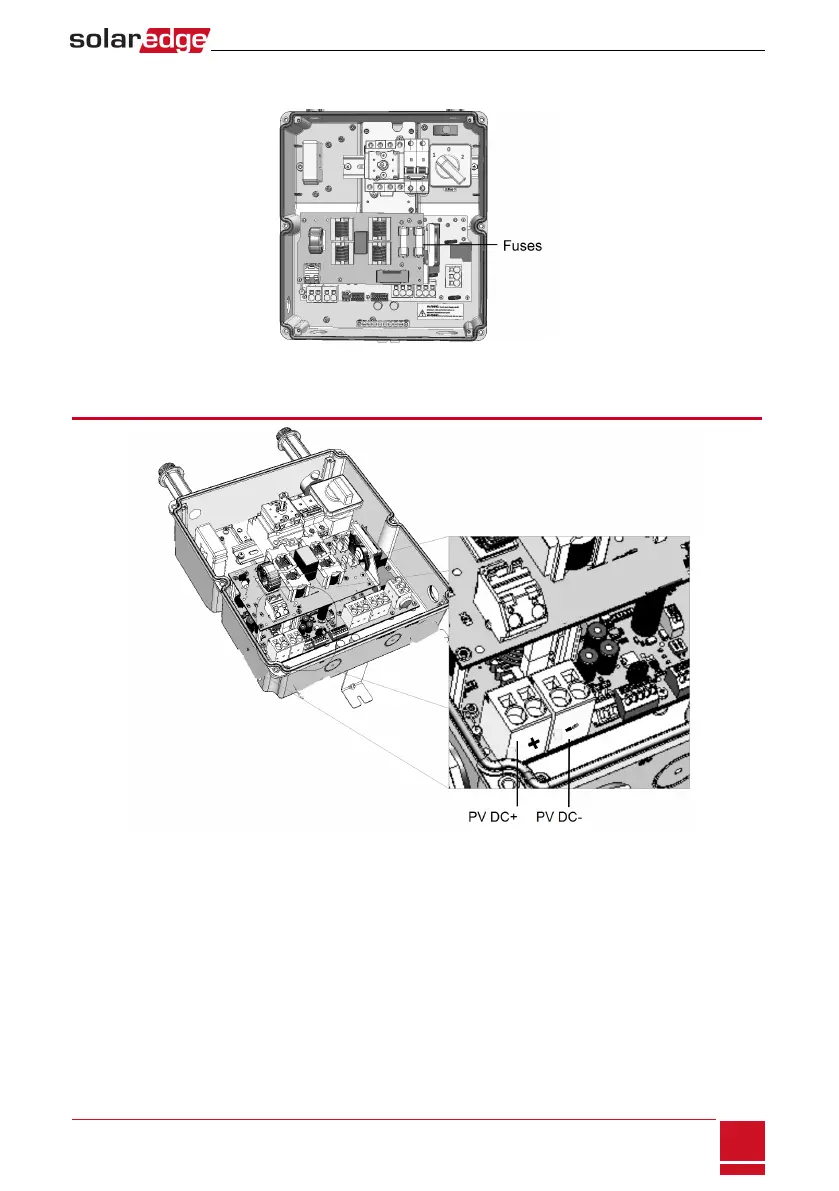

Figure 19: StorEdge Connection Unit fuses
Connecting the Strings to the Inverter

Figure 20: PV connection
1. VerifythattheACcircuitbreakerisOFF.
2. Strip5⁄16''(8mm)oftheDCwireinsulation.
3. InserttheDCconduitintotheDC-sideopening.Makesuretheconduitisfirmlyattachedtothe
inverterenclosureandsealedproperly.
