StorEdge Connection Unit LEDs
TherearethreeLEDsonthelowerboardoftheStorEdgeConnectionUnit,neartheDIPswitches:

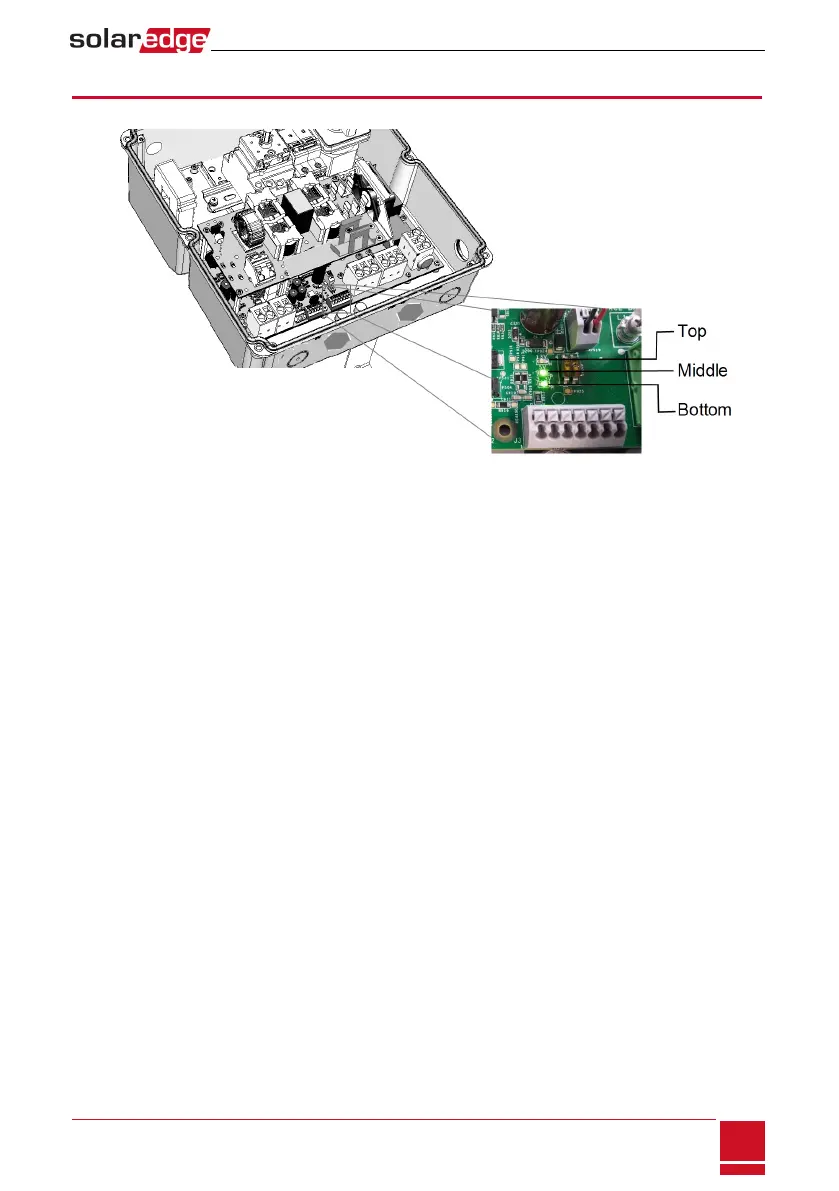

Figure 42: StorEdge Connection Unit LEDs
l Innormaloperation,themiddleandbottomLEDsindicateauxiliaryvoltages(13VfromDC/DC,5Vand
3.3V)andshouldalwaysbelit.
l ThetopLEDshouldbelitwhentheinverterDCvoltageisatleast200Vdc(checkwhenbothinverter
ON/OFFswitchandStorEdgeConnectionUnitswitchareON).Youcancheckthestatusscreenfor
theVdcvalue.
l IfallLEDsareOFF:

o
CheckthatACvoltageexistsintheinverter

o
CheckthatthecommunicationcablebetweentheStorEdgeConnectionUnitandthedigital
boardisproperlyconnected.
l IfthetopLEDisON,andmiddleandbottomLEDsareoff-aninternalfailurehasoccurred.Contact
SolarEdgesupport.
Appendix A: Troubleshooting
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
91

SolarEdge storedge Specifications

General

Type	Hybrid Inverter
Topology	Transformerless
Battery Compatibility	LG Chem, Tesla Powerwall
Communication Interfaces	RS485, Ethernet
Frequency	50 Hz / 60 Hz
Operating Temperature	-25°C to 60°C
Cooling	Convection cooling
