SolaX Power X3-ULTRA Series User Manual

104
Operation on LCD

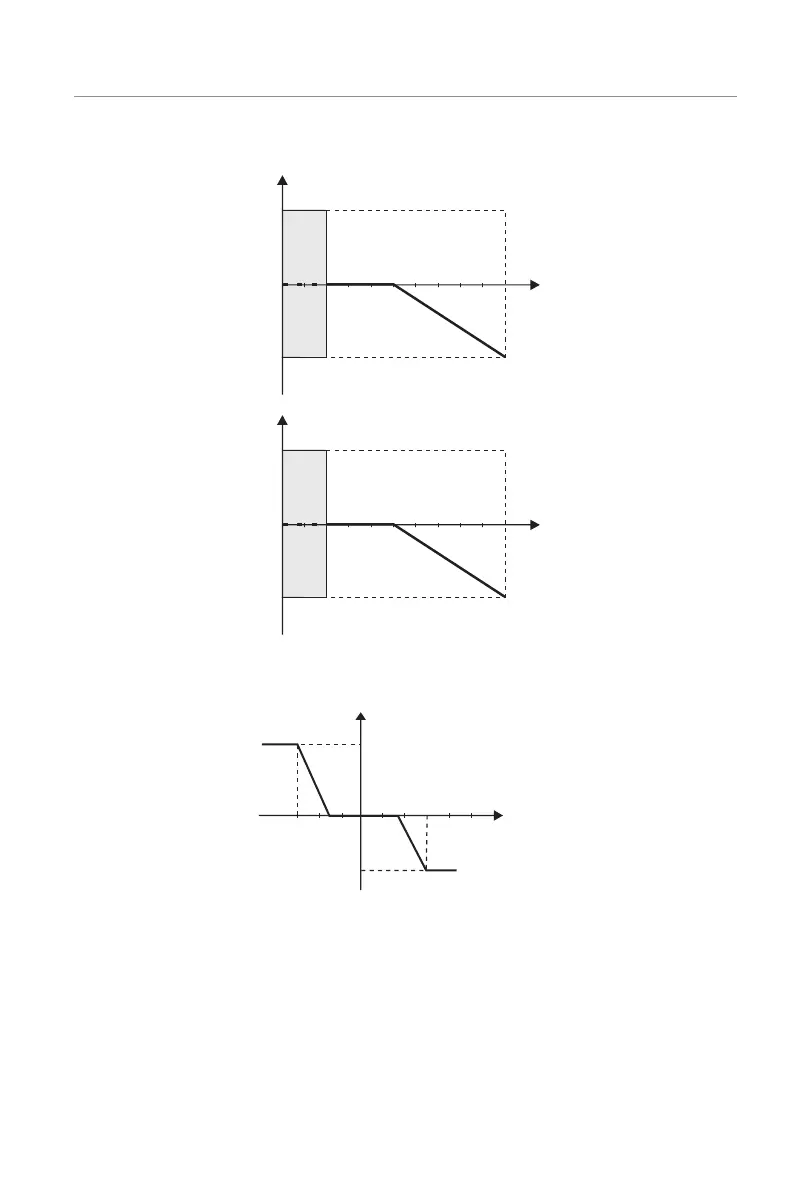

Power Factor is 0.90 at 1.0 power.
cos Ø
0.95
0.95
P/PEmax
0.2 0.5 1.0
Leading
Lagging
Over-ExictedUnder-Exicted
Curve B
cos Ø
0.9
0.9
P/PEmax
0.2 0.5 1.0
Leading
Lagging
Over-ExictedUnder-Exicted
Curve C
»
*) Depend on the required Q capacity
V
Q
Qmax
-Qmax
V1 V2
V3 V4
V1=1.10Vn
V2=1.08Vn=QuVlowRate
V3=0.90Vn
V4=0.92Vn=QuVlowRate
Setting Pu Function
(Applicable to specific countries, please refer to local grid requirements.)
The PU function is a volt-watt response mode required by certain national standards such
as VDE 4105. This function can control the active power of the inverter according to the
grid voltage. You can set Response Voltage, 3Tau, PuPower, 3Tau_Charge and Pu Type.
