54
Electrical Connection
Wiring procedures
WARNING!
• The terminal caps of unused terminals should not be removed. Keep the terminal
caps in a safe place if batteries are connected to the inverter. Reinstall the caps after
removing the connectors from terminals.
NOTICE!
• The power cable of battery is in the battery accessory pack. NOT in the scope of
inverter's delivery.

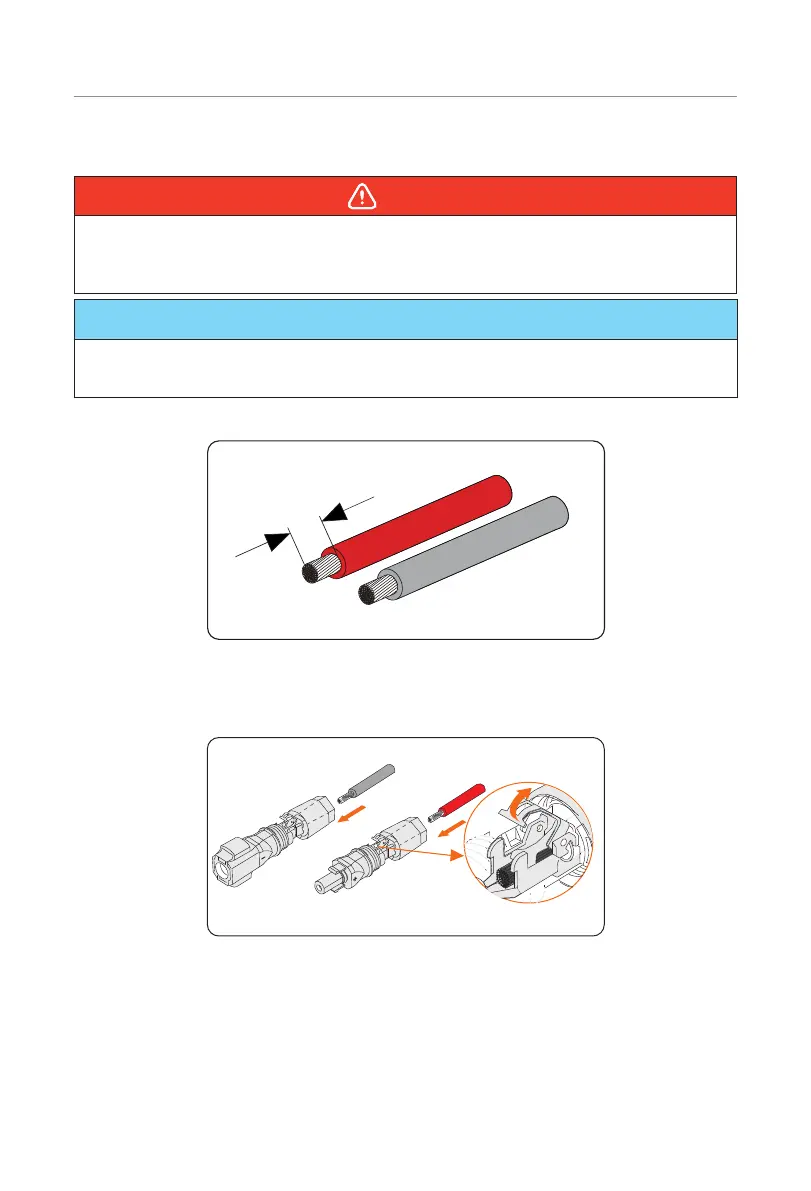

Step 1: Strip approx. 15 mm of the cable insulation.
15 mm
+
-
Figure 7-25 Striping the battery cable
Step 2: Open the spring. Carefully insert the stripped wire with twisted litz wires all the
way in. The litz wire ends have to be visible in the spring.
-
+
Figure 7-26 Opening the spring
To Next Page
