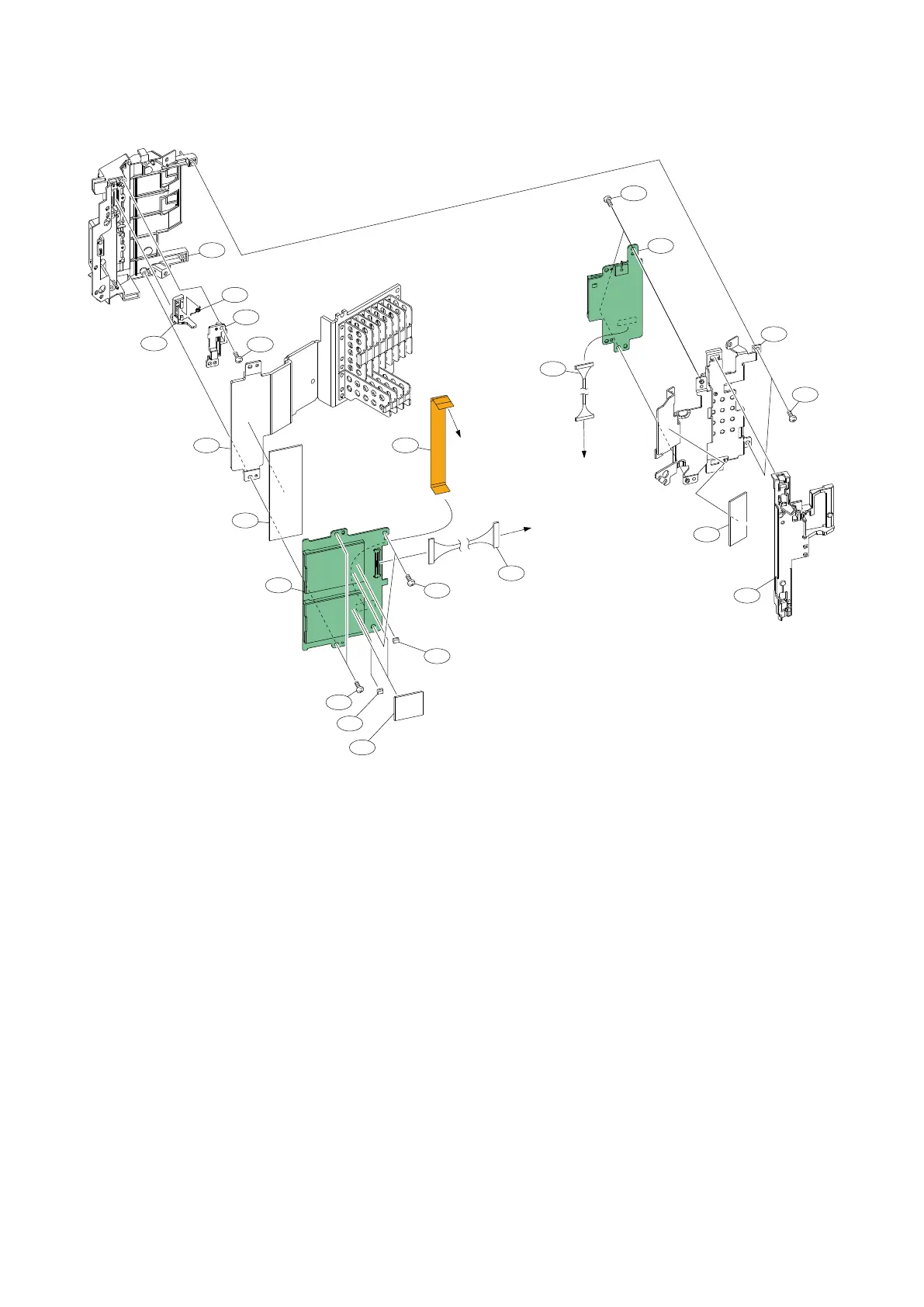

Media Assembly
No. Part No. SP Description
1201 A-2228-390-A s MOUNT, EC-94
1202 A-5002-394-A s SD-74 MOUNT
1203 X-5000-838-1 s ASSY, HEATSINK MEDIA
1204 X-5000-839-1 s ASSY, MEDIA GND PLATE
1205 X-5000-853-1 s ASSY, MEDIA CABINET
1206 1-002-297-11 s HARNESS(EC-DIF-40P)
1207 1-002-300-11 s HARNESS(SD-DPR-30P)
1208 1-002-366-11 s CABLE, FLEXIBLE FLAT (20 CORE)
1209 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2
1210 3-080-206-21 s SCREW, TAPPING, P2
1211 4-272-357-01 s GASKET (P(389))
1212 5-008-661-01 s CLAMPER, MEDIA CABLE
1213 5-008-662-01 s LEVER, DETECTION SWITCH
1214 5-008-665-01 s HOLDER, DETECTION SWITCH LEVER
1215 5-008-768-01 s SPRING, DETECTION SWITCH
1216 5-008-790-01 s SHEET, RADIATION (MEDIA)
1217 5-008-791-01 s CUSHION, GRAPHITE (MEDIA)
1218 5-008-792-01 s SHEET, RADIATION (MEDIA REAR)
To DIF-278 board
To DPR-394 board
To DIF-278 board
1214
1215
1210
1213
1205
1203
1216
1201
1210
1210
1208
1206
1211
1211
1217
1209
1202
1207
1218
1204
1210
1212
