2-4-4. VSW-82 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
4. Remove the SS-108 board. (Refer to “2-4-2. SS-108 Board”.)
5. Remove the TG, SEC board assembly. (Refer to “2-4-3. TG, SEC Board Assembly”.)
Procedure

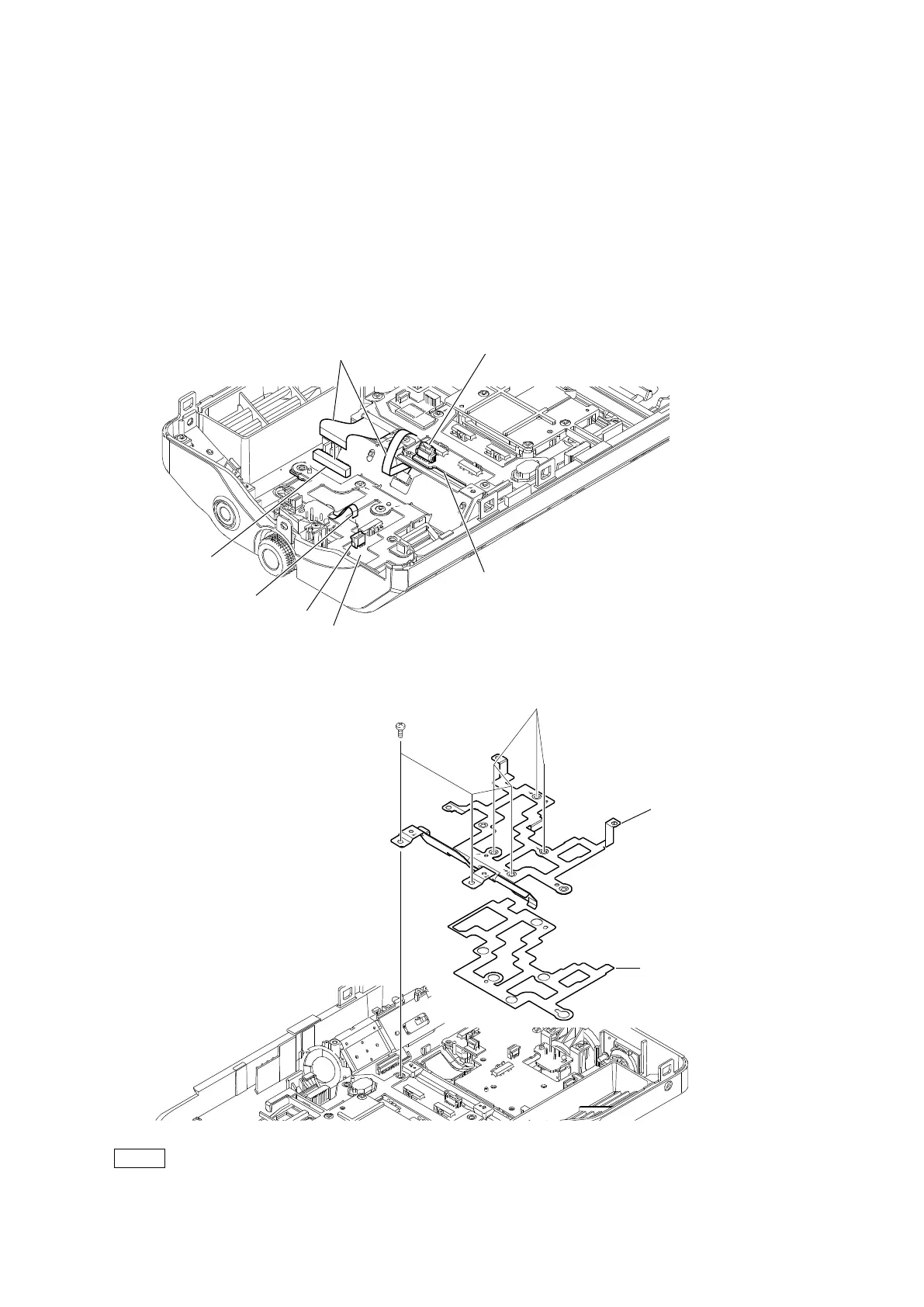

1. Disconnect the flexible flat cables from the two connectors (CN003, CN005) on the VSW-82 board.
2. Disconnect the flexible flat cable from the connector (CNB009) on the KSW-72 board.
3. Remove the six screws, and then detach the inside front plate and the VSW insulation sheet.
Note
At the time of the installation, tighten the screws in the following sequence: (a), (b), others.
Flexible flat cables
Flexible flat cable
CNB009
KSW-72 board
VSW-82 board
CN005
CN003
PTP2 x 5
(a)
(b)
VSW insulation sheet
Inside front plate
