SON PXW-FX9V - Panel Module

86
2-15-2. Panel Module
Preparation
1. Remove the PD-129 board. (Refer to “2-15-1. PD-129 Board”.)
Procedure

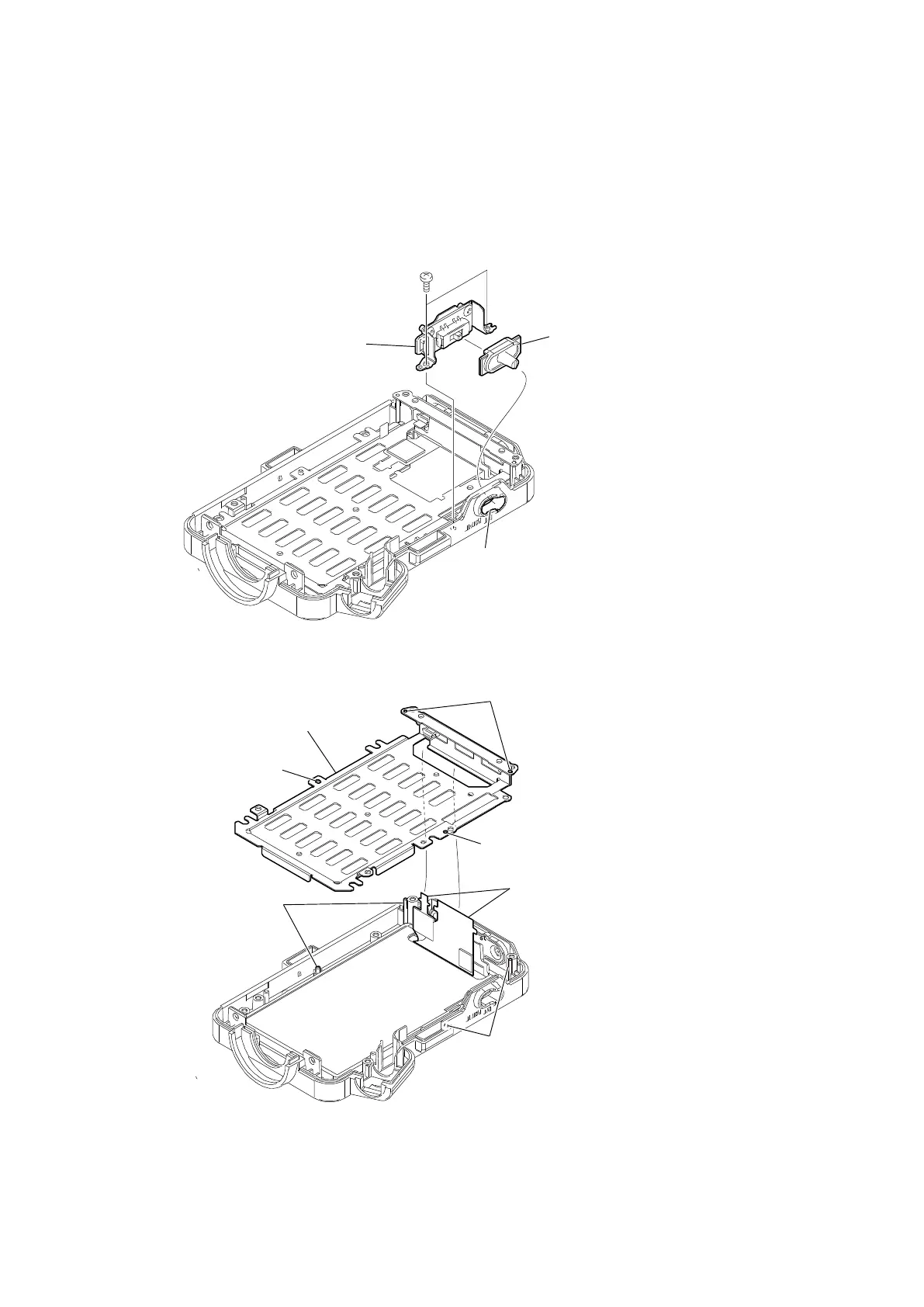

1. Remove the two screws, and then remove the PR-340 board assembly and the panel mirror lever.
2. Remove the LCD retainer assembly.
PR-340 board assembly
Panel mirror lever
Hole
PTP2 x 5
Holes
Hole
Flexible boards
Bosses
Bosses
Hole
LCD retainer assembly
