SON PXW-FX9V - Input;Output Signals

15

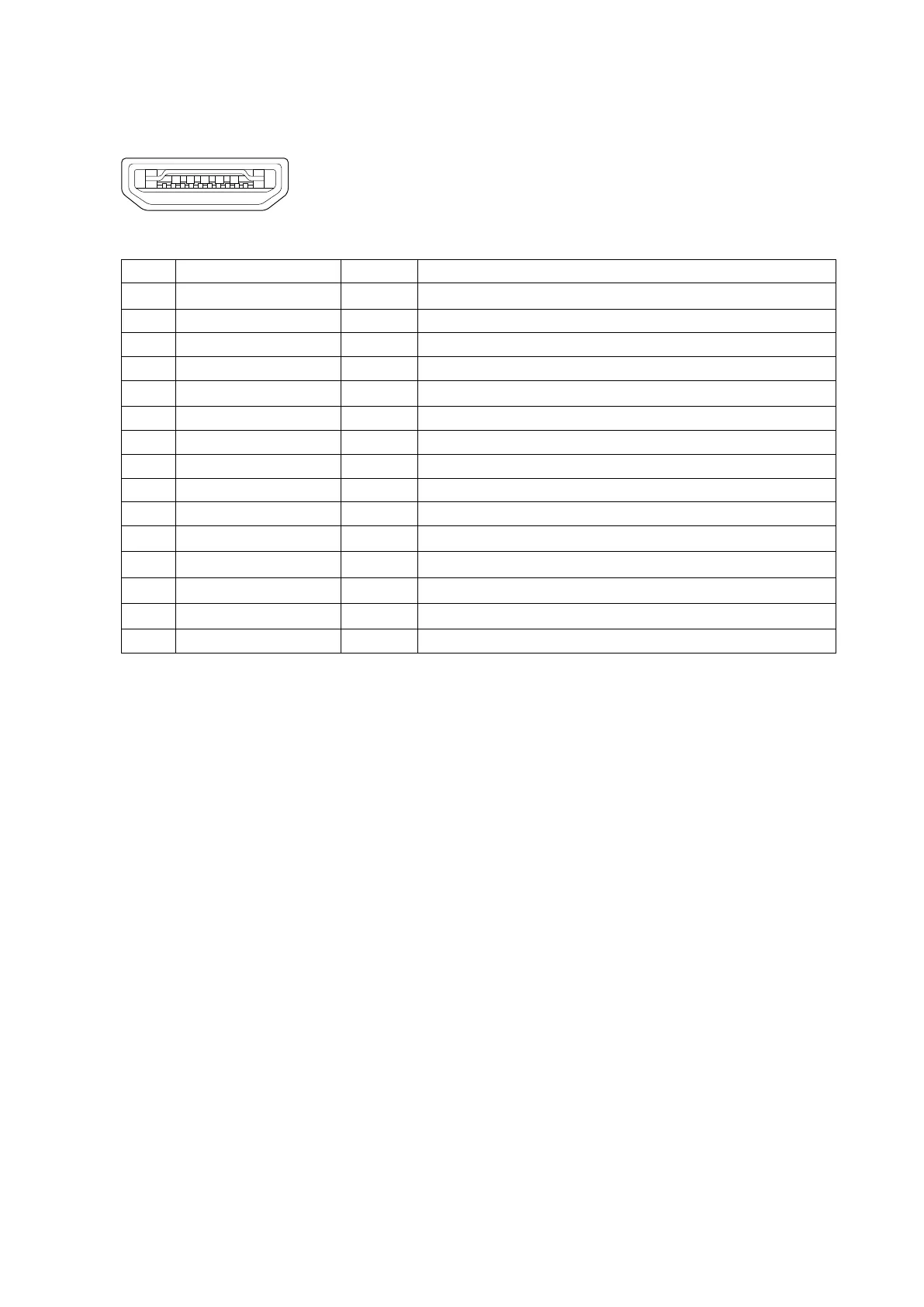

6. USB/MULTI
Multi/micro USB
No.
Signal
I/O
Specifications
1
USB_VBUS
IN
＋
5V power (input)
2
USB D-
IN/OUT
USB Data- signal
3
USB D+
IN/OUT
USB Data+ signal
4
USB_ID
IN
OTG identification signal (not used)
5
GND
—
GND
6
D_3.3V
OUT
7
XRESET_REQ
IN
Camera power On/Off control (for debugging)
8
UART_TX
IN/OUT
UART TX for multi-connector
9
UART_RX
IN/OUT
UART RX for multi-connector
10
AD_JACK_IN
IN
AD signal for determining accessory type
11
ROUT/XAELOCK
—
Not used
12
LOUT/XSHUT
—
Not used
13
V_LINE_OUT
—
Not used
14
GND
—
GND
15
XPWR_ON
OUT
Camera power On/Off control (for debugging)
1-5-3. Input/Output Signals
7. GENLOCK IN/REF OUT
BNC type 1.0 V p-p, 75 ohms
GENLOCK IN/HD-SYNC OUT selectable
8. TC IN / OUT
BNC type
• TC IN
0.5 to 18 V p-p, 3.3 k ohms
• TC OUT
1.0 V p-p, 75 ohms
TC IN/TC OUT selectable
-External View-
1
615
5
