2-7. DPR-394 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
4. Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.)
5. Remove the front assembly. (Refer to “2-6. Front Assembly”.)

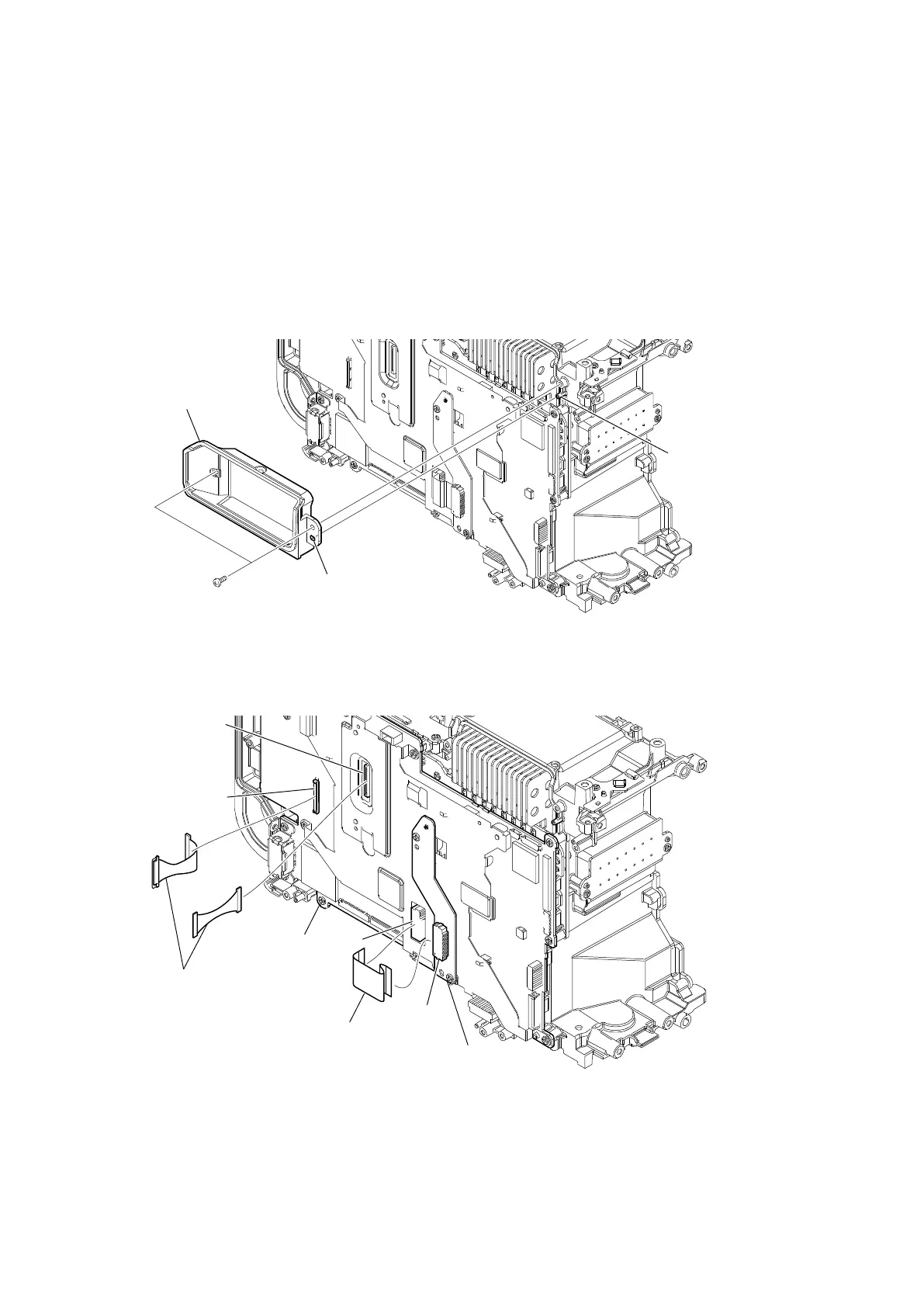

Procedure
1. Remove the two precision screws, and then remove the EXT duct.
2. Disconnect the fine-wire coaxial cables from the two connectors (CN9301, CN9302) on the DPR-394 board.
3. Disconnect the flexible flat cable from the connector (CN9201) on the DPR-394 board and from the connector (CN4001) on the
CT-289 board.
EXT duct
Hole
Precision screws
(P2 x 4)
Boss
Fine-wire coaxial cables
Flexible flat cable
DPR-394 board
CT-289 board
CN4001
CN9302
CN9201
CN9301
To Next Page
