2-12. DD-55 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
4. Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.)
5. Remove the front assembly. (Refer to “2-6. Front Assembly”.)
6. Remove the DPR-394 board. (Refer to “2-7. DPR-394 Board”.)
7. Remove the DC fan. (Refer to “2-8. DC Fan”.)
8. Remove the media assembly. (Refer to “2-9. Media Assembly”.)
9. Remove the rear assembly. (Refer to “2-10. Rear Assembly”.)
10. Remove the DIF-278 board. (Refer to “2-11. DIF-278 Board”.)
Procedure
1. Remove the four precision screws, and then remove the DD-55 board from the connector (CN2001) on the RE-349 board in the
direction of the arrow.
2. Disconnect the flexible board from the connector (CN5005) on the DD-55 board.
3. Install the removed parts by reversing the steps of removal.
Installing position
of screws

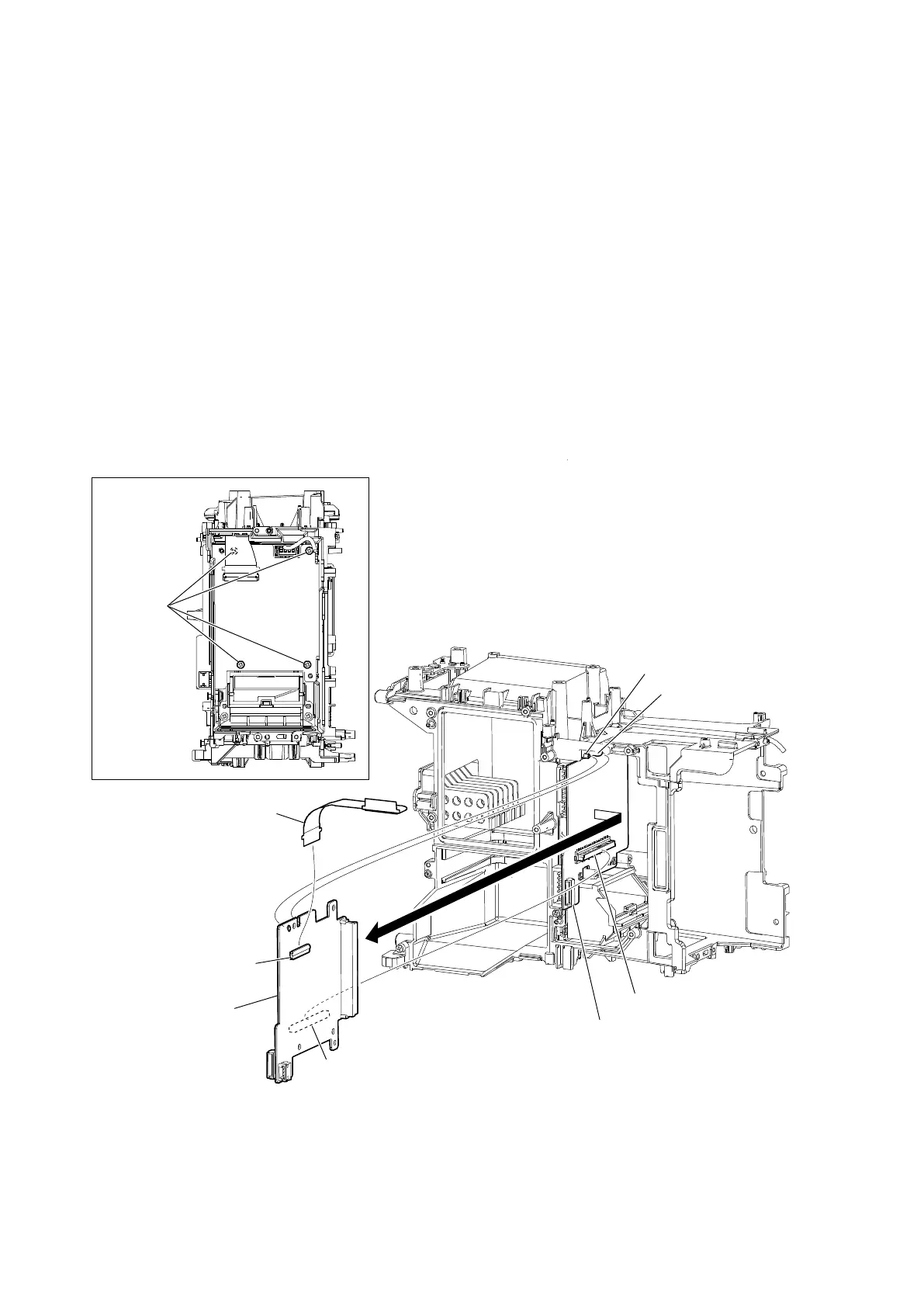

DD-55 board
CN5005
Flexible board
Boss
Projection
CN5002
CN2001
RE-349 board
Precision screws
(P2 x 4)
