2-14-2. GP-1019 Board, HN-449 Board

Preparation

1. Remove the handle upper cabinet assembly. (Refer to “2-14-1. Handle Upper Cabinet Assembly”.)

Procedure

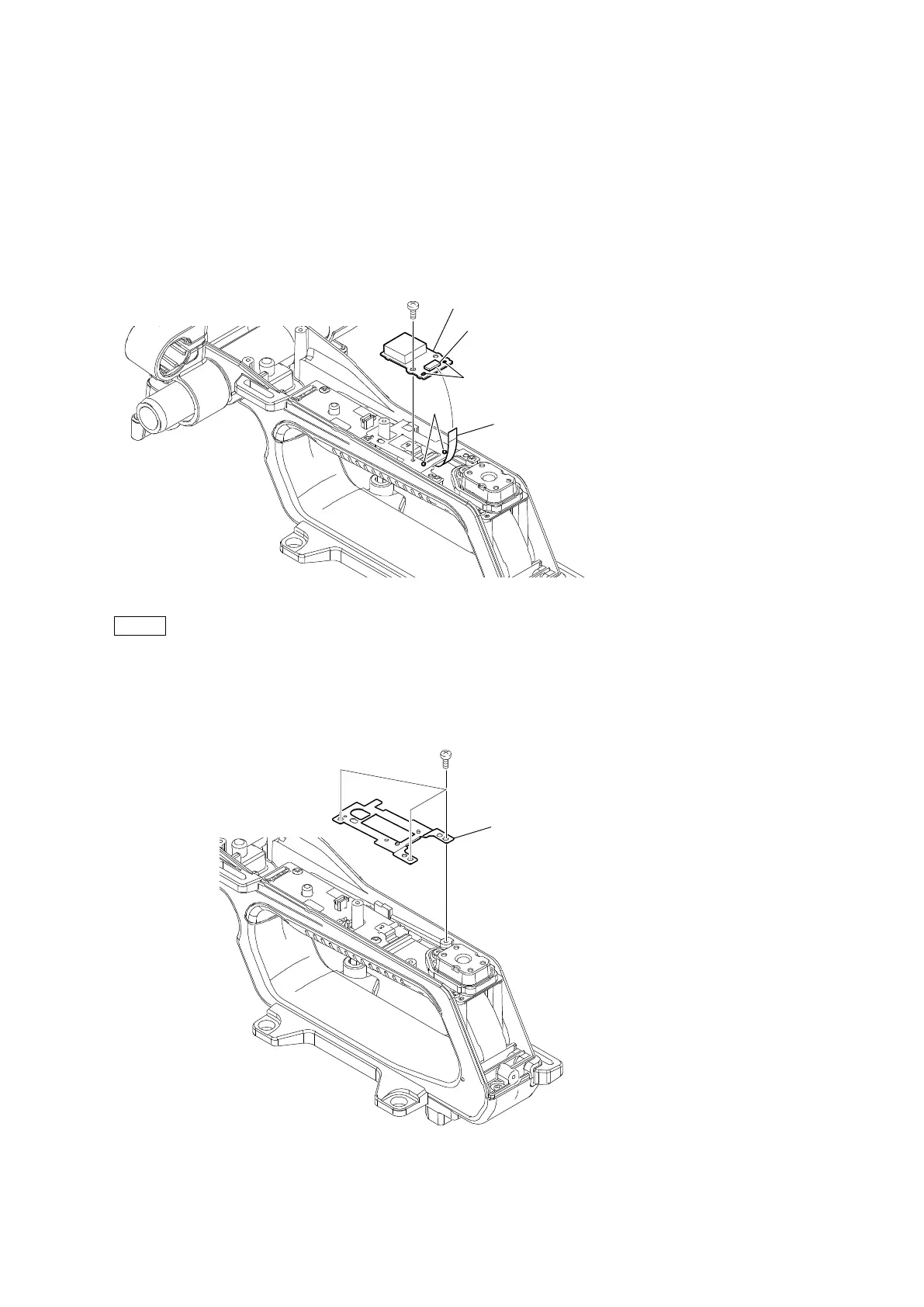

1. Disconnect the flexible board from the connector on the GP-1019 board.

2. Remove the precision screw, and then remove the GP-1019 board.

Note

At the time of the installation, make sure that the two bosses shown in the figure are inserted firmly into the two holes on the

GP-1019 board.

3. Remove the three precision screws, and then remove the bracket (GP).

Holes

Bosses

Precision screw

(P2 x 4)

GP-1019 board

Connector

Flexible board

Bracket (GP)

Precision screws

(P2 x 4)
