2-4-2. SS-108 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
Procedure

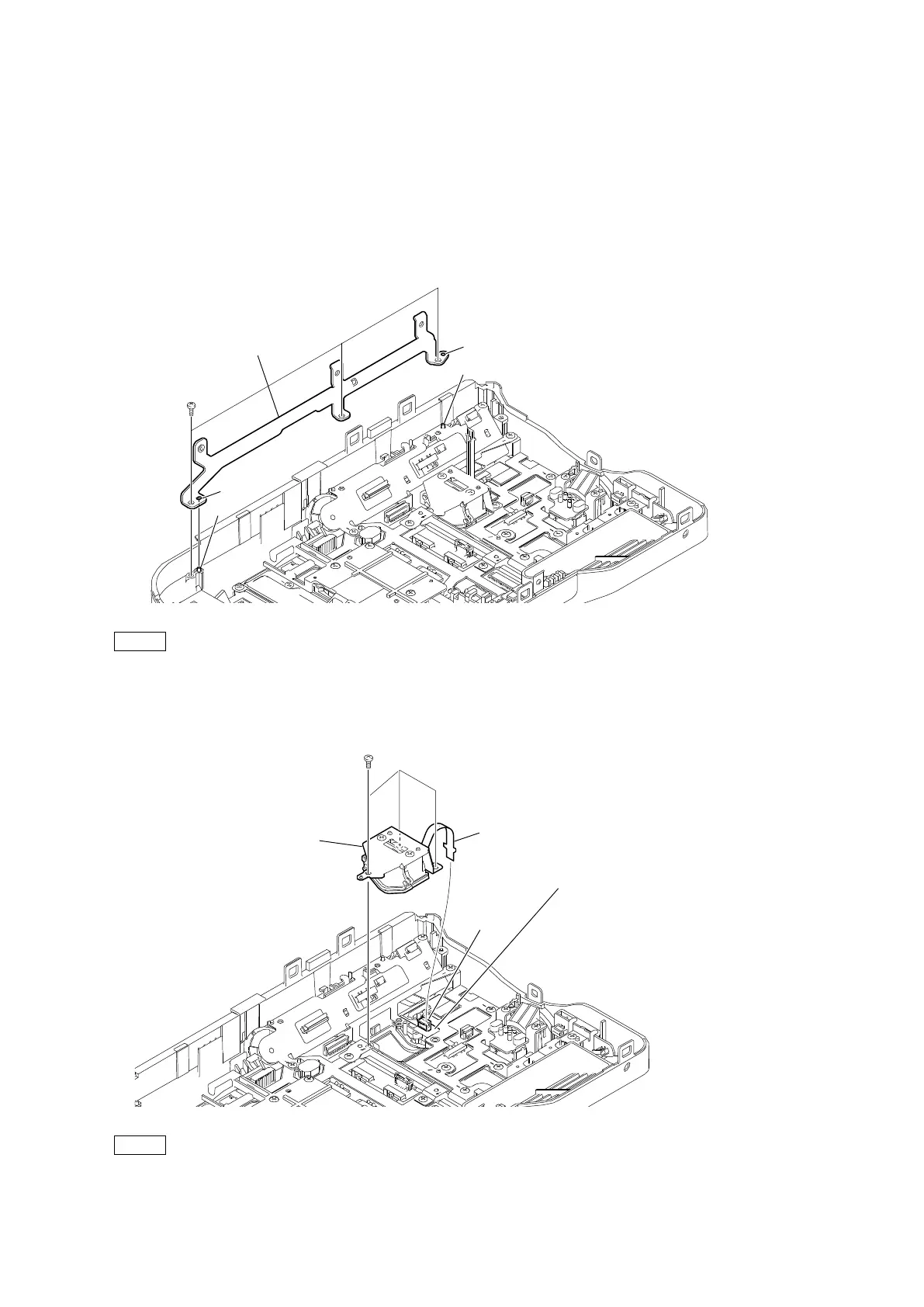

1. Remove the three screws, and then remove the inside top plate.
Note
At the time of the installation, tighten the screws in the following sequence: (a), (b), (c).
2. Disconnect the flexible board from the connector (CN005) on the VSW-82 board.
3. Remove the three screws, and then remove the control switch block (ID95700).
Note
At the time of the installation, tighten the screws in the following sequence: (a), (b), (c).
PTP2 x 5
Hole
(c)
(a)
(b)
Boss
Inside top plate
Hole
Boss
PTP2 x 5
VSW-82 board
(a)
(b)
(c)
Flexible board
Control switch block
(ID95700)
CN005
To Next Page
