SON PXW-FX9V - Exploded Views; Overall-1

94

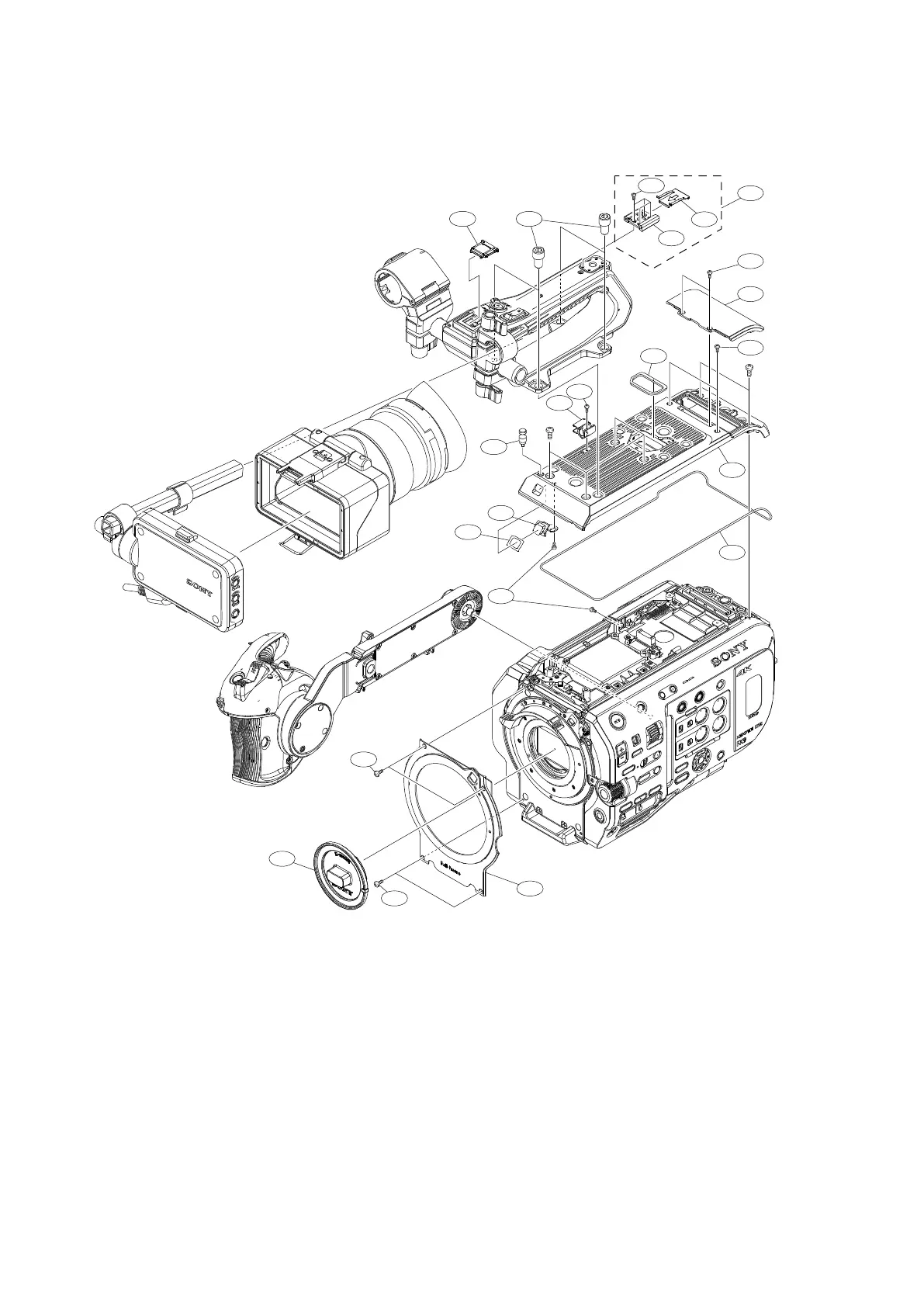

5-2. Exploded Views
Overall-1
No. Part No. SP Description
1 A-5012-247-A s BOB LID ASSY
2 X-2188-877-5 s COLD SHOE KIT
3 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2
4 3-069-286-04 s SHOE, ACCESSORY
5 3-288-615-03 s SPRING, SHOE
6 4-269-040-01 s HOOK, MEGEYAR
7 4-438-734-12 s SHOE CAP (875)
8 4-562-604-11 s BOLT(1/4-20 UNC),HOLE HEXAGON
9 4-579-745-01 s CLAMP (964), CABLE
10 4-686-328-01 s BODY CAP
11 4-737-449-01 s TUBE, SILICON (1.3)
12 5-008-647-01 s CABINET, FRONT COVER
13 5-008-703-01 s TALLY, REC (FRONT)
14 5-008-763-01 s CABINET, TOP
15 5-008-822-01 s CUSHION , FRONT TALLY
16 5-008-823-01 s CUSHION, WP TOP
7-683-404-04 s BOLT,HEXAGON SOCKET 3X8
B3 x 8
B3 x 8
7
4
5
1
3
3
9
3
6
13
15
12
10
16
2
14
11
8
3
3
3
3
