2-3-2. AXM-62 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
Procedure
1. Disconnect the fine-wire coaxial cable from the connector (CN201) on the VIO-38 board.
2. Release the fine-wire coaxial cable from the four hooks of the XLR cabinet.
3. Remove the seven precision screws.
4. Disconnect the flexible flat cable from the connector (CN1002) on the ASW-69 board.
5. Remove the XLR assembly.

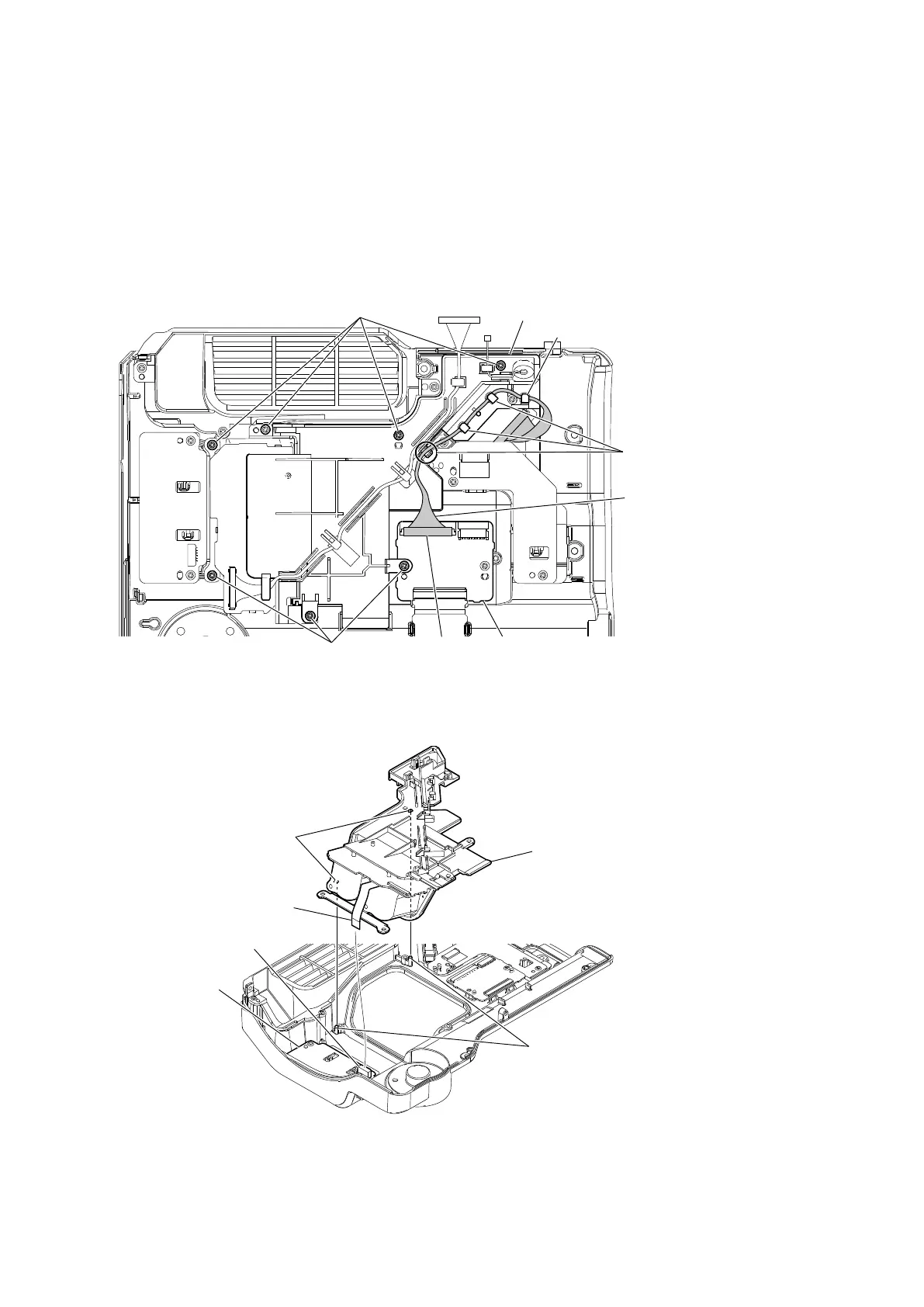

XLR cabinet
Precision screws (P2 x 4)
Precision screws (P2 x 4)
Hook
Hooks
Fine-wire coaxial cable
VIO-38 boardCN201
XLR assembly
Bosses
Holes
Flexible flat cable
ASW-69 board
CN1002
To Next Page
