2-3-4. JK-108 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the XLR assembly. (Refer to “2-3-2. AXM-62 Board”.)

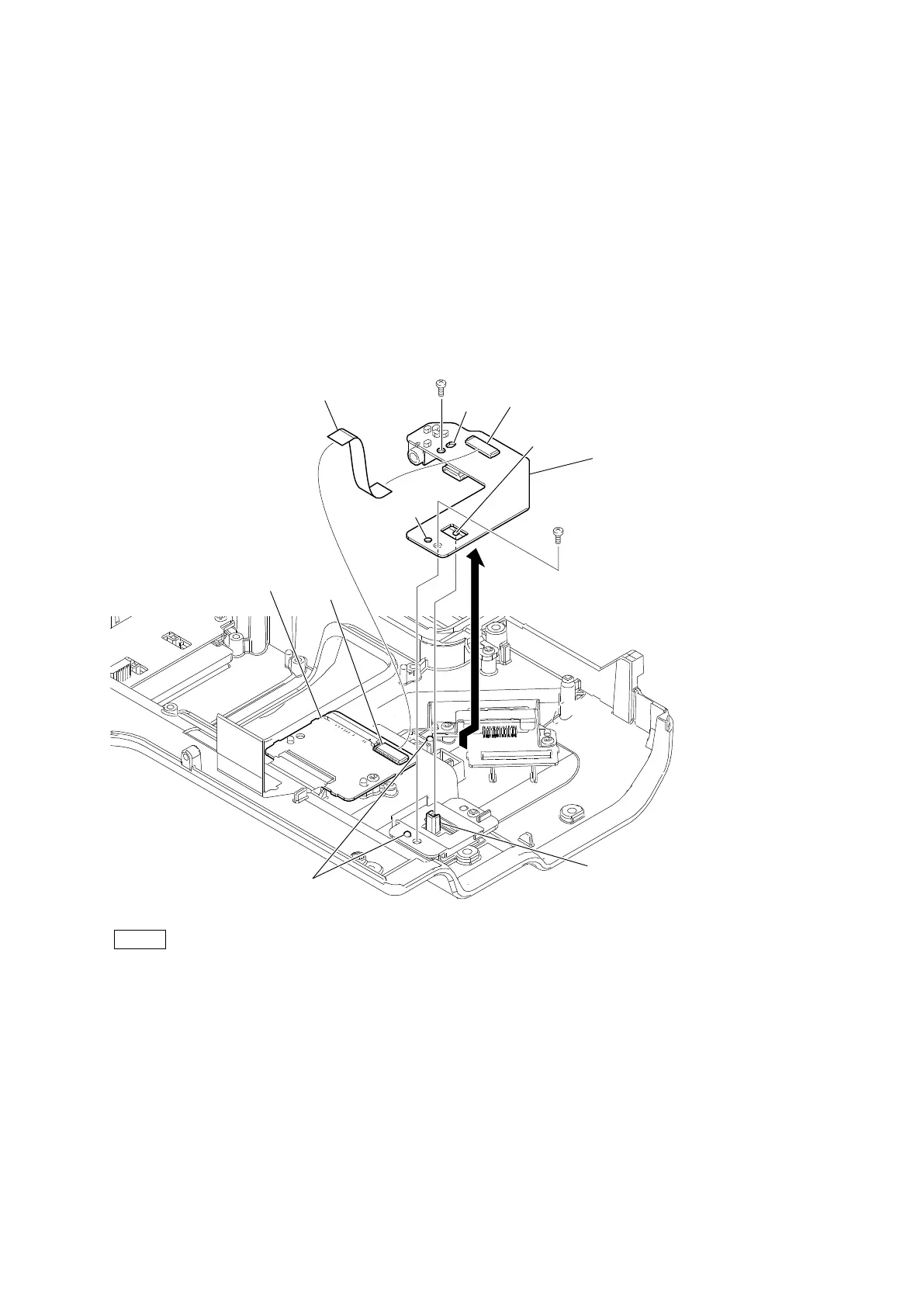

Procedure
1. Disconnect the flexible flat cable from the connector (CN202) on the VIO-38 board.
2. Remove the two precision screws, and then release the two holes of the JK-108 board from the two bosses.
3. Remove the JK-108 board in the direction of the arrow.
4. Disconnect the flexible flat cable from the connector (CN9001) on the JK-108 board.
Note
When installing the JK-108 board, align the switch with the lever.
5. Install the removed parts by reversing the steps of removal.
Precision screw
(P2 x 4)
Switch
JK-108 board
CN9001
Hole
Hole
Flexible flat cable
Bosses
Lever
VIO-38 board
CN202
Precision screw
(P2 x 4)
To Next Page
