2-15. VF Assembly
2-15-1. PD-129 Board

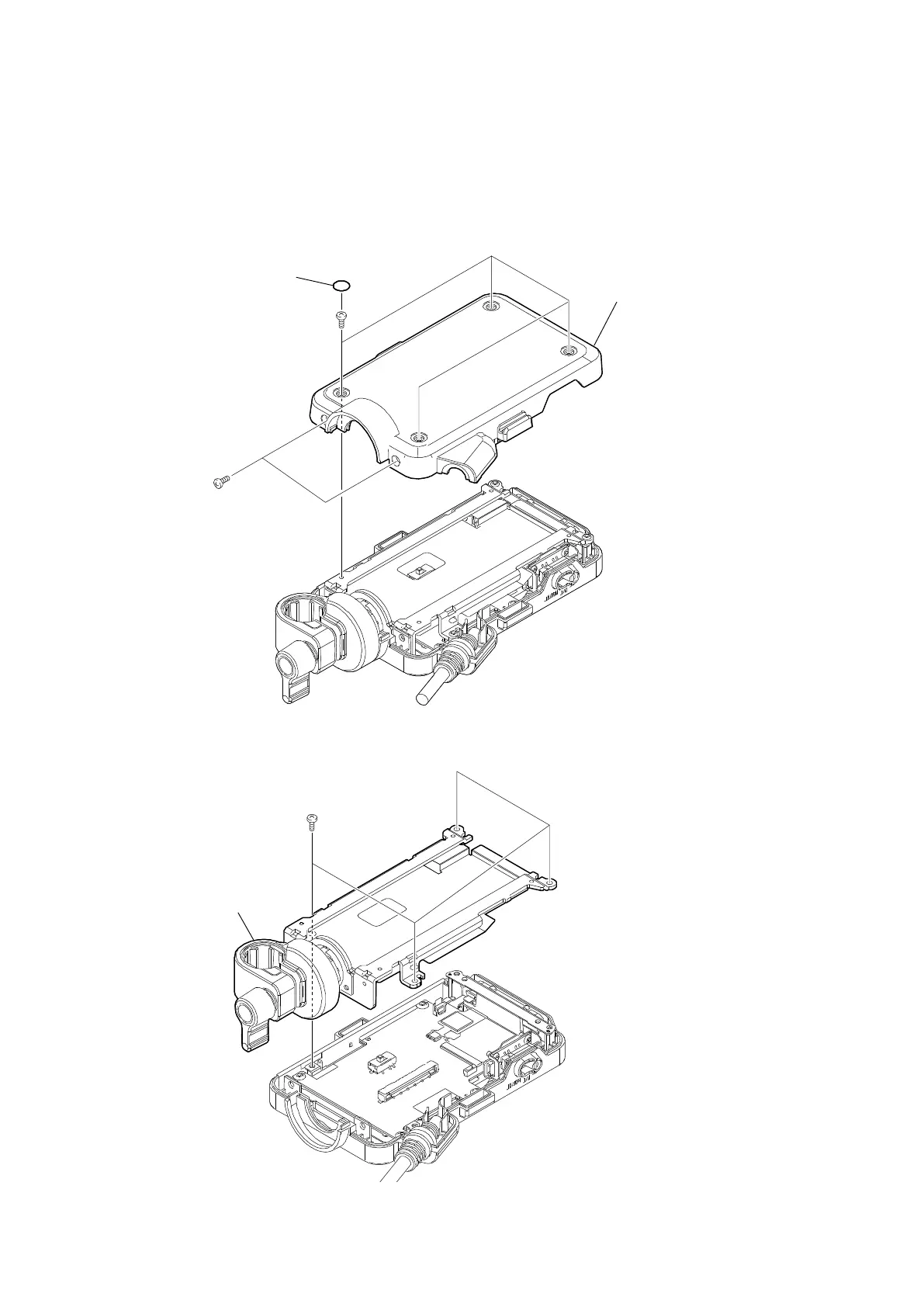

Procedure
1. Detach the four panel blind sheets.
2. Remove the six precision screws, and then remove the P cabinet.
3. Remove the four screws, and the remove the panel frame assembly.
Precision screws
(P2 x 4)
Precision screws
(P2 x 4)
P cabinet
Panel blind sheets
PTP2 x 5
Panel frame assembly
