SON PXW-FX9V - Input Signals; Output Signals

14

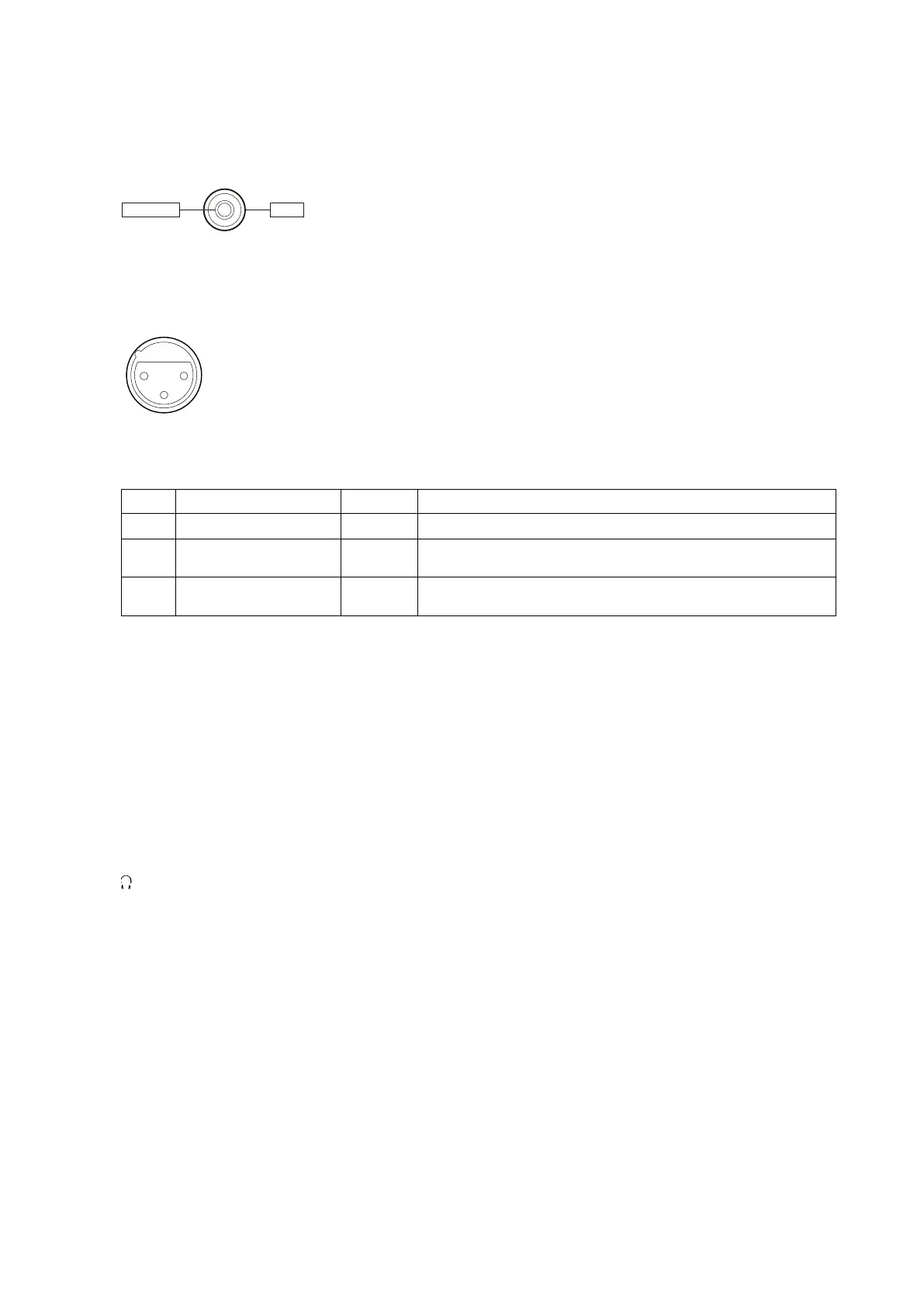

1-5-1. Input Signals
1. DC IN
DC jack
2. AUDIO INPUT 1/2
No.
Signal
I/O
Specifications
1
GND
—
GND
2
XLR HOT
IN
LINE: +4 dBu/0 dBu/-3 dBu (/EBUL)/10 k ohms
MIC: -80 dBu to -30 dBu/3 k ohms
3
XLR COLD
IN
LINE: +4 dBu/0 dBu/-3 dBu(/EBUL)/10 k ohms
MIC: -80 dBu to -30 dBu/3 k ohms
LINE/MIC/MIC+48V selectable
1-5-2. Output Signals
3. SDI OUT 1
BNC type
12G/3G/HD selectable
4. SDI OUT 2
BNC type
3G/HD selectable
5. (Headphone)
Stereo mini jack
–16 dBu (Volume: Max, reference level output 16 ohms loaded)
- External View -
GNDEX
T
DC
1
2
3
- External View -
(0 dBu = 0.775 V rms)
XLR 3-pin, Female
