2-10. Rear Assembly
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.)
3. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
4. Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.)
5. Remove the front assembly. (Refer to “2-6. Front Assembly”.)
6. Remove the DPR-394 board. (Refer to “2-7. DPR-394 Board”.)
7. Remove the DC fan. (Refer to “2-8. DC Fan”.)
8. Remove the media assembly. (Refer to “2-9. Media Assembly”.)
Procedure

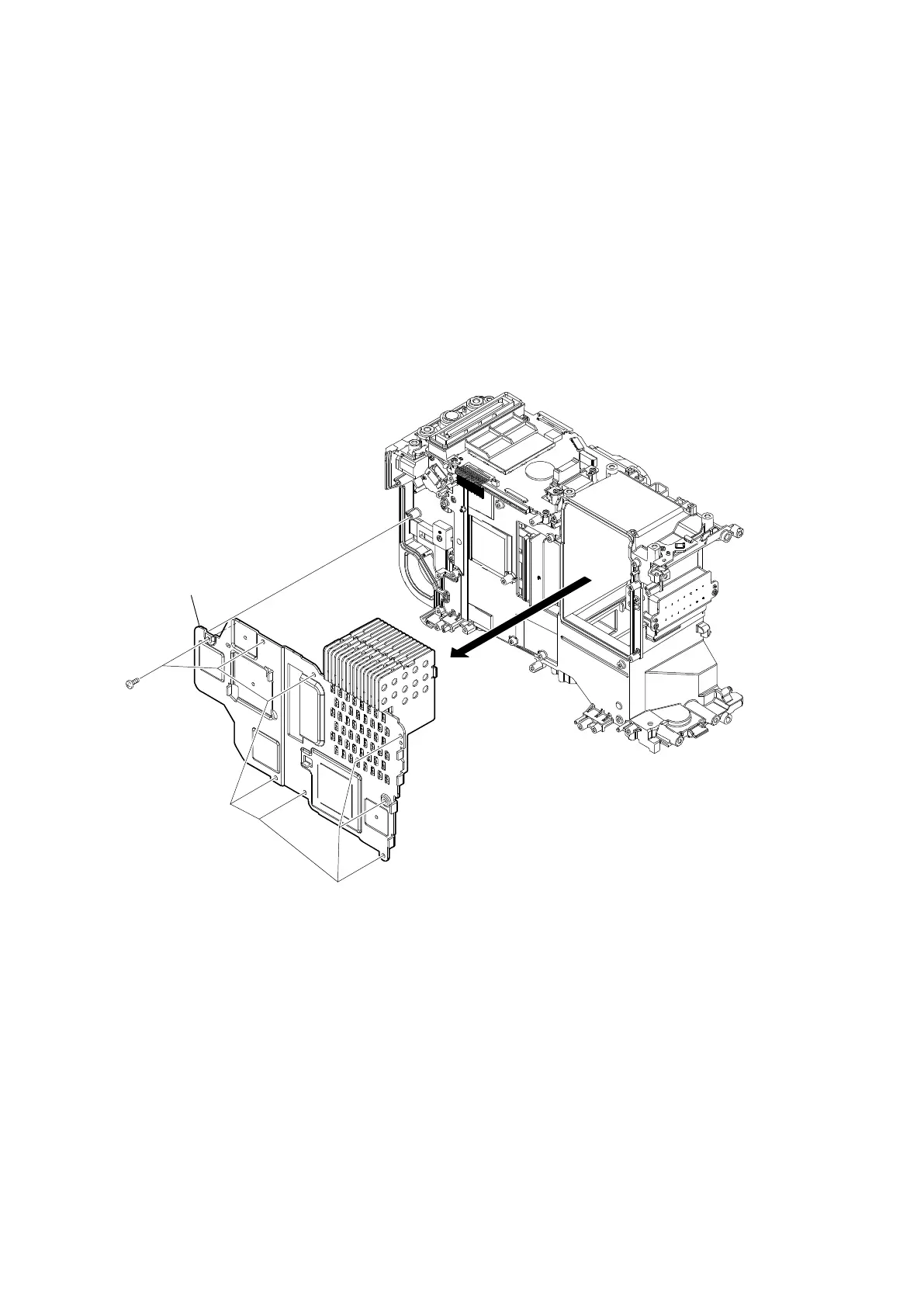

1. Remove the eight precision screws, and then remove the DPR radiation assembly.
Precision screws
(P2 x 4)
DPR radiation assembly
