2-9-1. SD-74 Board
Preparation
1. Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.)
2. Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.)
3. Remove the DC fan. (Refer to “2-8. DC Fan”.)
4. Remove the media assembly. (Refer to “2-9. Media Assembly”.)
Procedure

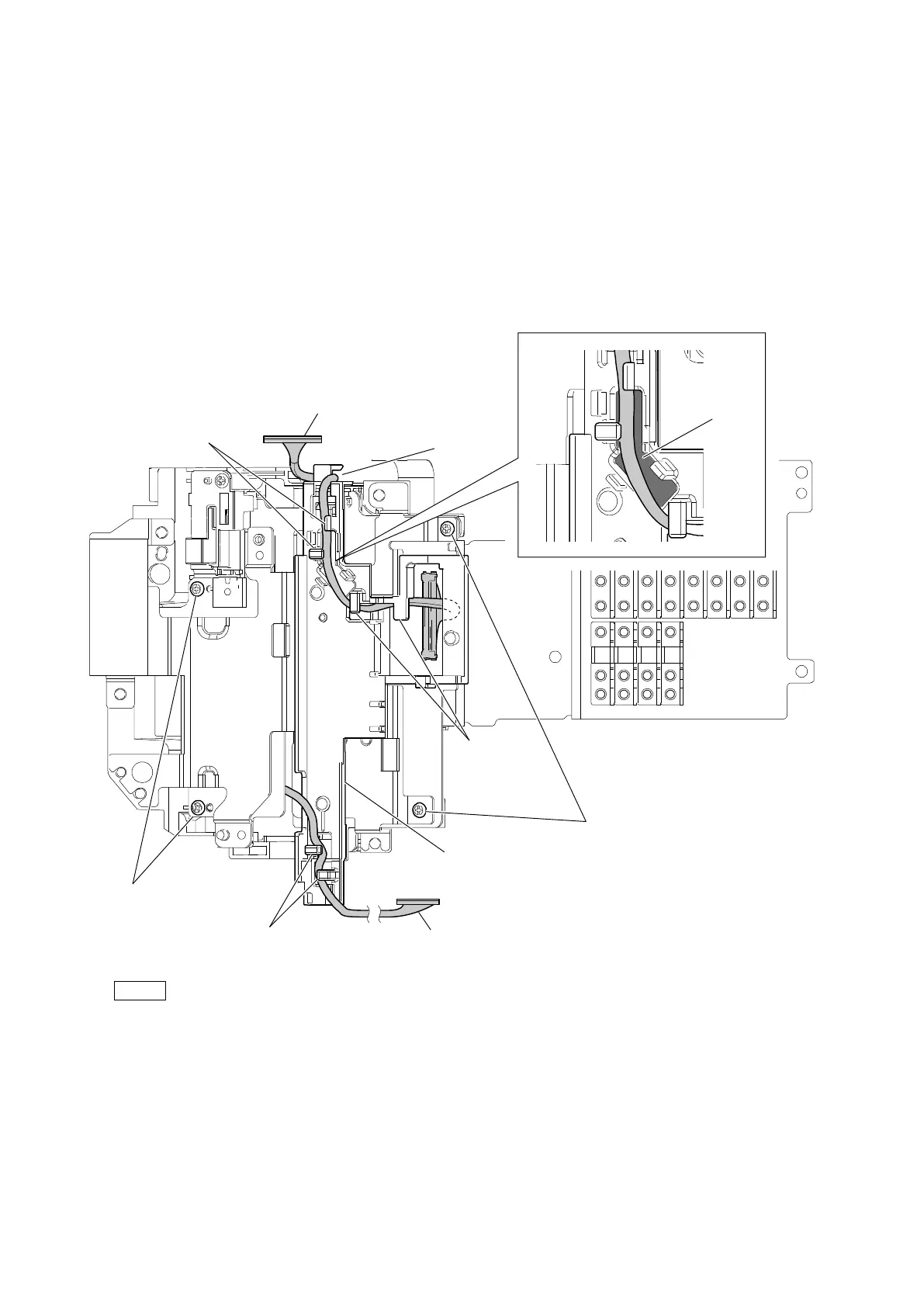

1. Release the two fine-wire coaxial cables from the six hooks and the notch of the media cable clamper.
2. Remove the four screws.
Note
At the time of the installation, arrange the fine-wire coaxial cable (a) as follows。
• The cable is firmly on the hooks.
• The cable is placed in contact with the plate.
Plate
Fine-wire coaxial cable (a)
Hooks
Hooks
Hooks
Notch
PTP2 x 5
PTP2 x 5
Fine-wire coaxial cable
Media cable clamper
To Next Page
