3. Open the SD-74 board assembly.
4. Disconnect the fine-wire coaxial cable from the hole of the media cable clamper.
5. Disconnect the fine-wire coaxial cable from the connector (CN002) on the SD-74 board.
6. Remove the two precision screws, and then remove the SD-74 board.
7. Install the removed parts by reversing the steps of removal.

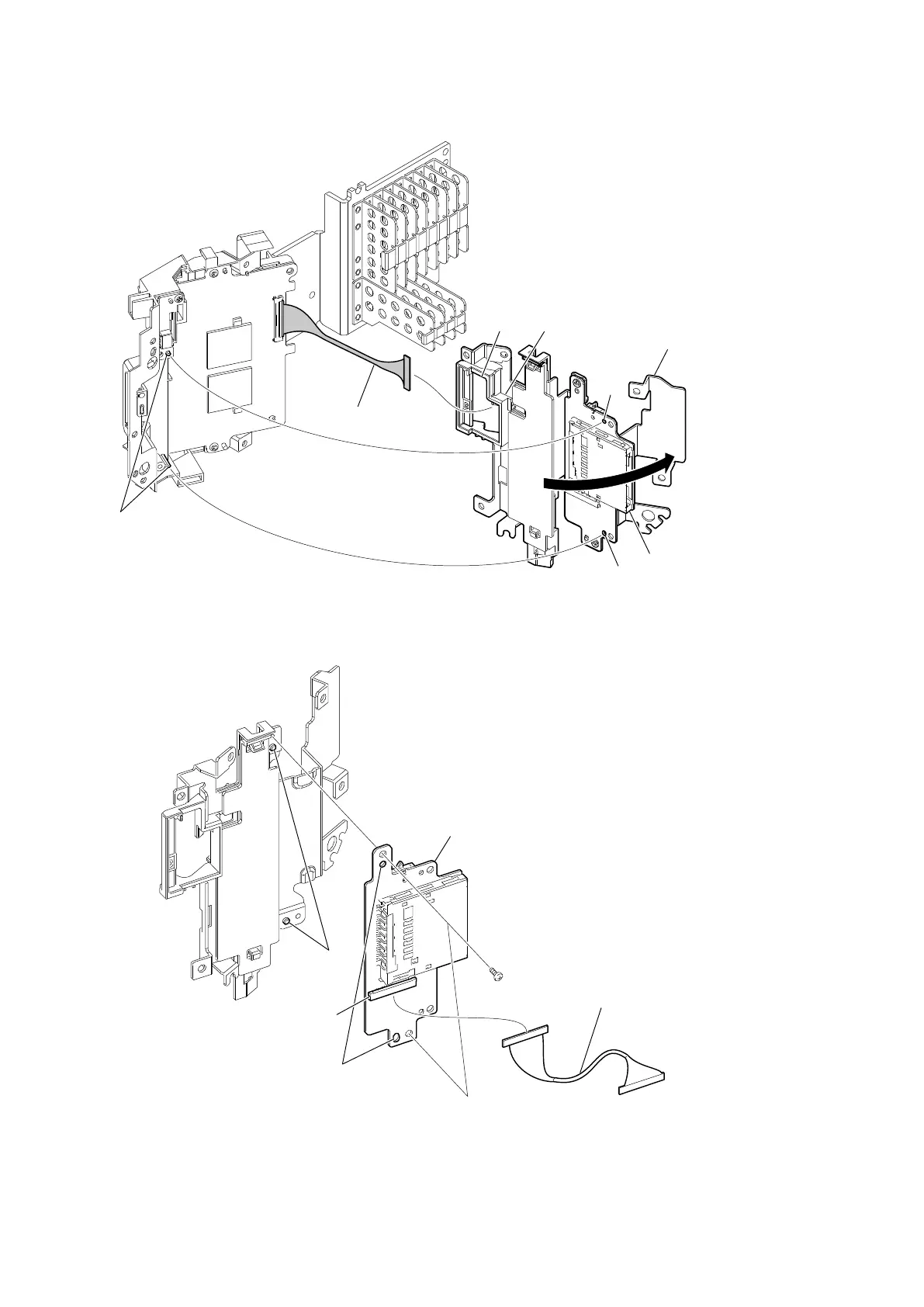

SD-74 board assembly
Hole
Media cable clamper
SD-74 board
Hole
Hole
Bosses
Fine-wire coaxial cable
Holes
Bosses
CN002
Fine-wire coaxial cable
SD-74 board
Precision screws
(P2 x 4)
