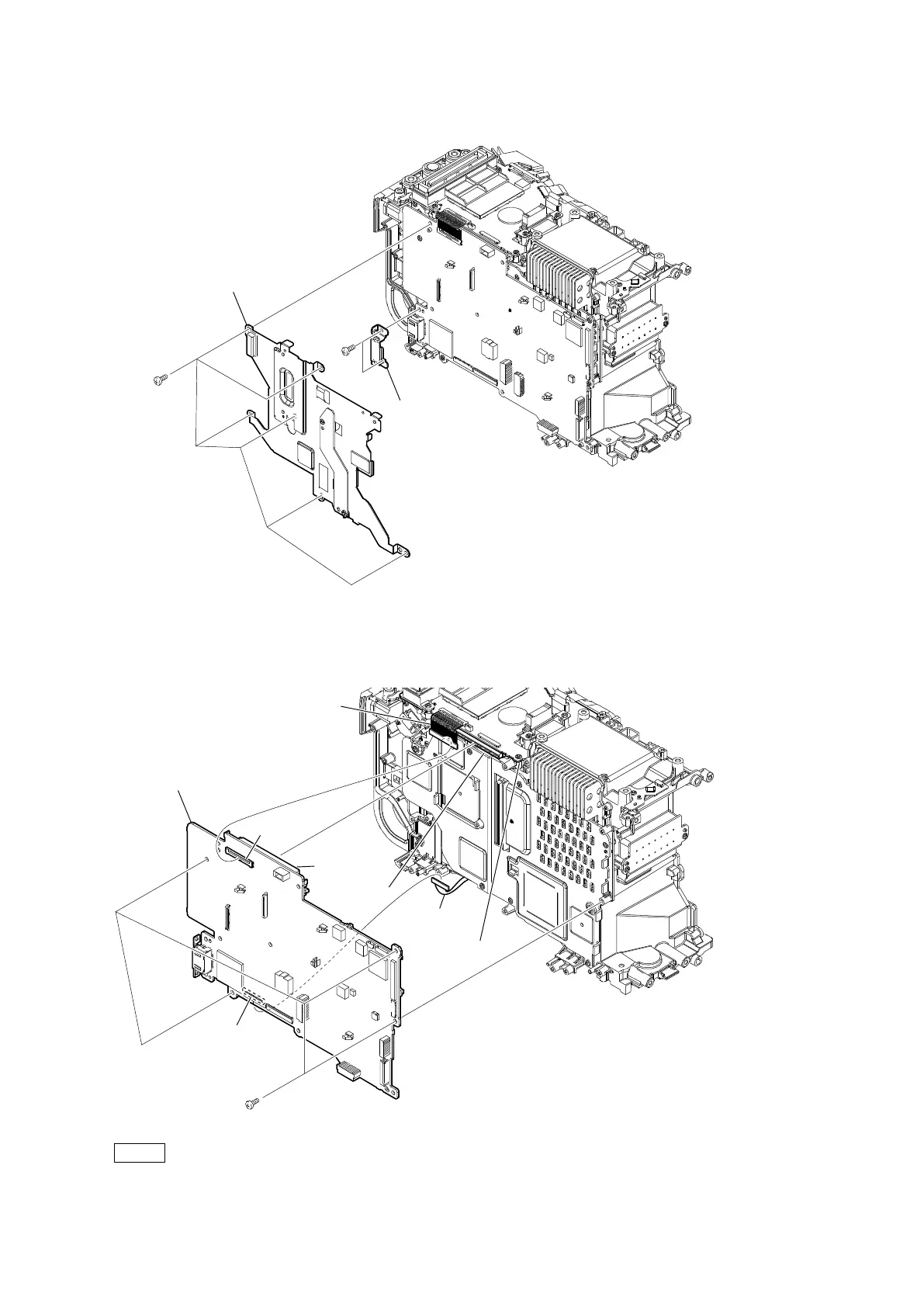

4. Remove the six precision screws, and then remove the DPR shield plate assembly.
5. Remove the two precision screws, and then remove the HDMI plate.
5. Disconnect the fine-wire coaxial cables from the two connectors (CN7401, CN9002) on the DPR-394 board.
6. Remove the four precision screws.
7. Remove the DPR-394 board from the connector (CN0105) on the DIF-278 board.
Note
Before installing the DPR-394 board, make sure that there is no damage or deformation in the contact connector on the DPR-394
board.
Precision screws
(P2 x 4)
Precision screws
(P2 x 4)
DPR shield plate assembly
HDMI plate
Precision screws
(P2 x 4)
DPR-394 board
DIF-278 board
Fine-wire coaxial cable
Fine-wire
coaxial cable
CN7401
CN9002
CN9001
CN0105
To Next Page
