Type B
Disconnecting

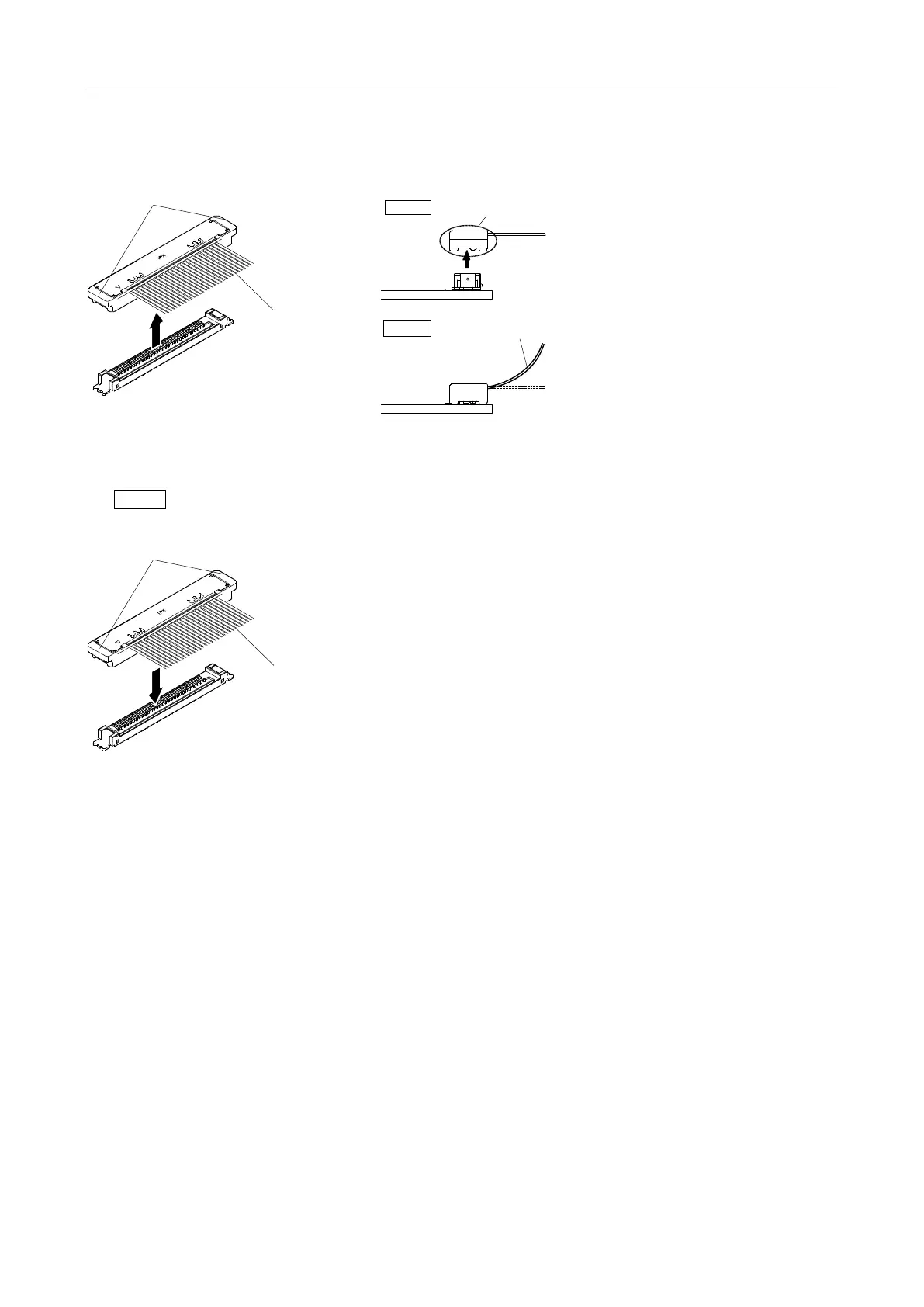

1. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it.
Connecting
1. Insert the connector of fine-wire coaxial cable in the arrow direction to connect it.
Note
Insert the connector firmly as far as it will go.
Correct
Wrong
Fine-wire coaxial cable
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
Both sides of connector
Fine-wire coaxial cable
Both sides of connector
